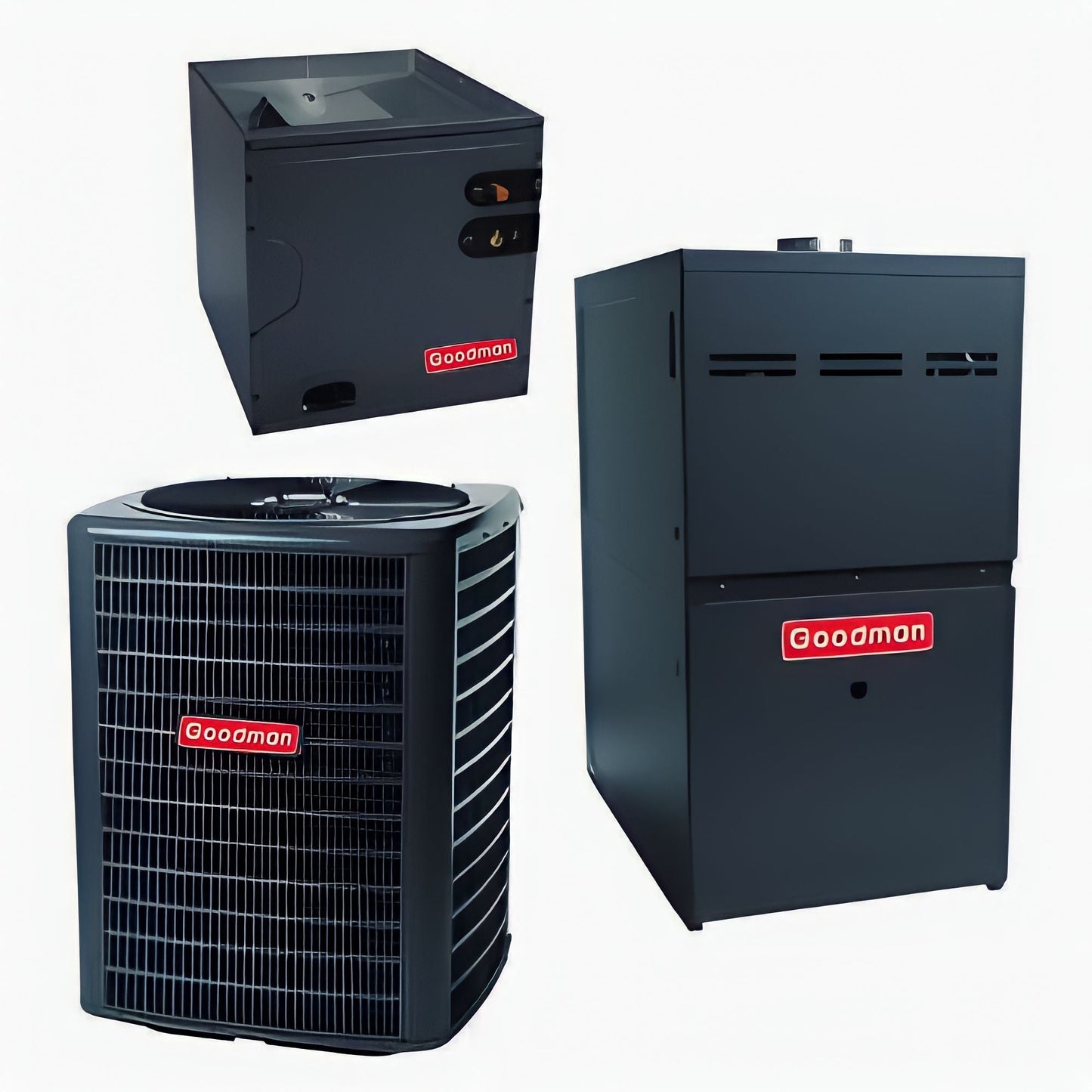

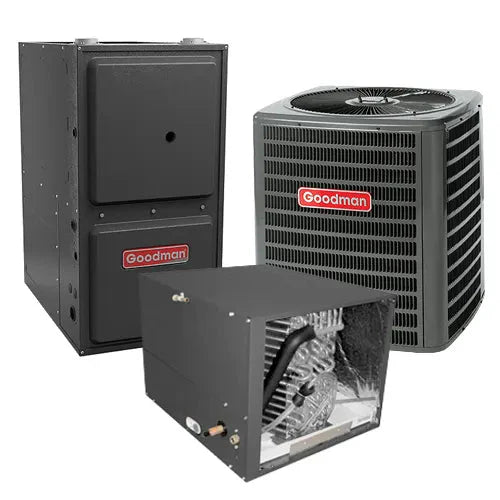

Goodman 1.5 Ton Gas Furnace and AC System Horizontal GM9S960803BN CHPTA1822B4 GSXN401810

Goodman 1.5 Ton Gas Furnace and AC System Horizontal GM9S960803BN CHPTA1822B4 GSXN401810

Regular price $3,843.00 USD
Regular price Sale price $3,843.00 USD
Sale Sold out

PRODUCT:

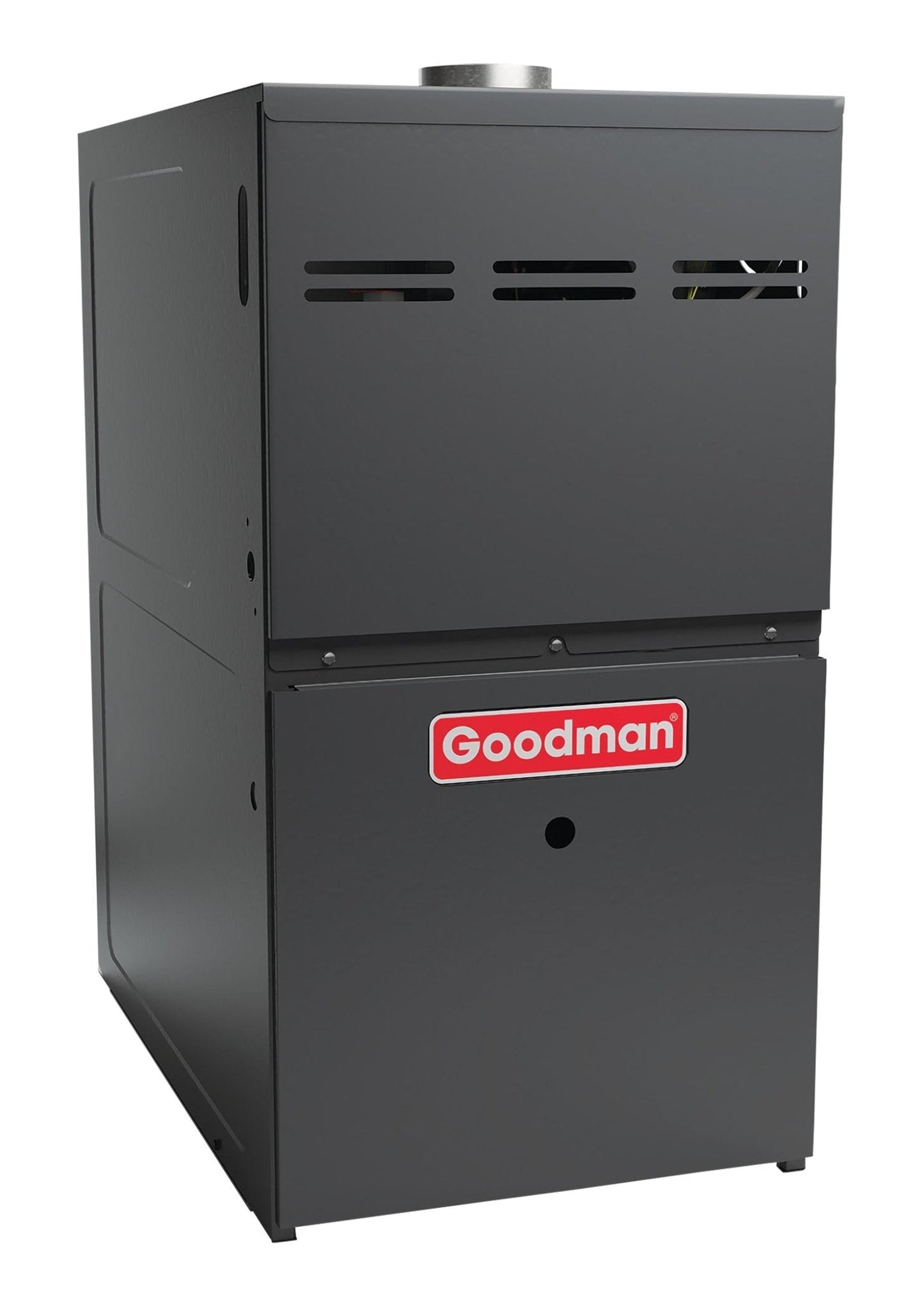

Furnace: GM9S960803BN

Goodman Specifications Sheet Click HERE

Coil:  CHPTA1822B4

Goodman Specifications Sheet Click HERE

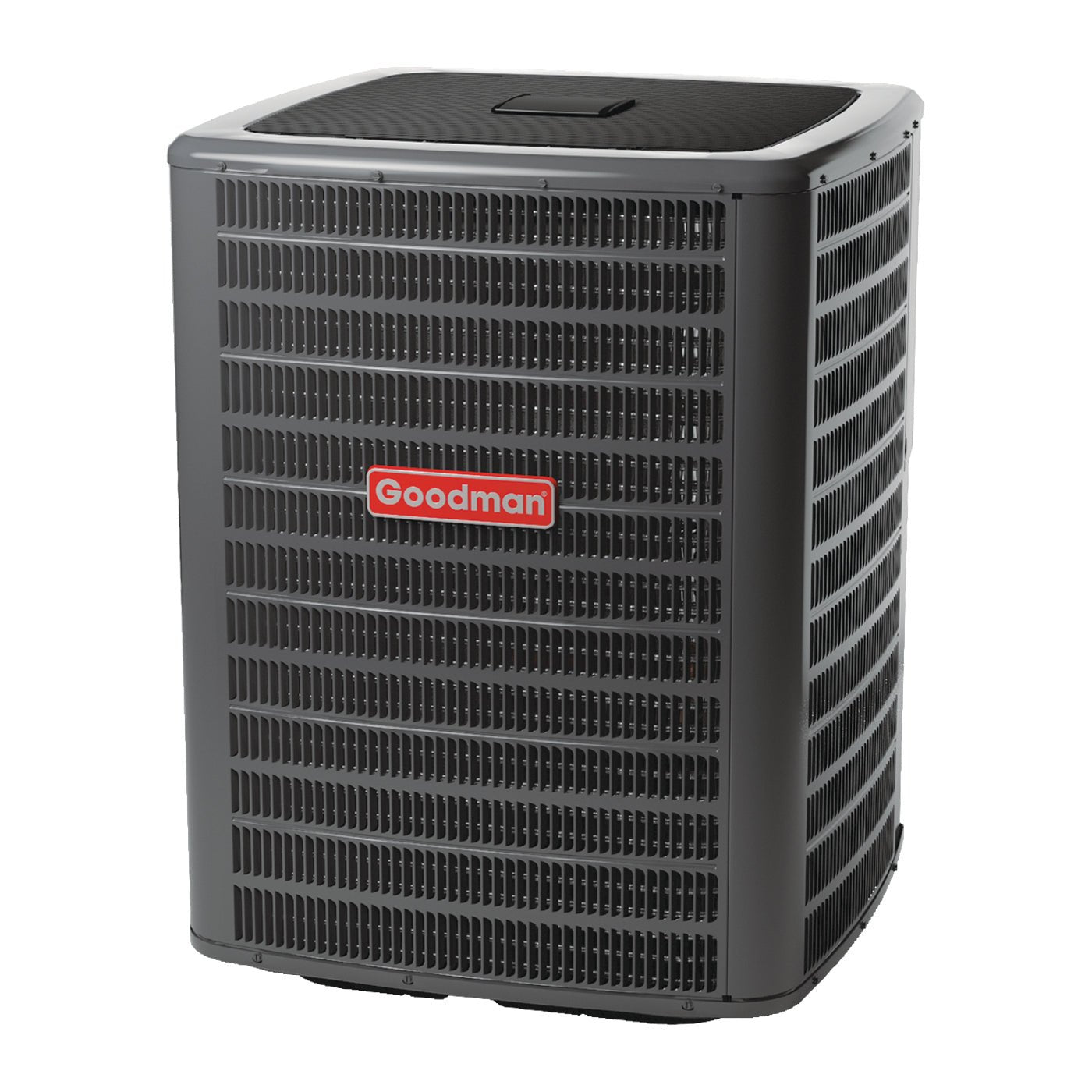

Outdoor: GSXN401810

Goodman Specifications Sheet Click HERE

Specifications:

  • 1. Heavy-duty aluminized-steel tubular heat exchanger
  • 2. Stainless-steel sloped secondary heat exchanger
  • 3. Silicon Nitride igniter
  • 4. Color-coded low-voltage terminals
  • 5. Multi-speed ECM blower motor with continuous fan speed
  • 6. Fault code LED Output
  • 7. AHRI Certified - ETL Listed
  • 8. Energy Star
  • 9. Single-Stage gas Valve
  • 10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  • 11. Low constant fan speed circulates air throughout the home
  • 12. High static
  • 13. All models comply with California Ultra-Low N0x 14 ng/J

Product Attributes

  • AFUE: 96
  • Airflow Rate High Heating: 1200
  • Brand: Goodman
  • Class: Gas Furnace
  • Unit Depth: 28
  • Unit Height: 33-3/8
  • Unit Width: 17-1/2
  • Family Description:  Single-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
  • High-Fire Input Capacity: 80000
  • High-Fire Output Capacity: 76880
  • Min. Circuit:10.3
  • Model Efficiency: 0.96
  • Motor Speed Type: Nine Speed ECM
  • Power Frequency: 60
  • Power Phase: 1
  • Power Voltage: 115

Product Benefits:

  • 1. High reliability and quality
  • 2. Faster condensate water drainage and no unit water leakage
  • 3. Durable and long igniter life
  • 4. Provisions for electronic air cleaner and humidifier
  • 5. Energy Efficient and quiet circulation
  • 6. Self-diagnostic control board with constant memory
  • 7. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
  • 8. Tax Credit
  • 9. Simple installation and setup
  • 10. Easy Connection for EAC and Humidifier
  • 11. Extra option for Air flow
  • 12. High static airflow capability
  • 13. Lower NOx emission

Category: Gas Furnace

Family:  GM9S96

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 114
