Goodman 1.5 Ton 15 SEER High Efficiency Gas Furnace and AC System Upflow GMVM970803BN CHPTA2426B4 GSXN401810

Add this product to cart for ADDITIONAL SAVINGS!

Goodman Furnace Model Number: GMVM970803BN

Goodman Specifications Sheet Click HERE

Goodman Horizontal Cased Evaporator Coil Model Number: CHPTA2426B4

Goodman Specifications Sheet Click HERE

Goodman Air Conditioner R410A Model Number: GSXN401810

Goodman Specifications Sheet Click HERE

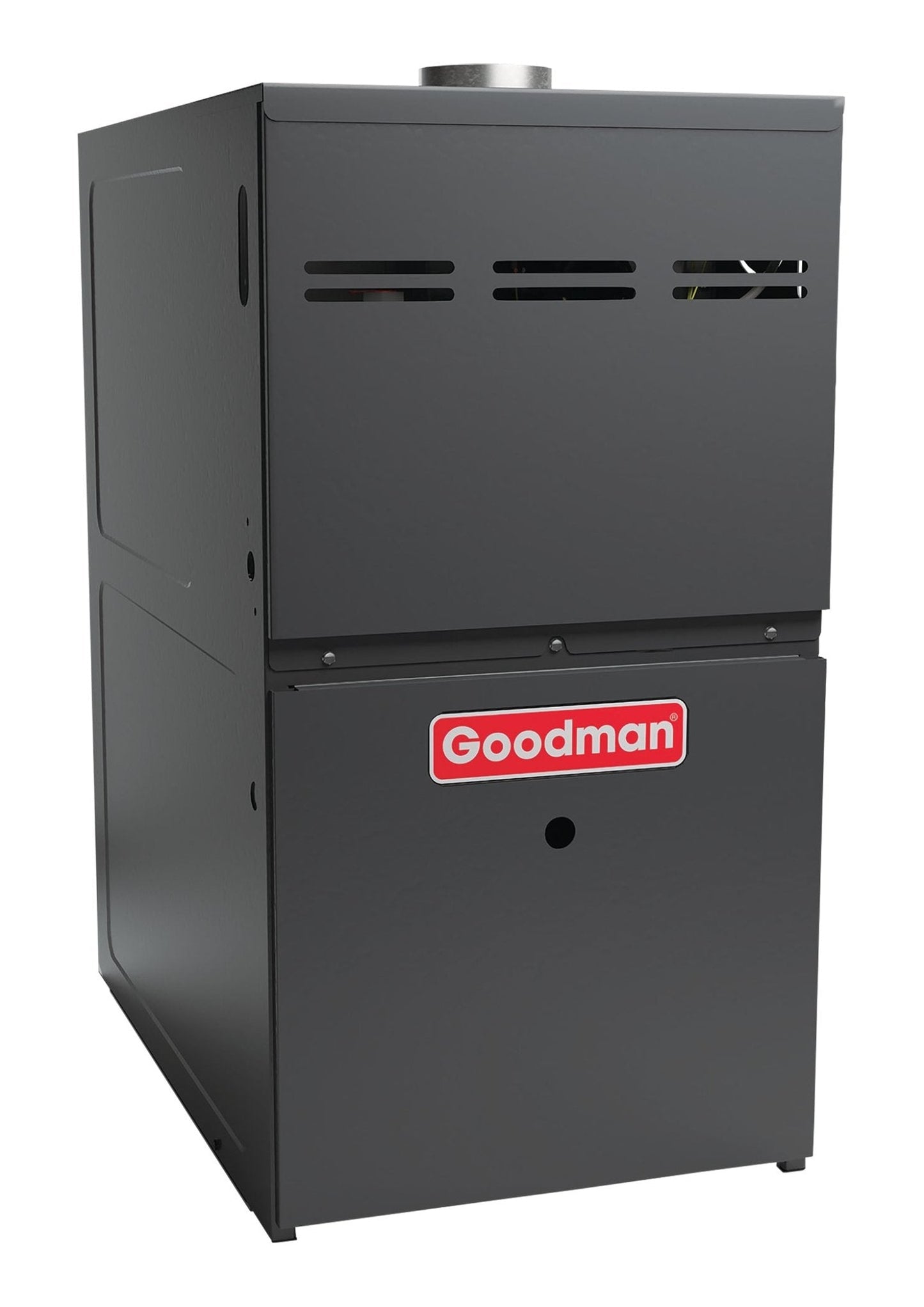

FURNACE: GMVM970803BN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. Efficient and quiet variable-speed Blower
3. Stainless-steel sloped secondary heat exchanger
4. Self-calibrating modulating gas valve
5. Integrated communicating ComfortBridge™ technology
6. Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
7. Silicon Nitride igniter
8. Dual 7-segment display
9. Color-coded low-voltage terminals
10. Modulating gas valve
11. All models comply with California 40 ng/J
12. AHRI Certified, ETL Listed
13. Energy Star
14. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers

Warranty:

Standard warranties apply.

Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - LIFETIME PARTS

HEAT EXCHANGER - 20 YEARS PARTS

HEAT EXCHANGER - 79 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Product Attributes:

AFUE: 98

Brand: Goodman

Cabinet Features:

1. Multi-position installation: upflow, horizontal left or right
2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
3. Easy to install top venting with optional side vent
4. Convenient left or right connection for gas and electrical service
5. Cabinet air leakage (Qleak) less than or equal to 2%
6. Fully insulated heat exchanger and blower section
7. Bottom or side return air applications
8. Heavy-gage steel cabinet with durable finish

Class: Gas Furnace

Unit Depth: 29

Unit Height: 34-1/2

Unit Width: 17-1/2

Family Description:

ComfortBridge™-Compatible Modulating Variable-Speed ECM Gas Furnace up to 98% AFUE

High-Fire Input Capacity: 80000

High-Fire Output Capacity: 58200

Min. Circuit: 8.1

Model Efficiency: 0.97

Motor Speed Type: Variable Speed ECM

NOX Burner Type: Low NOx

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits:

1. High reliability and quality
2. Airflow system gently ramps up or down according to heating or cooling demand and provides better comfort
3. Faster condensate water drainage and no unit water leakage
4. Auto-configure for each installation
5. Capable of using non communicating single-stage thermostats
6. Durable and long igniter life
7. Self-diagnostic control board with constant memory fault code history output
8. Provisions for electronic air cleaner and humidifier
9. Energy efficient and precise comfort
10. Lower NOx emission
11. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
12. Tax Credit
13. Easy Connection for EAC and Humidifier

Category: Gas Furnace

Family: GMVM97

Prop65 Label Required: TRUE

Unit Type: Indoor

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

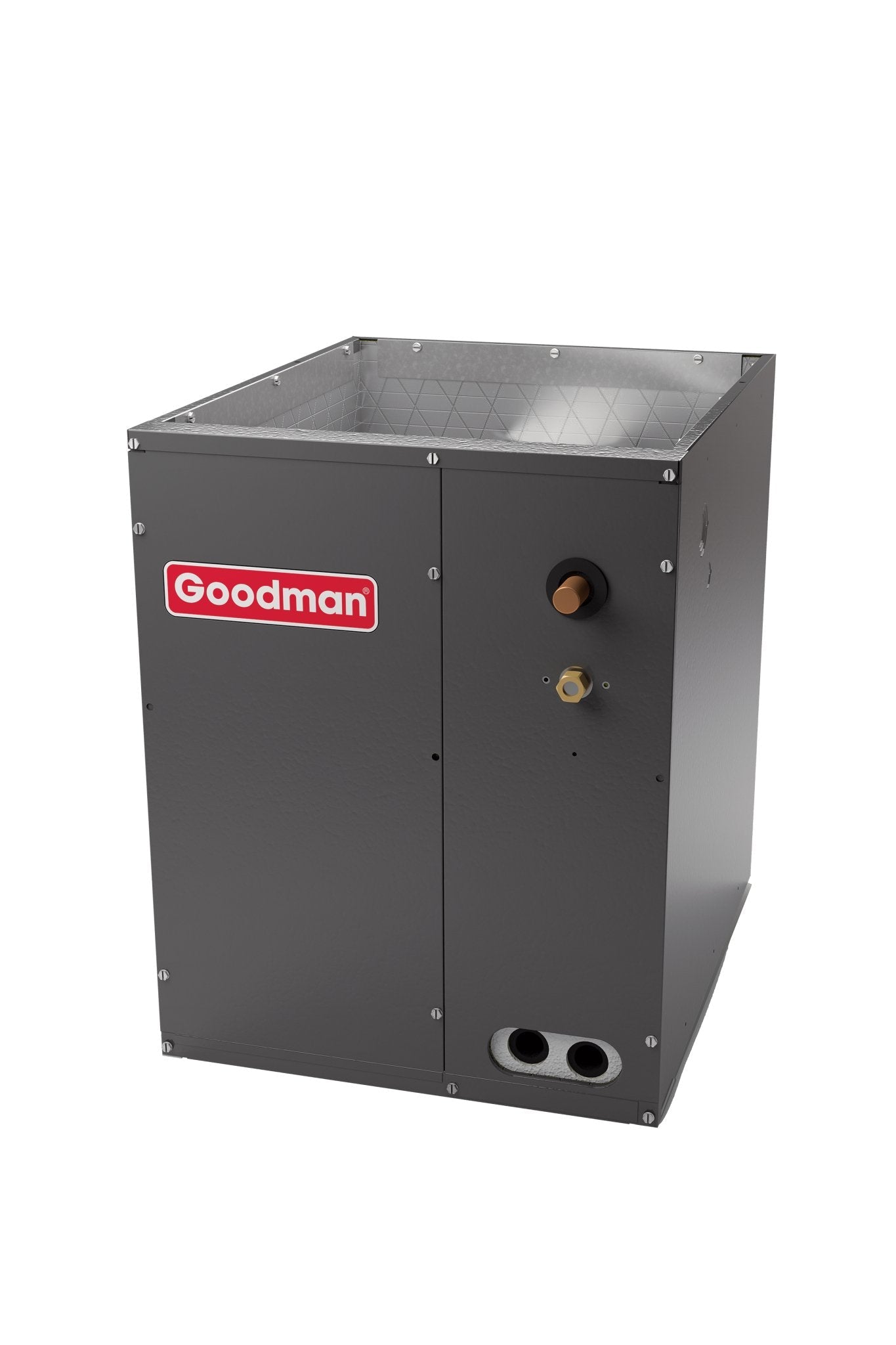

COIL: CHPTA2426B4



Specifications:

Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology

Optimized for use with R-401A refrigerant

Factory-installed thermal expansion valves for cooling applications

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Single-piece access panel with tight seal helps to keep conditioned air from escaping

Seal tight customized suction and liquid grommets for easy installation and removal

21" depth for easier attic access

Horizontal application

AHRI certified

ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: Not Available

Registered parts, multi-family: Not Available

Registered parts, commercial: Not Available

Product Attributes:

Brand: Corporate

Class: Coil

Unit Depth: 26

Unit Height: 20

Unit Width: 24.50

Family Description: CHPTA AlumaFin7™ Evaporator Coil

Product Benefits:

All-aluminum metallurgy provides superior corrosion resistance

Compatible with R-410A or R-22 refrigerant

Multi-louvered aluminum fin design helps support efficient heat transfer

Hydrophilic fins provide superior condensate management

7mm sized grooved aluminum tubing for enhanced turbulence of refrigerant

DecaBDE-free thermoplastic drain pan with secondary drain connections

Galvanized steel texture and parts used to help reduce corrosion on steel components

Category: Coil

Family: CHPTA

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 1.5 tons

Unit Type: Indoor

Unit Weight: 52

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

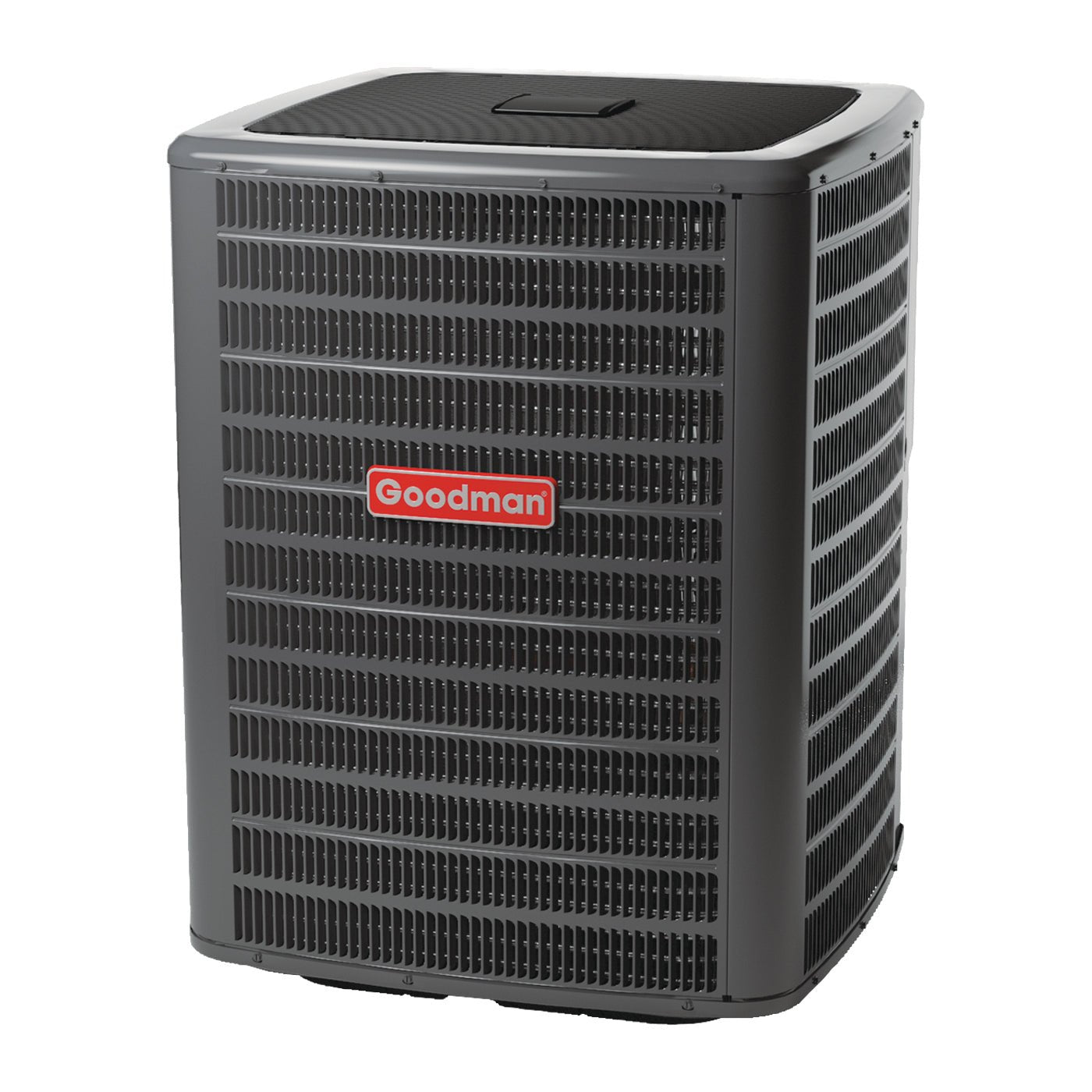

OUTDOOR: GSXN401810



Specifications

Energy-efficient compressor

Copper tube/enahnaced aluminum fin coil-5mm diameter on 1.5-4.0 Ton

Factory-installed filter drier

Fully charged for 15' of tubing length

Service valvess with sweat connections and easy-to-access guage ports

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Tested

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features:

Removable grille-style top design compliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with space provided for field-installed accessories

When properly anchored, meets the 2020 Florida Building Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Compressor Stages: Single Stage

Compressor Type: Rotary

Unit Depth: 26

Unit Height: 27

Unit Width: 26

Family Description: Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton

Max. Voltage: 253

Min. Circuit: 13.8

Min. Voltage: 197

Model Efficiency: 14.3 SEER2

Motor Speed Type: PSC

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXN4

Prop65 Label Required: TRUE

Tonnage: 1.5 tons

Unit Type: Outdoor

Liquid Valve Outside Diameter:  3/8

Suction Valve Outside Diameter: 3/4

Unit Weight: 118
