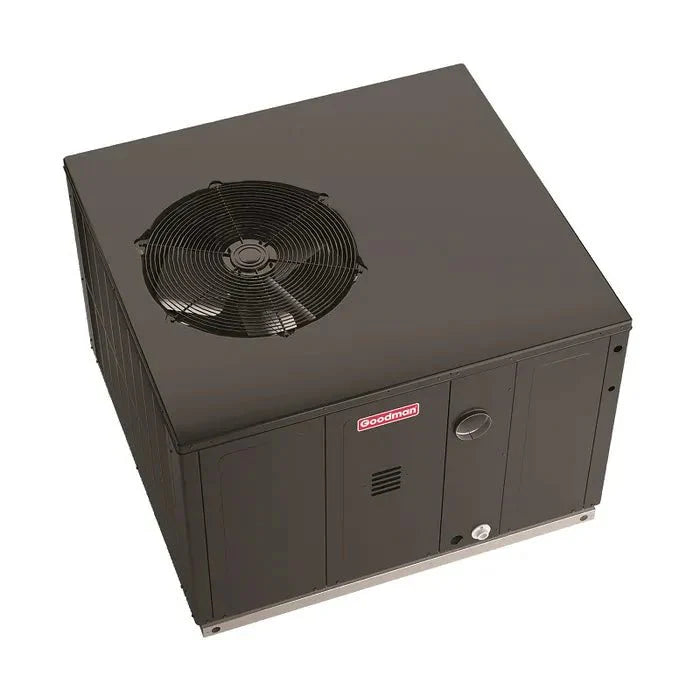

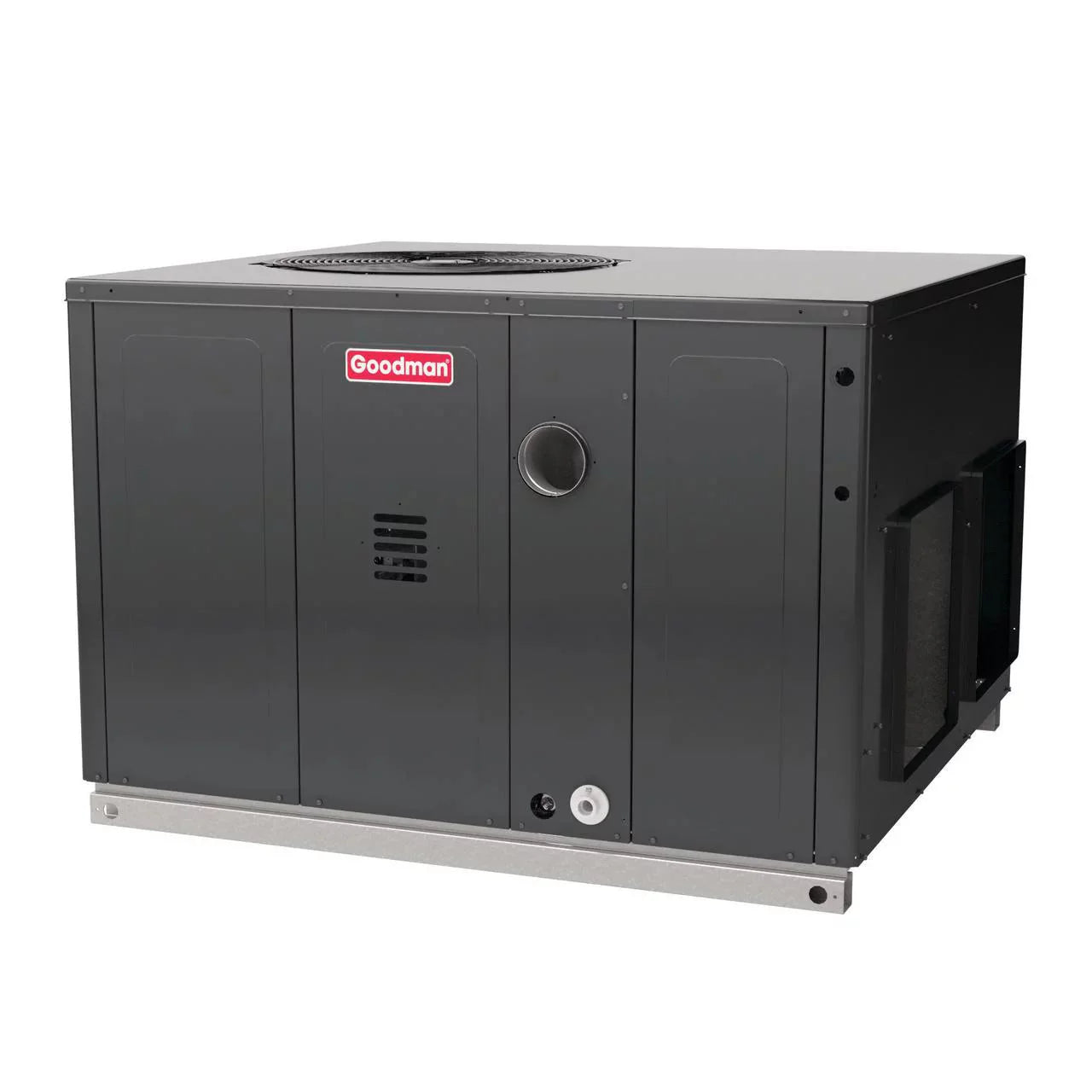

Goodman 2.5 Ton Gas Package Unit 80,000 Btu Furnace 15.2 Seer2 GPGM53008041
Goodman 2.5 Ton Gas Package Unit 80,000 Btu Furnace 15.2 Seer2 GPGM53008041
Couldn't load pickup availability
Model: GPGM53008041
Goodman Specifications Sheet Click HERE
Specifications:
High-efficiency two-stage scroll compressor
Convertible airflow: horizontal or down flow application
Multi-speed ECM indoor blower motor
Copper tube/aluminium fin condenser coil
All-aluminium evaporator coil on 2- to 4-ton units
Aluminium-copper evaporator coil on 5-ton units
Power-assisted combustion
High and low-pressure switch protection
Direct spark ignition system includes a microprocessor- based control for the entire ignition sequence
All blower operation and all safety circuits complete with self-diagnostics
All models comply with California Low NOx emission standards (40ng/J NOx)
This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
AHRI Certified
ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Product Attributes:
Airflow Rate High Cooling: 950
Brand: Goodman
Cabinet Features:
Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant grey powder-paint finish (Sandstone Beige for the 5-ton model)
Aluminium foil-facing internal insulation reinforced with fiberglass scrim

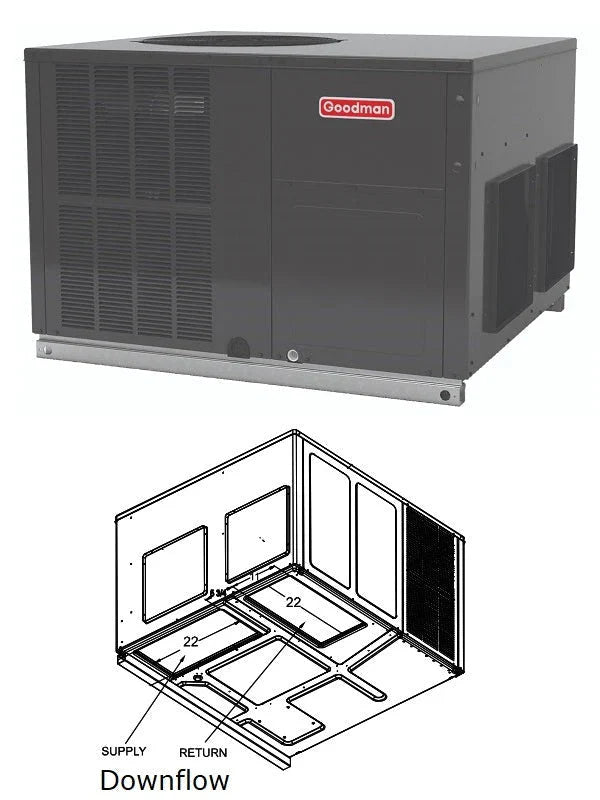

Horizontal or down flow application
Compressor sound blanket
Compressor grommets for vibration isolation
All models fit in a standard-size pick-up truck
Convenient access panels
Bottom, 2-inch high base rails for easier handling
When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Class: Packaged Gas/Electric/Dual
Compressor Stages: Two Stage
Compressor Type: Scroll
Cooling Capacity Rated: 29000
Unit Depth: 51
Unit Height: 32
Unit Width: 47
Family Description: Packaged Gas / Electric, Up to 15.2 SEER2, 2 to 5 Tons
Heating Capacity Rated: 80000
High-Fire Input Capacity: 80000
High-Fire Output Capacity: 64800
Min. Circuit: 21.5
Model Efficiency: 15.2 SEER2
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Packaged Gas/Electric/Dual
Family: GPGM5
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2.5 tons
Unit Type: Outdoor
Unit Weight: 397
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
