Goodman

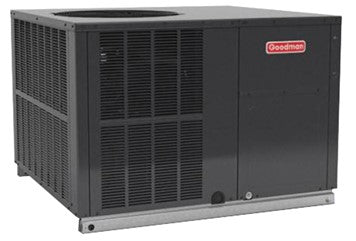

2.5 Ton Goodman Packaged Air Conditioner 13.4 SEER2 Single Stage Downflow/Horizontal GPCM33041

2.5 Ton Goodman Packaged Air Conditioner 13.4 SEER2 Single Stage Downflow/Horizontal GPCM33041

Regular price $3,529.00 USD
Regular price Sale price $3,529.00 USD
Sale Sold out

Model: GPCM33041

Overview for Goodman GPCM33041

Goodman's packaged air conditioners are the perfect cooling solution for nearly any residential or light commercial application. The GPCM3 combines a Goodman condenser, evaporator coil, and Multi-speed ECM blower to provide efficient cooling in a single convenient unit and Goodman's superior coil design helps to ensure efficient energy use. The GPCM3 even includes convenient access panels that make for a quick installation and easy service.
  • Energy-Efficient Compressor
  • This unit utilizes an energy-efficient compressor to provide refrigerant flow.
  • Efficient Circulation
  • The multi-speed ECM blower motor reduces electrical consumption ensuring efficient circulation.
  • Quiet Comfort
  • A sound insulated blower compartment and quiet horizontal discharge provides comfort without disrupting your home.
  • Advanced Coil Design
  • The condenser coil of this packaged unit is designed with aluminum fins and copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • Optional Electric Heat
  • You may purchase an electric heat kit ranging from 5-20kw for field installation.
  • Heavy-Gauge Galvanized-Steel Cabinet
  • This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish and a steel louver coil guard that protects your equipment from wear and tear.
  • Secure Cabinet
  • Fully insulated blower compartment and aluminum foil-facing internal insulation reinforced with fiberglass scrim and convenient access panels.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.


Specifications

General Information
Type: Air Conditioner Packaged Unit
Product Line: GPCM3
Product Category: Packaged HVAC Unit
Operating Mode: Cooling
Refrigerant Type: R-410A
Blower Motor Type: Multi-Speed
Motor Type: ECM
Configuration: Multi-Position
Installation Location: Outdoor
Compressor Stages: Single Stage
DOE Regional Compliance: Nationwide

Performance:
Capacity: 2.5 Tons
Cooling Capacity: 27800 BTU
Maximum Air Flow: 1345 CFM
Minimum Air Flow: 1195 CFM
Maximum Sound Level: 78 dB
SEER2: 13.4
EER2: 10.6

Electrical Data
Voltage: 208/230 Volts
Phase: 1
Frequency: 60 Hz
Minimum Circuit Ampacity: 23 Amps
Recommended Breaker Size: 35 Amps

Dimensions
Product Height: 34 3/4 Inches
Product Width: 47 Inches
Product Depth: 51 Inches
Shipping Weight: 342 Pounds

Certifications
ETL Listed: Yes
Energy Star Listed: No
AHRI Certified: Yes
ISO Certified: Yes
AHRI Reference Number: 210286384

Warranty:

  • Standard warranties apply.
  • Standard parts, residential: ALL PARTS - 5 YEARS PARTS
  • Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
  • Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
  • Registered parts, residential: ALL PARTS - 10 YEARS PARTS
  • Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
  • Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
View full details
