Goodman 3.0 Ton Heat Pump Package Unit 13.4 Seer2 14.2 Seer GPHH33641

Model: GPHH33641

Goodman Packaged Heat Pump Specifications Sheet Click Here

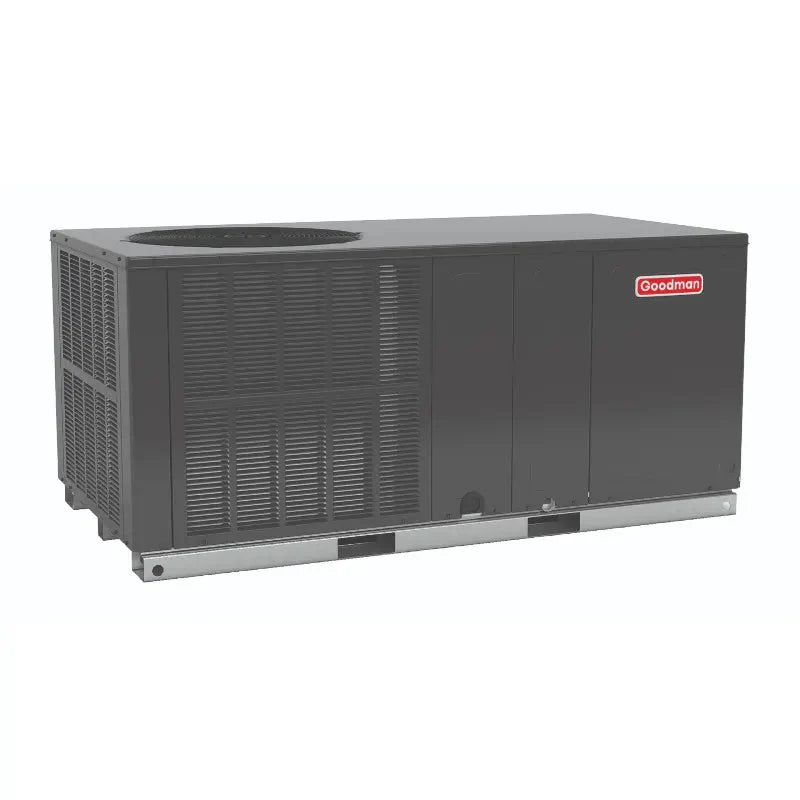

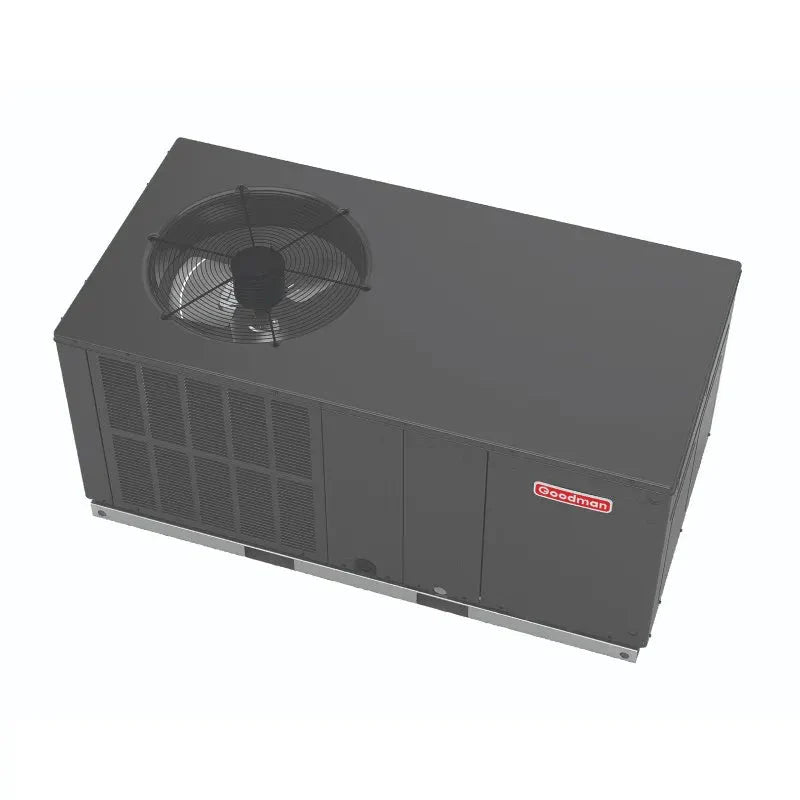

The Goodman GPHH33641 heat pump packaged unit is ready as an inexpensive heating and cooling solution for any all-in-one application. At a basic efficiency rating and a reliability to last a long time, the GPHH33641 lives up to the Goodman name as it offers superior comfort and affordability.

QUICK FACTS

• Can normally cover a small house in average climates
• 3 ton, 13.4 SEER2 heat pump packaged unit
• Horizontal discharge
• Fully charged
• Low sound output

The Goodman GPHH33641 heat pump packaged unit is rated for 3 tons. This size of unit is generally suitable to cover a small house in many climates. Please note that the heating output of this unit cuts out at 30°F. For heating below this temperature, a backup heating kit is required, as a field-installable accessory provided at an additional cost.

At 13.4 SEER2, the Goodman GPHH33641 heat pump has the standard efficiency on the market today, making it installable in all mainland US states. If you would prefer a higher efficiency unit, a 16 SEER system would be around 12% more efficient than this one.

Goodman offers a 10 year parts warranty on the GPHH33641 when its installation follows state and local codes of the installation address and when the unit is registered online through the manufacturer.

• irflow Rate High Cooling:
• • 1200

• Airflow Rate High Heating:
• • 1200

• Brand:
• • Goodman

• Cabinet Features:
• • Heavy-gauge, galvenized-steel cabinet with Architectural Gray power-paint finish
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Fully insulated blower compartment with convenient access panels
  • Meets cavinate air leakage requirements when tested in accordance with ASHRAE standard 193
  • Louvered condenser coil protection
  • One footprint for all tonnages

• Class:
• • Packaged Heat Pump

• Compressor Stages:
• • Single Stage

• Compressor Type:
• • Scroll

• Cooling Capacity Rated:
• • 35200

• Unit Depth:
• • 34

• Unit Height:
• • 32.5

• Unit Width:
• • 66

• Family Description:
• • Packaged Heat Pump 13.4 SEER / 8.0 HSPF 2 to 5 Tons

• Heating Capacity Rated:
• • 32200

• Max. Voltage:
• • 253

• Min. Circuit:
• • 26

• Min. Voltage:
• • 197

• Model Efficiency:
• • 13.4 SEER2

• Motor Speed Type:
• • Multi Speed ECM

• Power Frequency:
• • 60

• Power Phase:
• • 1

• Power Voltage:
• • 208/230

• Product Benefits:
• • Meets the 2023 M1 Test Standards

• Category:
• • Packaged Heat Pump

• Family:
• • GPHH3

• Prop65 Label Required:
• • TRUE

• Refrigerant:
• • R-410A

• Tonnage:
• • 3 tons

• Unit Type:
• • Outdoor

• Unit Weight:
• • 375
