Goodman

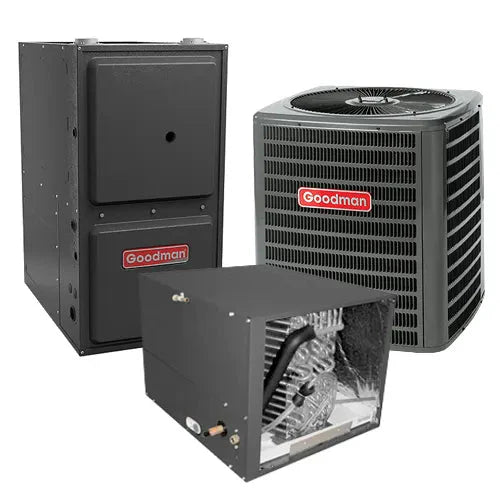

4.0 Ton 120,000 Btu Goodman Furnace 96% Upflow Horizontal Single Stage GM9S961205DN CAPT4961C4 GSXN404810

4.0 Ton 120,000 Btu Goodman Furnace 96% Upflow Horizontal Single Stage GM9S961205DN CAPT4961C4 GSXN404810

Regular price $4,382.00 USD
Regular price Sale price $4,382.00 USD
Sale Sold out

Add this product to cart for ADDITIONAL SAVINGS!

Goodman Furnace Model Number: GM9S961205DN

Goodman Specifications Sheet Click HERE

Goodman Horizontal Cased Evaporator Coil Model Number: CAPT4961C4

Goodman Specifications Sheet Click HERE

Goodman Air Conditioner R410A Model Number: GSXN404810

Goodman Specifications Sheet Click HERE

FURNACE: GM9S961205DN

Specifications:

  1. Heavy-duty aluminized-steel tubular heat exchanger
  2. "Silicon Nitride igniter"
  3. Color-coded low-voltage terminals
  4. Multi-speed ECM blower motor with continuous fan speed
  5. Fault code LED Output
  6. Single-Stage gas Valve
  7. Single-speed inducer draft blower

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - LIFETIME PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS



Product Attributes:

AFUE: 80

Airflow Rate High Heating: 1158

Brand: Goodman

Class: Gas Furnace

Unit Depth: 28

Unit Height: 33-3/8

Unit Width: 21

Family Description: Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE

High-Fire Input Capacity: 80000

High-Fire Output Capacity: 64,000

Min. Circuit: 12.45

Model Efficiency: 0.8

Motor Speed Type: Multi Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits: High reliability and quality

Durable and long-igniter life

Provisions for electronic air cleaner and humidifier

Energy Efficient and quiet circulation

Self-diagnostic control board with constant memory

Simple installation and setup

Quiet and simple operation

Category: Gas Furnace

Family: GM9S80

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 132

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



COIL: CAPT4961C4



Specifications:

All-Aluminum evaporator coil

Suitable for use with R-410A or R-22 refrigerant

Factory-installed thermal expansion valves for cooling and heat pump applications

Vertical application

21" depth for easier attic access

Galvanized, leather grain-embossed finish

Rust resistant, thermoplastic drain pans featuring a low water-retention design

AHRI certified

ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: Not Available

Registered parts, multi-family: Not Available

Registered parts, commercial: Not Available



Product Attributes:

Brand: Corporate

Cabinet Features:

  1. Twenty one inch depth for easier attic access
  2. Split seam front for easy access
  3. Foil-faced insulation covers the internal casing to reduce cabinet condensation
  4. Galvanized, leather grain-embossed finish

Class: Coil

Unit Depth: 21

Unit Height: 30

Unit Width: 24-1/2

Family Description: Cased Upflow/Downflow A-Coil with TXV

Category: Coil

Family: CAPT

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 5 tons

Unit Type: Indoor

Unit Weight: 76

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



OUTDOOR: GSXN404810



Specifications

Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology

Optimized for use with R-401A refrigerant

Factory-installed thermal expansion valves for cooling applications

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Single-piece access panel with tight seal helps to keep conditioned air from escaping

Seal tight customized suction and liquid grommets for easy installation and removal

21" depth for easier attic access

Vertical application

AHRI certified

ETL Listed



Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features: Removable grille-style top designcompliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with spaceprovided for field-installed accessories

When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Unit Depth: 35.5

Unit Height: 39.5

Unit Width: 35.5

Family Description: Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton

Max. Voltage: 253

Min. Circuit: 23.7

Min. Voltage: 197

Model Efficiency: 14.3 SEER2

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXN4

Prop65 Label Required: TRUE

Tonnage: 4 tons

Unit Type: Outdoor

Unit Weight: 248

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)
