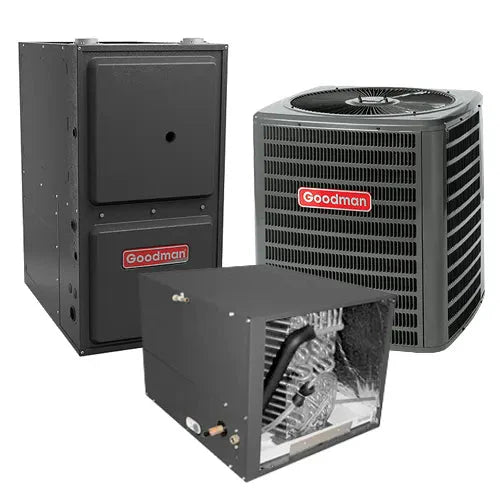

4.0 Ton 120,000 Btu Goodman Furnace 80% Upflow Horizontal Two Stage GM9C801205DN CAPT4961D4 GSXN404810
4.0 Ton 120,000 Btu Goodman Furnace 80% Upflow Horizontal Two Stage GM9C801205DN CAPT4961D4 GSXN404810
Couldn't load pickup availability
Add this product to cart for ADDITIONAL SAVINGS!
Goodman Furnace Model Number: GM9C801205DN
Goodman Specifications Sheet Click HERE
Goodman Horizontal Cased Evaporator Coil Model Number: CAPT4961D4
Goodman Specifications Sheet Click HERE
Goodman Air Conditioner R410A Model Number: GSXN404810
Goodman Specifications Sheet Click HERE
FURNACE: GM9C801205DN
Specifications:
Heavy-duty aluminized-steel tubular heat exchanger
"Silicon Nitride igniter"
Color-coded low-voltage terminals
Two-Stage gas valve
Multi-speed ECM blower motor with continuous fan speed
Fault code LED Output
Two-stage gas valve
Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Product Attributes:
AFUE: 80
Brand: Goodman
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 21
Family Description: Two-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
High-Fire Input Capacity: 120000
High-Fire Output Capacity: 64,000
Min. Circuit: 12.45
Model Efficiency: 0.8
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits: High reliability and quality
Durable and long igniter life
Provisions for electronic air cleaner and humidifier
Quiet and Economical heating
Energy Efficient and quiet circulation
Self-diagnostic control board with constant memory
Operates on two-stage or single-stage thermostats
Easy Connection for EAC and Humidifier
Category: Gas Furnace
Family: GM9C80
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 129
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
COIL: CAPT4961D4
Specifications:
All-Aluminum evaporator coil
Suitable for use with R-410A or R-22 refrigerant
Factory-installed thermal expansion valves for cooling and heat pump applications
Vertical application
21" depth for easier attic access
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pans featuring a low water-retention design
AHRI certified
ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: Not Available
Registered parts, multi-family: Not Available
Registered parts, commercial: Not Available
Product Attributes:
Brand: Corporate
Cabinet Features:
- Twenty one inch depth for easier attic access
- Split seam front for easy access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
Class: Coil
Unit Depth: 21
Unit Height: 30
Unit Width: 24-1/2
Family Description: Cased Upflow/Downflow A-Coil with TXV
Category: Coil
Family: CAPT
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 5 tons
Unit Type: Indoor
Unit Weight: 76
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
OUTDOOR: GSXN404810
Specifications
Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology
Optimized for use with R-401A refrigerant
Factory-installed thermal expansion valves for cooling applications
Rust resistant, thermoplastic drain pans featuring a low water-retention design
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Single-piece access panel with tight seal helps to keep conditioned air from escaping
Seal tight customized suction and liquid grommets for easy installation and removal
21" depth for easier attic access
Vertical application
AHRI certified
ETL Listed
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Brand: Goodman
Cabinet Features: Removable grille-style top designcompliant with UL 60335-2-40
Venturi for increased velocity of airflow
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Steel louver coil guard
Rust-resistant coated screws
Single-panel access to controls with spaceprovided for field-installed accessories
When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Class: Split Air Conditioner
Unit Depth: 35.5
Unit Height: 39.5
Unit Width: 35.5
Family Description: Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton
Max. Voltage: 253
Min. Circuit: 23.7
Min. Voltage: 197
Model Efficiency: 14.3 SEER2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Air Conditioner
Family: GSXN4
Prop65 Label Required: TRUE
Tonnage: 4 tons
Unit Type: Outdoor
Unit Weight: 248
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
