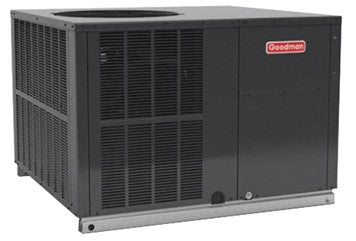

4.0 Ton Goodman Packaged Air Conditioner 14.3 SEER2 Single Stage Downflow/Horizontal GPCM34841

Model: GPCM34841A

Specifications:

• Energy-efficient compressor ECM indoor blower motor Convertible airflow: horizontal or downflow Copper tube/aluminum fin condenser coil All-Aluminum evaporator coil totally enclosed, permanently lubricated condenser fan motor Field-installed electric heat kits available AHRI Certified
• ETL Listed

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• Registered parts, residential: ALL PARTS - 10 YEARS PARTS
• Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 5 YEARS PARTS

Product Attributes:

Airflow Rate High Cooling: 1600
Brand: Goodman
Cabinet Features:
Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
Fully insulated blower compartment with convenient access panels
Louvered condenser coil protection
One footprint
two heights
Class: Packaged Air Conditioner
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 44500
Unit Depth: 51
Unit Height: 42.75
Unit Width: 47
Family Description: Packaged Air Conditioner 2 through 5 Tons / 13.4 SEER2
High-Fire Output Capacity: N/A
Max. Voltage: 253
Min. Circuit: 31.7
Min. Voltage: 197
Model Efficiency: 14.3 SEER2
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Packaged Air Conditioner
Family: GPCM3
Product ID Bar Code: GPCM34841
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 4.0 tons
Unit Type: Outdoor

Documents:

Specification Sheet
