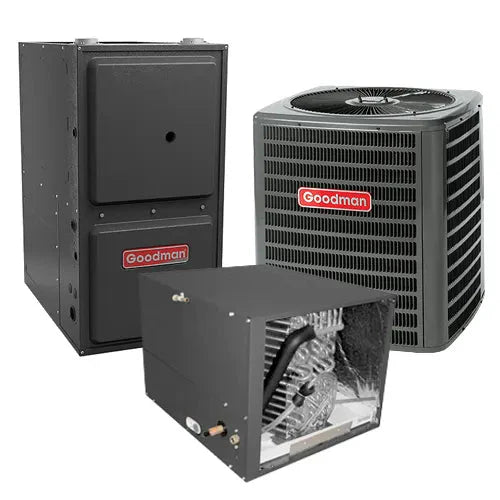

Goodman 5.0 Ton 13.8 SEER Air Conditioner System CAPT4961D4 GSXN406010

Name: Goodman 5.0 Ton 13.8 SEER Air Conditioner System CAPT4961D4 GSXN406010
Brand: Goodman
SKU: 208786176
Price: 3540.00 USD
Availability: InStock

$3,540.00 USD

Sale Sold out

Quantity

Model: CAPT4961D4

Goodman Specifications Sheet Click HERE

Model: GSXN406010

Goodman Specifications Sheet Click HERE

COIL: CAPT4961D4

Specifications:

All-Aluminum evaporator coil

Suitable for use with R-410A or R-22 refrigerant

Factory-installed thermal expansion valves for cooling and heat pump applications

Vertical application

21" depth for easier attic access

Galvanized, leather grain-embossed finish

Rust resistant, thermoplastic drain pans featuring a low water-retention design

AHRI certified

ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Brand: Corporate

Cabinet Features:

Twenty one inch depth for easier attic access
Split seam front for easy access
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish

Class: Coil

Unit Depth: 21

Unit Height: 30

Unit Width: 24-1/2

Family Description: Cased Upflow/Downflow A-Coil with TXV

Category: Coil

Family: CAPT

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 5 tons

Unit Type: Indoor

Unit Weight: 76

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

OUTDOOR: GSXN406010

Specifications

Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology

Optimized for use with R-401A refrigerant

Factory-installed thermal expansion valves for cooling applications

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Single-piece access panel with tight seal helps to keep conditioned air from escaping

Seal tight customized suction and liquid grommets for easy installation and removal

21" depth for easier attic access

Vertical application

AHRI certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features: Removable grille-style top designcompliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with spaceprovided for field-installed accessories

When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Unit Depth: 35.5

Unit Height: 39.5

Unit Width: 35.5

Family Description: Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton

Max. Voltage: 253

Min. Circuit: 23.7

Min. Voltage: 197

Model Efficiency: 14.3 SEER2

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXN4
