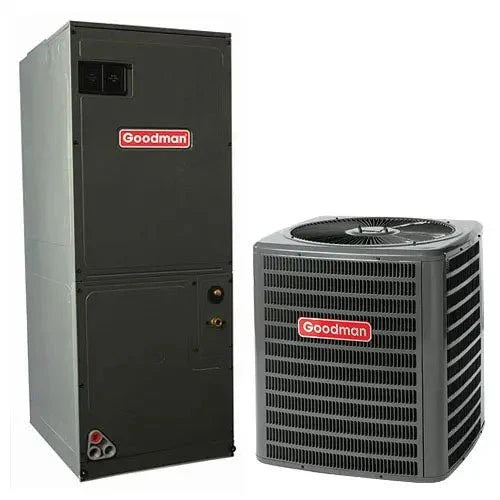

Goodman 5.0 Ton 14 SEER Single Stage Heat Pump Upflow AMST60DU1400 GVZC200601

Name: Goodman 5.0 Ton 14 SEER Single Stage Heat Pump Upflow AMST60DU1400 GVZC200601
Brand: Goodman
SKU: 205976190
Price: 11929.00 USD
Availability: InStock

$11,929.00 USD

Sale Sold out

Quantity

Model: AMST60DU1400

Goodman Specifications Sheet Click HERE

Model: GVZC200601

Goodman Specifications Sheet Click HERE

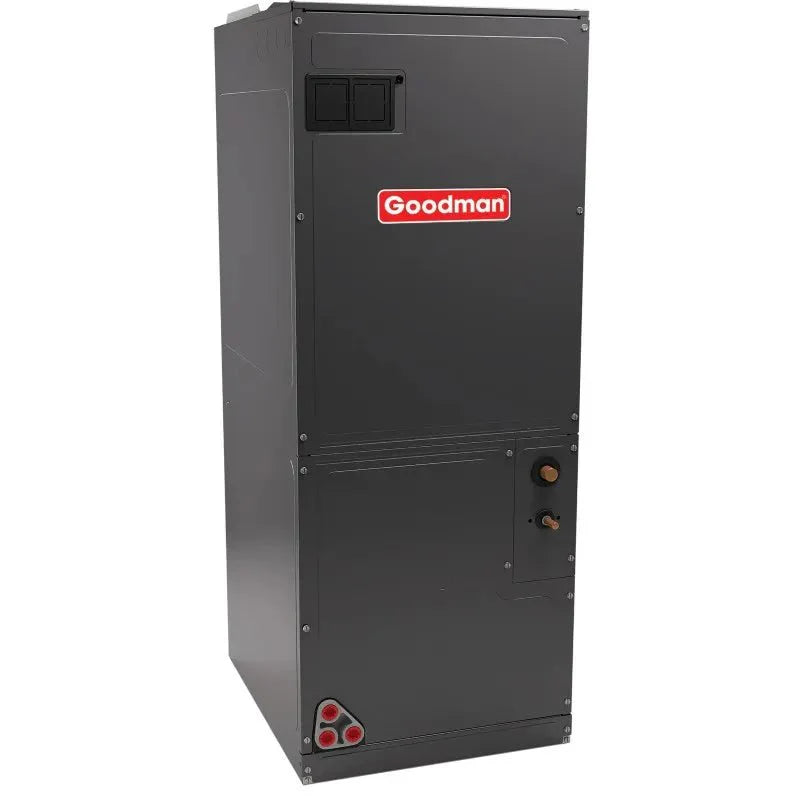

Furnace: AMST60DU1400

Specifications:

Electronic Expansion Valve (EEV) for cooling and heat pump applications.
Variable-speed ECM blower motor
Suitable for operation with inverter-driven products
ComfortNet Communicating System compatible
Provides constant CFM over a wide range of static pressure conditions independent of duct system
CFM indicator
Provides adjustable low CFM for efficient fan-only operation
All-aluminum evaporator coil
Fault recall of six most recent faults
Improved humidity and comfort control

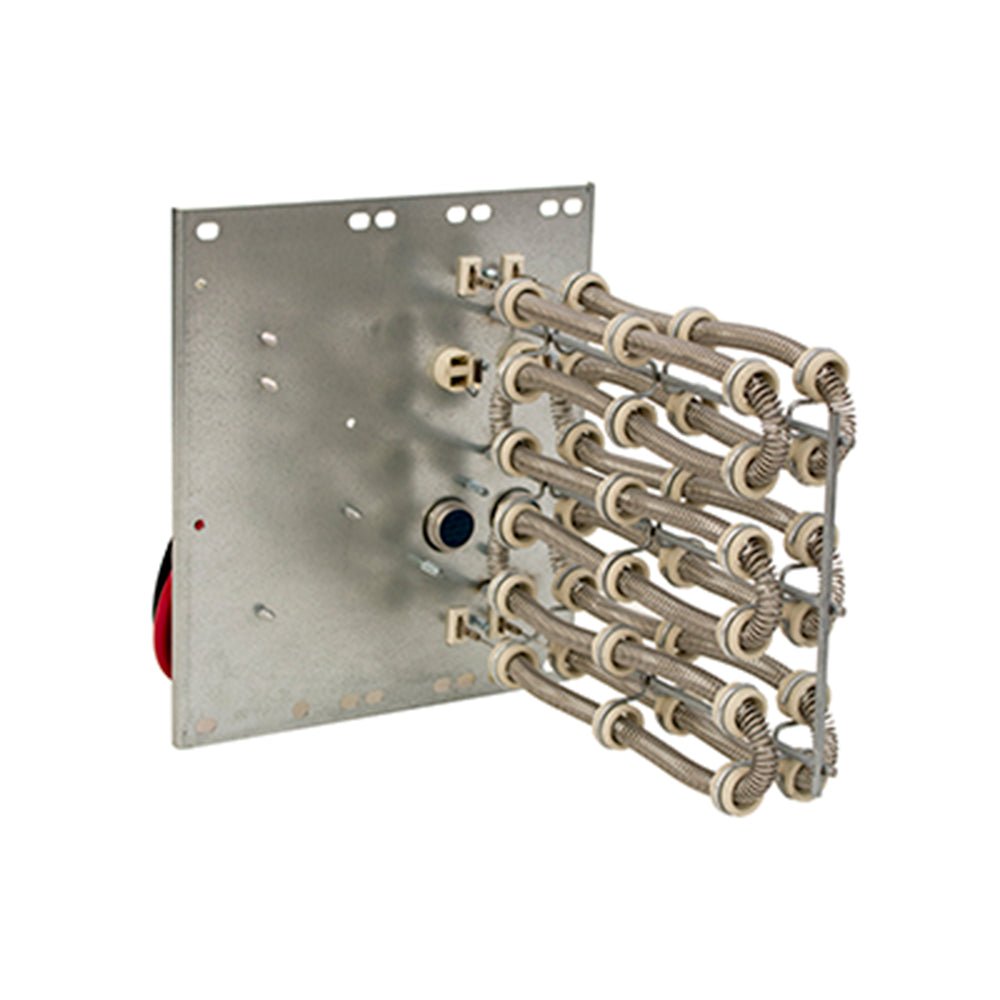

5 kW – 25 kW electric heater kits

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Brand: Corporate

Cabinet Features:

Rigid SmartFrame™ cabinet
Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
Horizontal or vertical configuration capabilities
21" depth for easier attic access
DecaBDE-free thermoplastic drain pan with secondary drain connections
Screw-less sides and back helps to reduce condensation when installed in humid locations
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish

10 .Glue-less cabinet insulation retention

Class: Air Handler

Unit Depth: 21

Unit Height: 58

Unit Width: 24-1/2

Family Description: Multi-Position, Variable-Speed ECM-Based Air Handler with Internal EEV, ComfortBridge™ and Inverter Compatible 2 to 5 Tons

Max. Voltage: 253

Min. Circuit: 8.6/8.6

Min. Voltage: 197

Motor Speed Type: Variable Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits:

Electronic Expansion Valve (EEV) for cooling and heat pump applications.
Variable-speed ECM blower motor
Suitable for operation with inverter-driven products
ComfortNet Communicating System compatible
Provides constant CFM over a wide range of static pressure conditions independent of duct system
CFM indicator
Provides adjustable low CFM for efficient fan-only operation
Improved humidity and comfort control
All-aluminum evaporator coil
Fault recall of six most recent faults
AHRI certified

ETL listed

Rigid SmartFrame™ cabinet
Horizontal or vertical configuration capabilities
DecaBDE-free thermoplastic drain pan with secondary drain connections
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Field Installed 5 kW – 25 kW electric heater kits available

Category: Air Handler

Family: AVPEC

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 5 tons

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

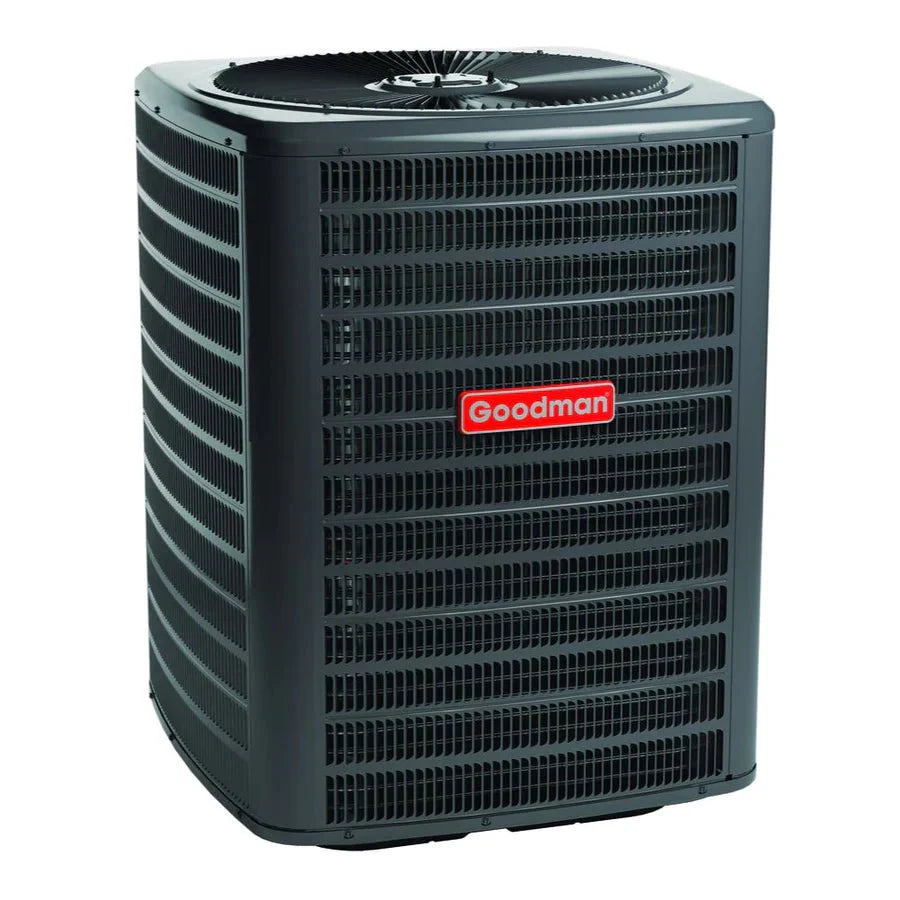

Outdoor: GVZC200601

Specifications:

High-Efficiency scroll compressor

SmartShift® technology to ensure quiet reliable defrost

Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T

Factory-installed suction-line accumulator

Factory-installed compressor crankcase heater

Factory-installed high-capacity muffler

High- and low-pressure switches

Service valves with sweat connections and easy access to gauge ports

Fully charged for 15' of tubing length

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features: Removable grille style top design compliant with UL 60335-2-40

Steel louver coil guard

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval

Top and side maintenance access

Single panel access to controls with space provided for field-installed accessories

When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

Class: Split Heat Pump

Compressor Stages: Single Stage

Compressor Type: Scroll

Cooling Capacity Rated: 28400

Unit Depth: 35.5

Unit Height: 39.5

Unit Width: 35.5

Family Description: High-Efficiency Split System Heat Pump Up to 15.2 SEER2 & 7.8 HSPF2

Heating Capacity Rated: 28400

Max. Voltage: 253

Min. Circuit: 18.6

Min. Voltage: 197

Model Efficiency: 15.2 SEER2

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Heat Pump

Family: GSZH5
