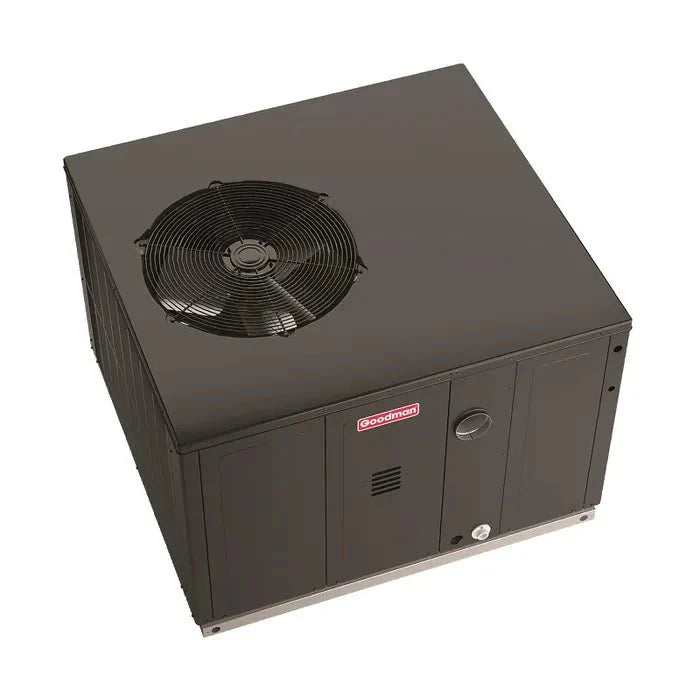

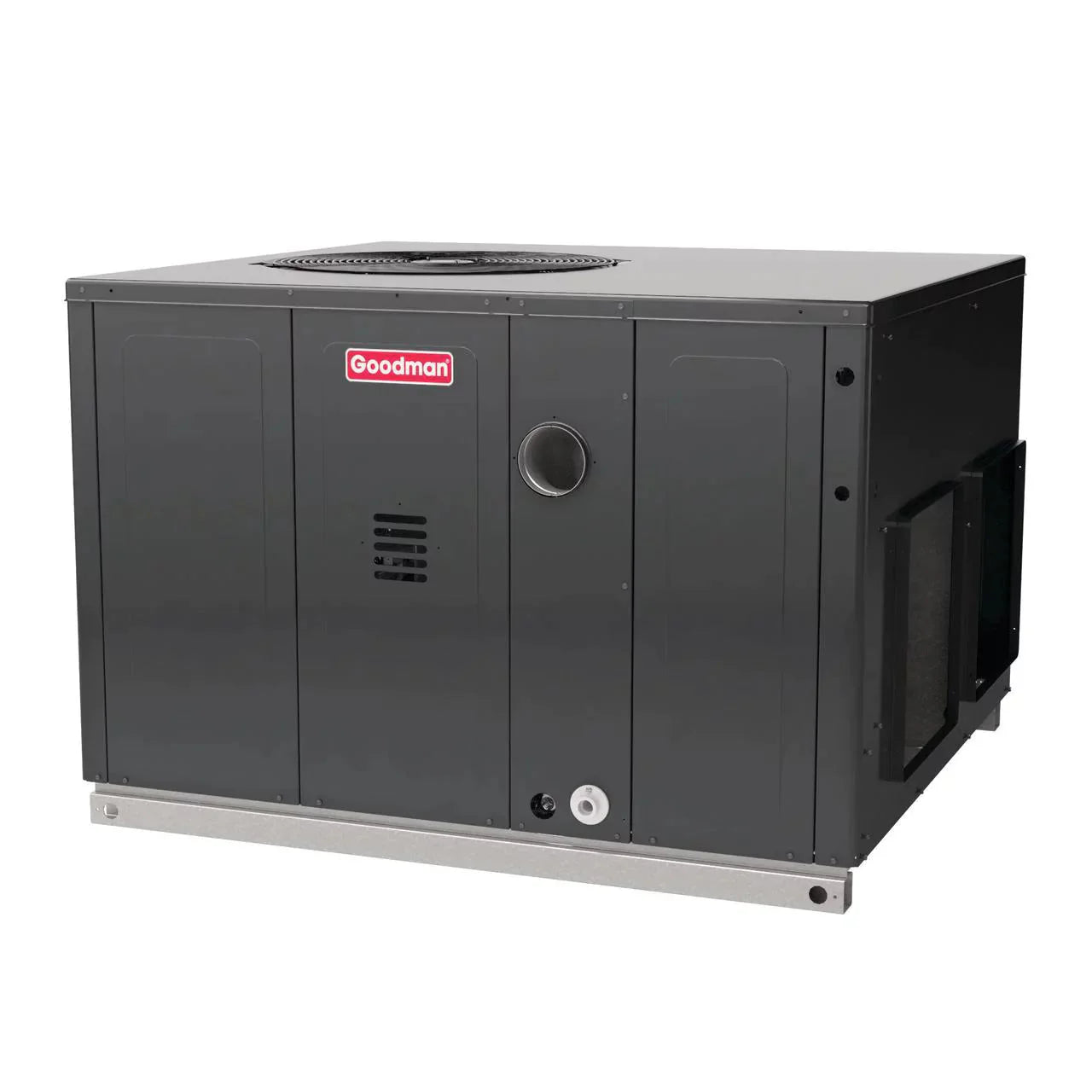

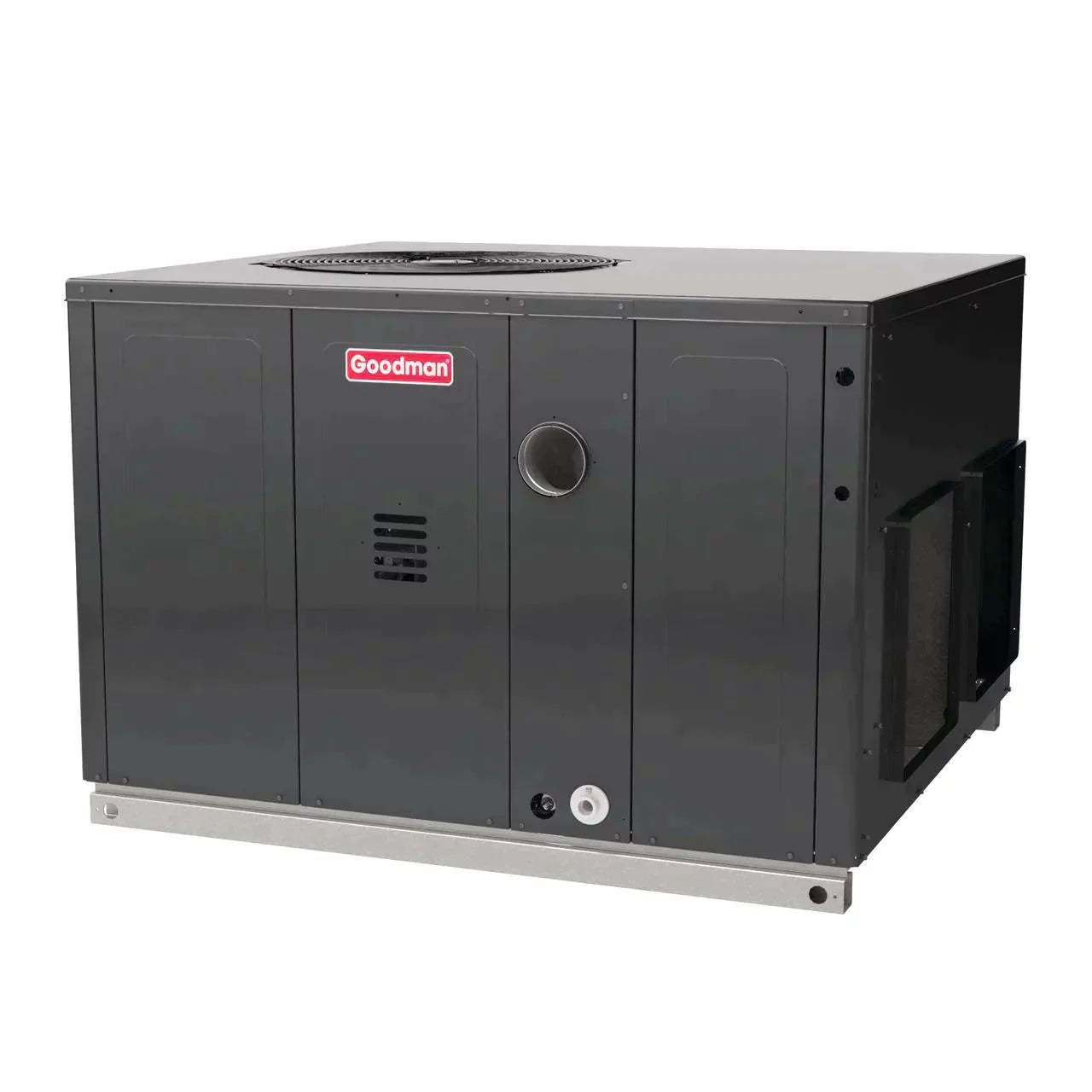

Goodman 5.0 Ton Gas Package Unit 120,000 Btu Furnace 13.4 Seer2 GPGM36112041

The Goodman GPGM36112041 is a gas heat and electric AC packaged unit, ready for any application where it is not convenient to have an indoor furnace or air handler. At 13.4 SEER2 and 81% AFUE, the GPGM36112041 is an inexpensive option with a standard efficiency designed for rooftop and next-to-building applications.

QUICK FACTS

• 5 ton, 120,000 BTU packaged unit
• 13.4 SEER2, 81% AFUE
• Downflow or horizontal discharge installation options
• Fully charged and ready to install
• Low sound output
• Low NOx compliant

5 ton, 120,000 BTU

The Goodman GPG1461120M41 provides 5 tons of electric air conditioning as well as 120,000 BTU of natural gas heating to your home, providing comfort to your home year-round. While it comes from the factory with a natural gas valve setup, a propane conversion kit is available at an additional cost to be field-installed.

13.4 SEER2, 81% AFUE

On the air conditioning side, the GPGM36112041 packaged unit is 13.4 SEER2, or the national standard efficiency for AC units. The heating side of the unit is 81% efficient, meaning that 81 cents on every dollar that you spend on your home’s heating gas bill will be used to heat your home, and the remaining 19 cents is lost to normal heating operations and is lost out of the flue venting. Both of these efficiency ratings make the GPGM36112041 packaged unit a universal option, as it is acceptable to install nationwide.

Warranty

Goodman provides a 10 year parts warranty and a whopping 20 year heat exchanger warranty. Please note that the unit must be installed following your state and local codes and the unit must be registered online through the manufacturer for the warranty to be upheld.

Durability and Reliability

The exterior of the Goodman GPGM36112041 is durable with its heavy-gauge steel design and superior noise isolation insulation. The unit also meets Florida building code unit integrity requirements for hurricane-type weather when properly anchored. For reliability, the unit’s blower motor is completely sealed and permanently lubricated. The evaporator coil is also all-aluminum and the redundant gas valve is accompanied by a power-assisted combustion, all increasing reliability and durability and providing a peace of mind that your unit will work whenever you need it.

Installation and Maintenance

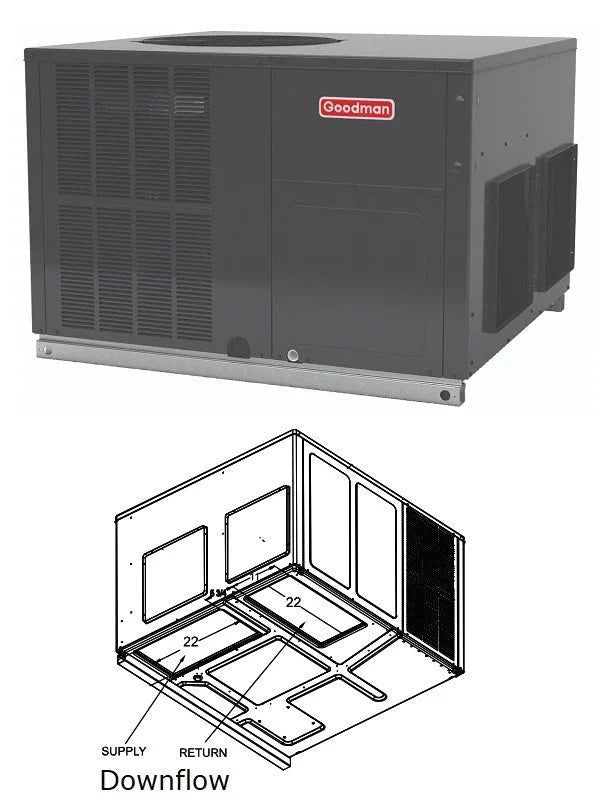

The Goodman GPGM36112041 packaged unit uses natural gas out of the box, but a propane conversion kit can be purchased separately and field-installed if required. For ease of installation, the GPGM36112041 is precharged from the factory with all required refrigerant, decreasing materials costs. The unit can be installed in a downflow or horizontal configuration for whether you need it to be on the roof or next to the building.

• AFUE:
• • 81

• Airflow Rate High Cooling:
• • 1750

• Brand:
• • Goodman

• Cabinet Features:
• • Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish
  • Horizontal or downflow application
  • Compressor sound blanket
  • Convenient access panels
  • One roof curb fits all units
  • Fully insulated cabinet
  • Bottom, 2” high base rails for easier handling
  • When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds

• Class:
• • Packaged Gas/Electric/Dual

• Compressor Stages:
• • Two Stage

• Compressor Type:
• • Scroll

• Cooling Capacity Rated:
• • 56000

• Unit Depth:
• • 51

• Unit Height:
• • 40

• Unit Width:
• • 47

• Family Description:
• • Packaged Gas / Electric Units, 13.4 SEER2 / 81% AFUE, 2 to 5 Tons

• Heating Capacity Rated:
• • 120000

• High-Fire Input Capacity:
• • 120000

• High-Fire Output Capacity:
• • 97200

• Min. Circuit:
• • 41.0

• Model Efficiency:
• • 13.4 SEER2

• Motor Speed Type:
• • Multi Speed ECM

• Power Frequency:
• • 60

• Power Phase:
• • 1

• Power Voltage:
• • 208/230

• Product Benefits:
• • Meets the 2023 M1 Test Standards

• Category:
• • Packaged Gas/Electric/Dual

• Family:
• • GPGM3

• Prop65 Label Required:
• • TRUE

• Refrigerant:
• • R-410A

• Tonnage:
• • 5 tons

• Unit Type:
• • Outdoor

• Unit Weight:
• • 453
