Goodman 1.5 Ton 14.5 SEER Upflow HVAC System GM9C960403AN CHPTA1822A4 GSXN401810

Add this product to cart for ADDITIONAL SAVINGS!

Goodman Furnace Model Number: GM9C960403AN

Goodman Specifications Sheet Click HERE

Goodman Horizontal Cased Evaporator Coil Model Number: CHPTA1822A4

Goodman Specifications Sheet Click HERE

Goodman Air Conditioner R410A Model Number: GSXN401810

Goodman Specifications Sheet Click HERE

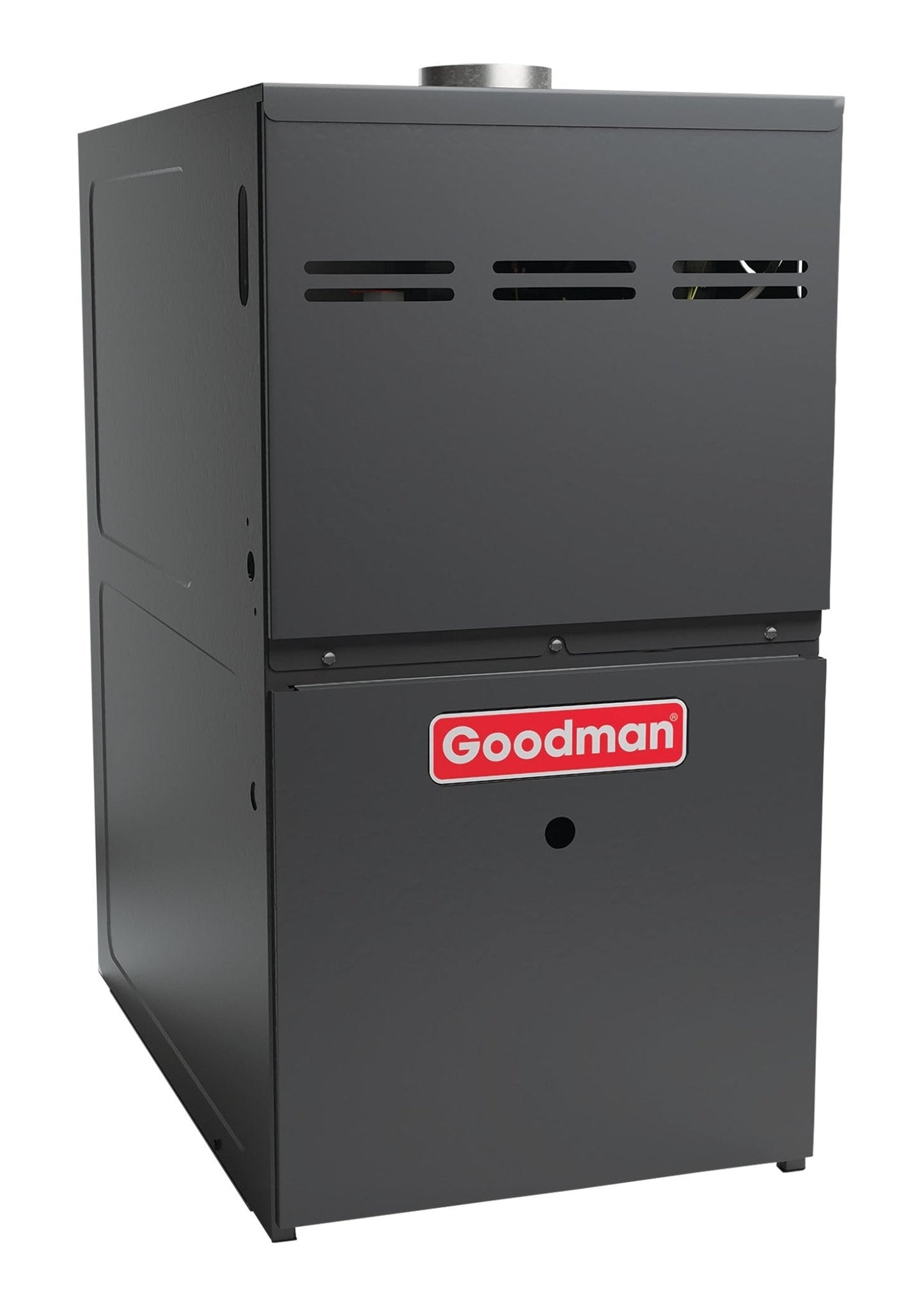

FURNACE: GM9C960403AN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. Stainless-steel sloped secondary heat exchanger
3. Silicon Nitride igniter
4. Color-coded low-voltage terminals
5. Multi-speed ECM blower motor with continuous fan speed
6. Fault code LED Output
7. AHRI Certified - ETL Listed
8. Energy Star
9. Single-Stage gas Valve
10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
11. Low constant fan speed circulates air throughout the home
12. High static
13. All models comply with California Ultra-Low N0x 14 ng/J

Warranty:

Standard warranties apply.

Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, residential: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 79 YEARS PARTS

HEAT EXCHANGER - LIFETIME PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Product Attributes:

AFUE: 96

Airflow Rate High Heating: 1200

Brand: Goodman

Class: Gas Furnace

Unit Depth: 28

Unit Height: 33-3/8

Unit Width: 14

Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE

High-Fire Input Capacity: 40000

High-Fire Output Capacity: 38440

Min. Circuit: 10.3

Model Efficiency: 0.96

Motor Speed Type: Nine Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits: 1. High reliability and quality

2. Faster condensate water drainage and no unit water leakage
3. Durable and long igniter life
4. Provisions for electronic air cleaner and humidifier
5. Energy Efficient and quiet circulation
6. Self-diagnostic control board with constant memory
7. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
8. Tax Credit
9. Simple installation and setup
10. Easy Connection for EAC and Humidifier
11. Extra option for Air flow
12. High static airflow capability
13. Lower NOx emission

Category: Gas Furnace

Family: GM9S96

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 106

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

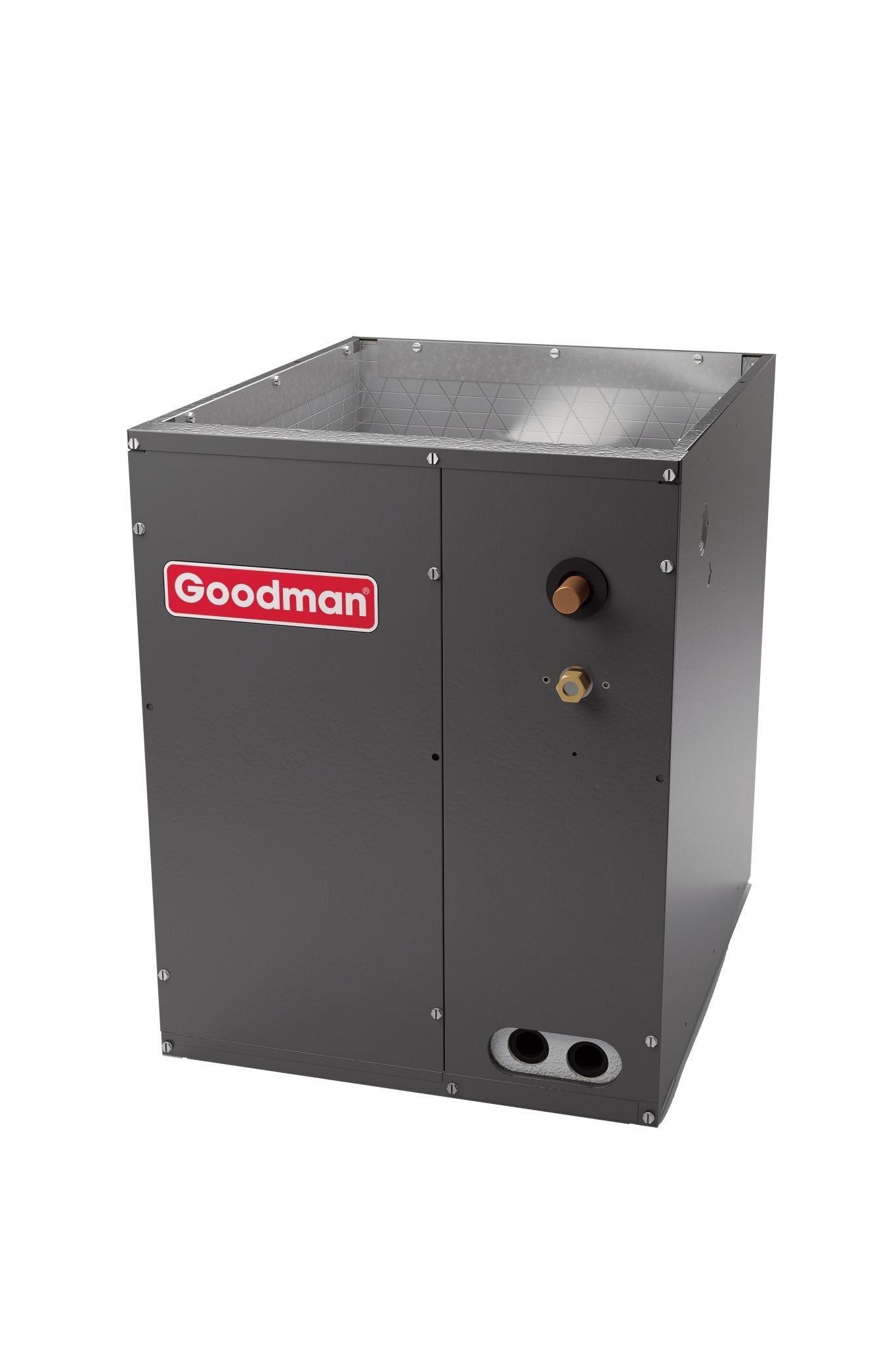

COIL: CHPTA1822A4

Specifications:

Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology

Optimized for use with R-401A refrigerant

Factory-installed thermal expansion valves for cooling applications

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Single-piece access panel with tight seal helps to keep conditioned air from escaping

Seal tight customized suction and liquid grommets for easy installation and removal

21" depth for easier attic access

Horizontal application

AHRI certified

ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: Not Available

Registered parts, multi-family: Not Available

Registered parts, commercial: Not Available

Product Attributes:

Brand: Corporate

Class: Coil

Unit Depth: 26

Unit Height: 16.50

Unit Width: 24.75

Family Description: CHPTA AlumaFin7™ Evaporator Coil

Product Benefits: All-aluminum metallurgy provides superior corrosion resistance

Compatible with R-410A or R-22 refrigerant

Multi-louvered aluminum fin design helps support efficient heat transfer

Hydrophilic fins provide superior condensate management

7mm sized grooved aluminum tubing for enhanced turbulence of refrigerant

DecaBDE-free thermoplastic drain pan with secondary drain connections

Galvanized steel texture and parts used to help reduce corrosion on steel components

Category: Coil

Family: CHPTA

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 1.5 tons

Unit Type: Indoor

Unit Weight: 48

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

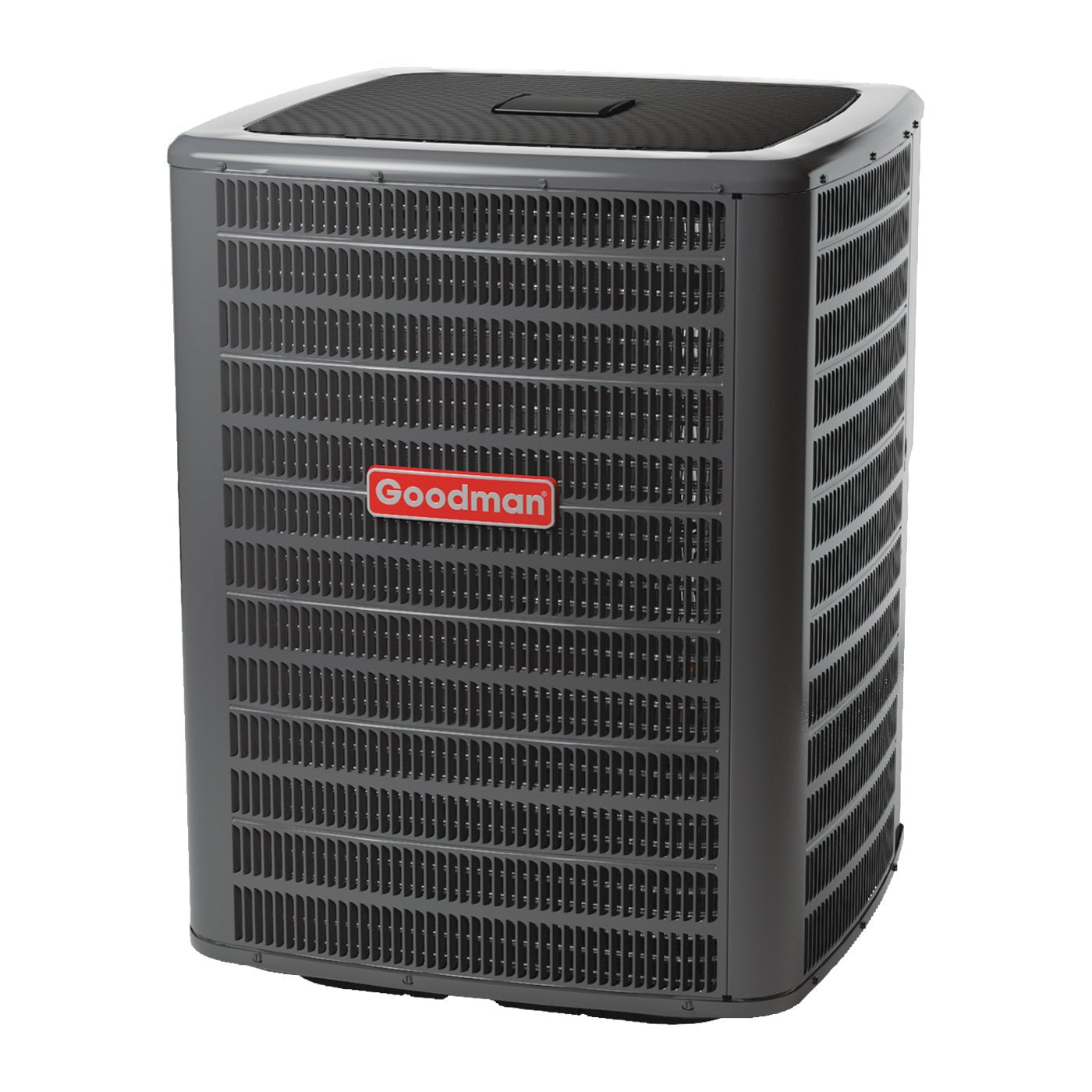

OUTDOOR: GSXN401810



Specifications

Energy-efficient compressor

Copper tube/enahnaced aluminum fin coil-5mm diameter on 1.5-4.0 Ton

Factory-installed filter drier

Fully charged for 15' of tubing length

Service valvess with sweat connections and easy-to-access guage ports

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Tested

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features:

Removable grille-style top design compliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with space provided for field-installed accessories

When properly anchored, meets the 2020 Florida Building Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Compressor Stages: Single Stage

Compressor Type: Rotary

Unit Depth: 26

Unit Height: 27

Unit Width: 26

Family Description: Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton

Max. Voltage: 253

Min. Circuit: 13.8

Min. Voltage: 197

Model Efficiency: 14.3 SEER2

Motor Speed Type: PSC

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXN4

Prop65 Label Required: TRUE

Tonnage: 1.5 tons

Unit Type: Outdoor

Liquid Valve Outside Diameter:  3/8

Suction Valve Outside Diameter: 3/4

Unit Weight: 118
