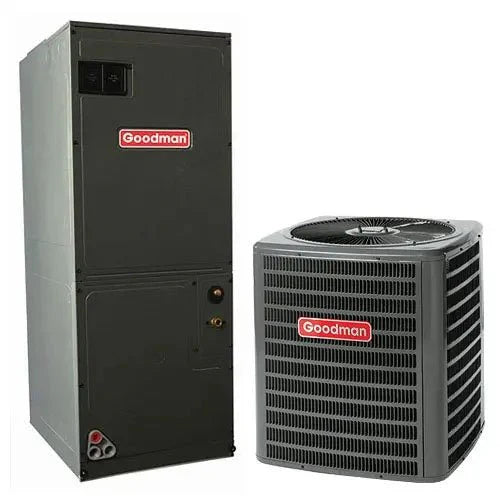

Goodman 1.5 Ton SEER Straight Cool System Heat Pump ECM AH GSXN401810 HKSX05XC



Model: GSXN401810

Goodman Specifications Sheet Click HERE

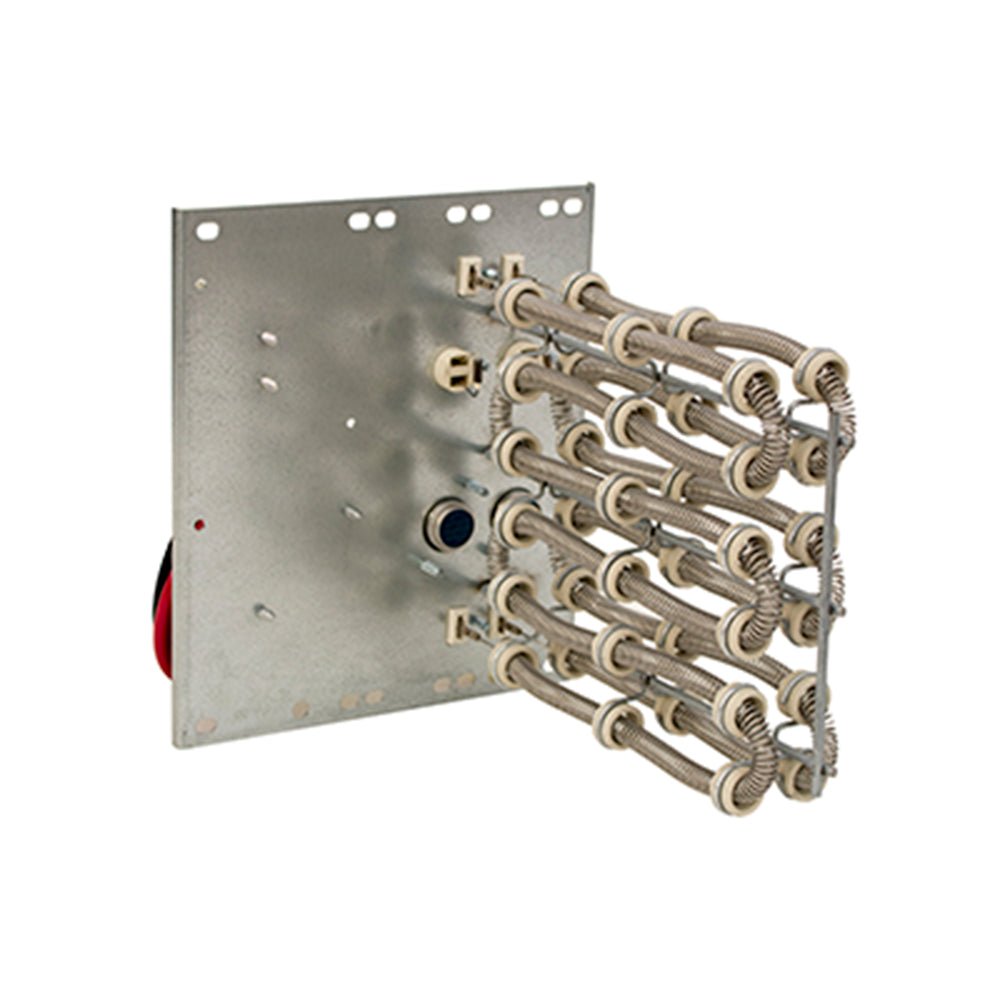

Model: HKSX05XC

Goodman Specifications Sheet Click HERE



Blower: HKSX05XC

Product Attributes

Brand: PartsAndAccessories

Class: Heat Kits

Category: Parts, Supplies & Accesories

Prop65 Label Required: No

Vendor: Zoppas Industries De Mexico SA DE

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

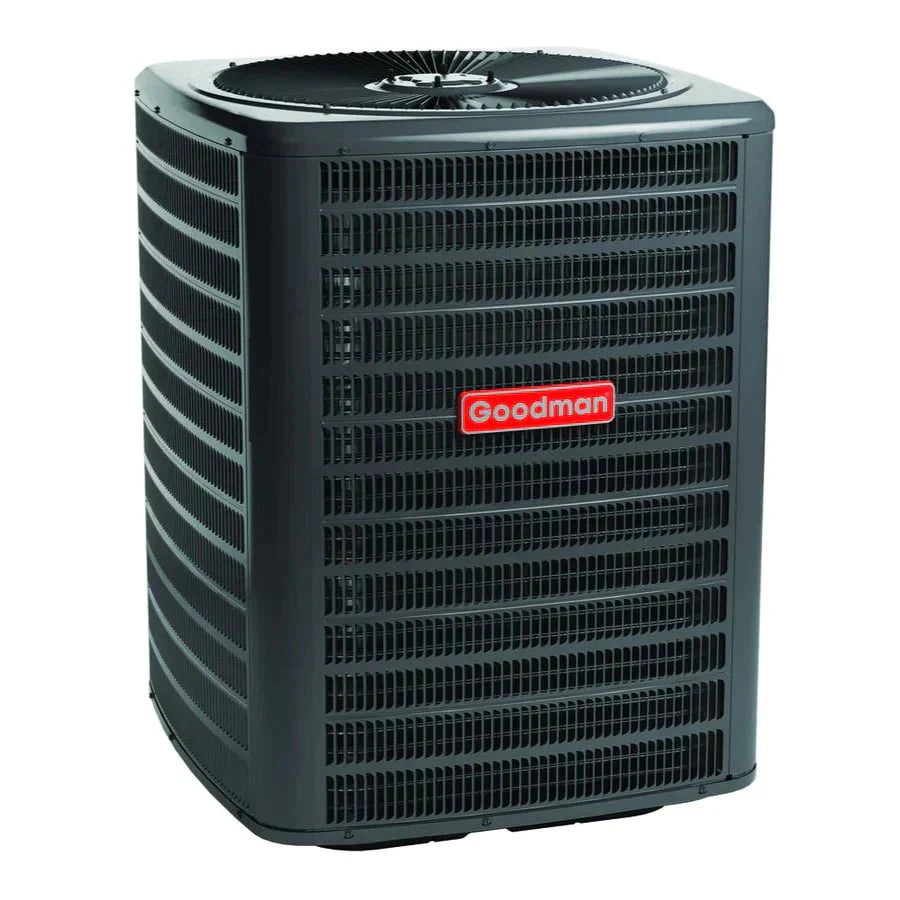

OUTDOOR: GSXN401810

Specifications

High-Efficiency scroll compressor

SmartShift® technology to ensure quiet reliable defrost

Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T

Factory-installed suction-line accumulator

Factory-installed compressor crankcase heater

Factory-installed high-capacity muffler

High- and low-pressure switches

Service valves with sweat connections and easy access to gauge ports

Fully charged for 15' of tubing length

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman
Cabinet Features:
Removable grille-style top designcompliant with UL 60335-2-40
Venturi for increased velocity of airflow
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Steel louver coil guard
Rust-resistant coated screws
Single-panel access to controls with spaceprovided for field-installed accessories
When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Class: Split Air Conditioner
Compressor Stages: Single Stage
Compressor Type: Rotary
Unit Depth: 26
Unit Height: 27
Unit Width: 26
Family Description: Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton
Max. Voltage: 253
Min. Circuit: 13.8
Min. Voltage: 197
Model Efficiency: 14.3 SEER2
Motor Speed Type: PSC
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Air Conditioner
Family: GSXN4
Product ID Bar Code: GSXN401810
Prop65 Label Required: TRUE
Tonnage: 1.5 tons
Unit Type: Outdoor
Liquid Valve Outside Diameter: 3/8
Suction Valve Outside Diameter: 3/4
Unit Weight: 118
