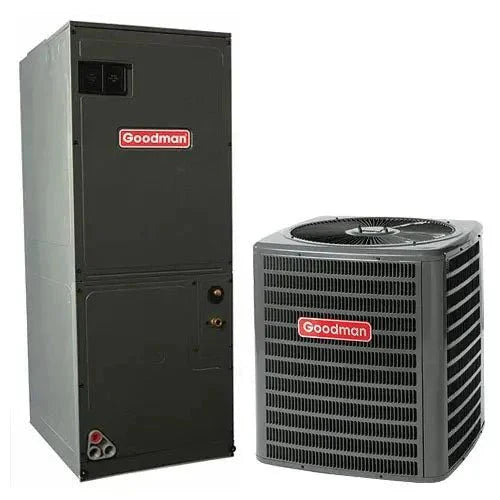

Goodman 2.0 Ton seer h5 single stage single piece ecm ah AVPEC25B14 GVZC200241

Name: Goodman 2.0 Ton seer h5 single stage single piece ecm ah AVPEC25B14 GVZC200241
Brand: Goodman
SKU: 205886789
Price: 9493.00 USD
Availability: InStock

$9,493.00 USD

Sale Sold out

Quantity

Model: AVPEC25B14

Goodman Specifications Sheet Click HERE

Model: GVZC200241

Goodman Specifications Sheet Click HERE

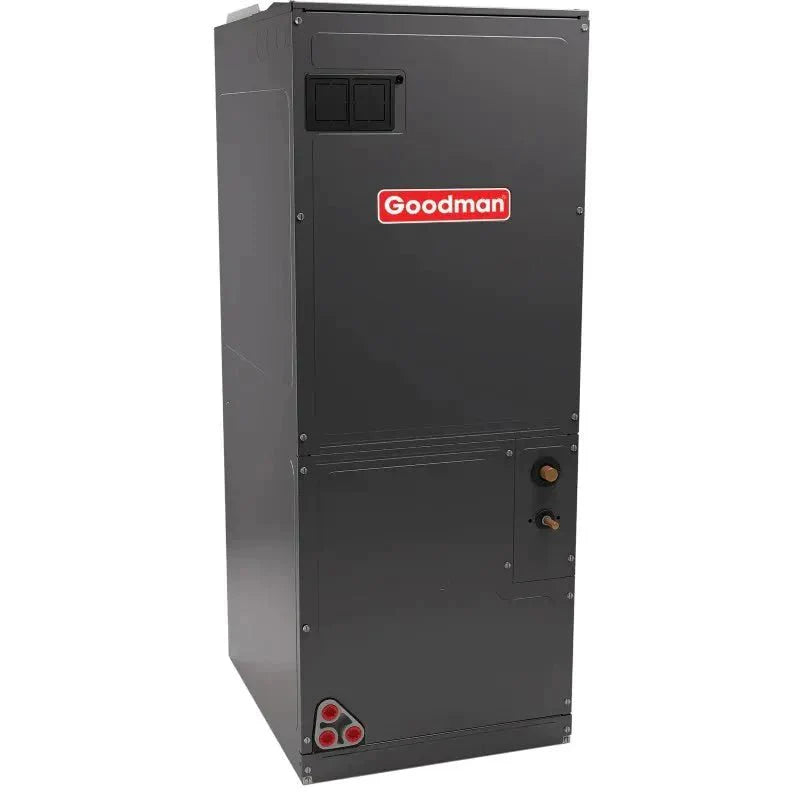

Furnace: AVPEC25B14

Specifications:

Internal factory-installed thermal expansion valves for cooling and heat pump applications

Direct drive, 9-speed ECM blower motor

Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models

All-aluminum evaporator coil with high-performance coated fin stock

Coil mounting track for quick repositioning

Optimized for use with R-410A refrigerant

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

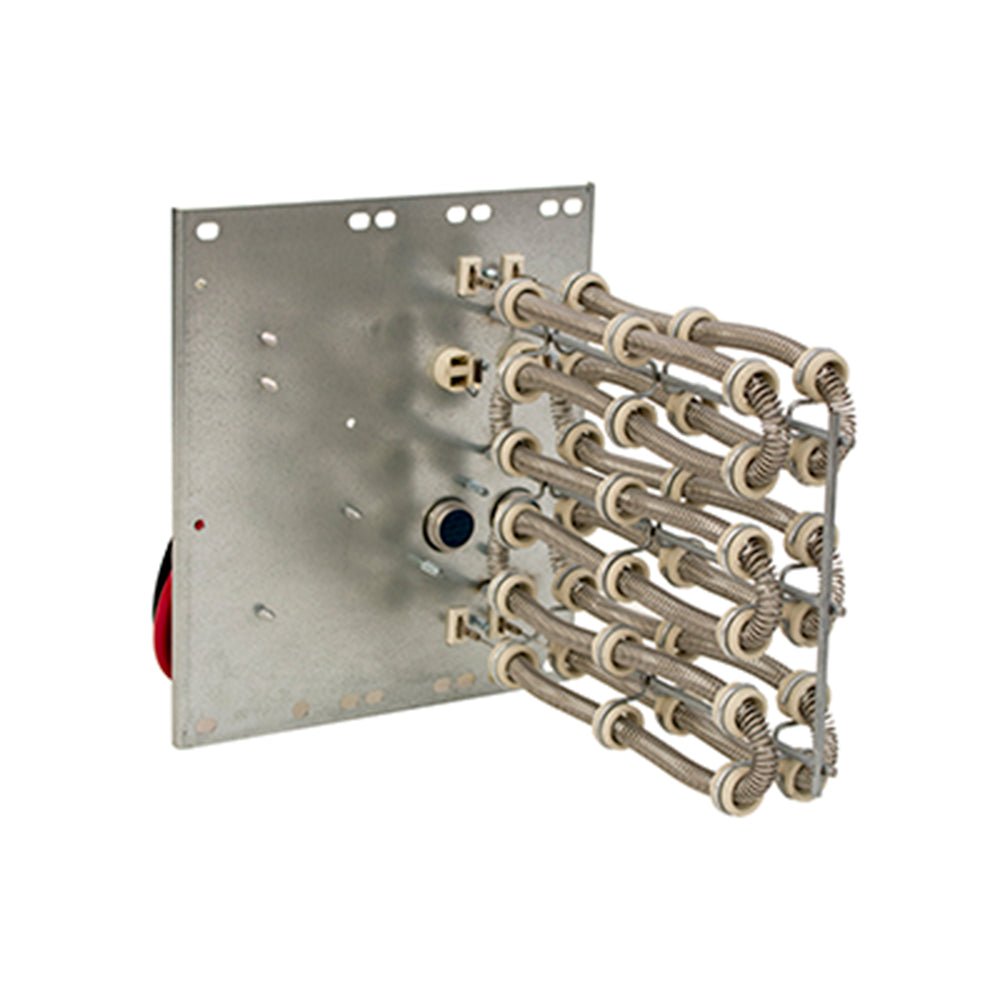

3 kW – 25 kW electric heater kits

AHRI certified

ETL listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Brand: Corporate
Cabinet Features:
1. Rigid SmartFrame™ cabinet
2. Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
3. Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
4. Horizontal or vertical configuration capabilities
5. 21" depth for easier attic access
6. DecaBDE-free thermoplastic drain pan with secondary drain connections
7. Screw-less sides and back helps to reduce condensation when installed in humid locations
8. Foil-faced insulation covers the internal casing to reduce cabinet condensation
9. Galvanized, leather grain-embossed finish
10 .Glue-less cabinet insulation retention
Class: Air Handler
Unit Depth: 21
Unit Height: 53-1/2
Unit Width: 17-1/2
Family Description:
Multi-Position, Variable-Speed ECM-Based Air Handler with Internal EEV, ComfortBridge™ and Inverter Compatible 2 to 5 Tons
Max. Voltage: 253
Min. Circuit: 4.9/4.9
Min. Voltage: 197
Motor Speed Type: Variable Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits:
1. Electronic Expansion Valve (EEV) for cooling and heat pump applications.
2. Variable-speed ECM blower motor
3. Suitable for operation with inverter-driven products
4. ComfortNet Communicating System compatible
5. Provides constant CFM over a wide range of static pressure conditions independent of duct system
6. CFM indicator
7. Provides adjustable low CFM for efficient fan-only operation
8. Improved humidity and comfort control
9. All-aluminum evaporator coil
10. Fault recall of six most recent faults
11. AHRI certified
ETL listed
12. Rigid SmartFrame™ cabinet
13. Horizontal or vertical configuration capabilities
14. DecaBDE-free thermoplastic drain pan with secondary drain connections
15. Foil-faced insulation covers the internal casing to reduce cabinet condensation
16. Field Installed 3 kW – 10 kW electric heater kits available
Category: Air Handler
Family: AVPEC
Product ID Bar Code: AVPEC25B14
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2 tons
Unit Type: Indoor
Unit Weight: 128

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

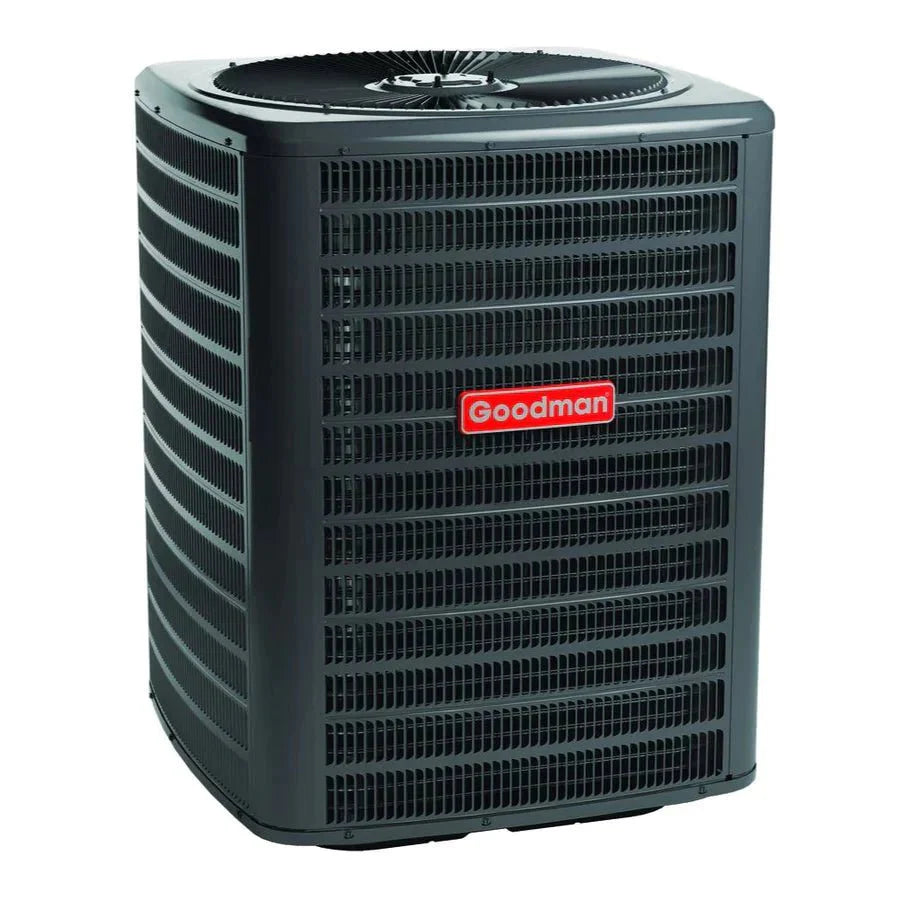

Outdoor: GVZC200241

Specifications

High-Efficiency scroll compressor

SmartShift® technology to ensure quiet reliable defrost

Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T

Factory-installed suction-line accumulator

Factory-installed compressor crankcase heater

Factory-installed high-capacity muffler

High- and low-pressure switches

Service valves with sweat connections and easy access to gauge ports

Fully charged for 15' of tubing length

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Airflow Rate High Cooling: 720
Airflow Rate High Heating: 720
Airflow Rate Low Cooling: 490
Airflow Rate High Heating: 490
Brand: Goodman
Cabinet Features:
1. Heavy-gauge galvanized steel cabinet and louvered coil guards
2. Service valves with sweat connections and easy-access gauge ports
3. Engineered sound control top design
4. Wire fan discharge grille
5. Baked-on powder-paint finish with 500-hour salt-spray approval
6. Single-panel access to controls with space for field-installed accessories
7. Service port and controls are accessible while unit is operating
8. Compact footprint
9. Rust-resistant screws
10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Class: Split Heat Pump
Compressor Stages: Variable
Compressor Type: Swing
Cooling Capacity Rated: 23400
Unit Depth: 35-1/2
Unit Height: 38-1/4
Unit Width: 35-1/2
Family Description: High-Efficiency, Communicating, Split System Heat Pump Up to 23.5 SEER & 10 HSPF
Heating Capacity Rated: 23600
Max. Voltage: 253
Min. Circuit: 15.2
Min. Voltage: 197
Model Efficiency: 20 SEER
Motor Speed Type: Variable Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits:
1. Variable swing and scroll compressors feature more efficient operation, higher tolerance to liquid refrigerant, less mechanical failures and smoother, quieter operation when compared to reciprocating compressors and single stage compressors.
2. The top performance of an electronically commutated motor (ECM) provide airflow at variable speeds, matching indoor comfort needs while reducing energy consumption and system noise compared to a single-speed motor.
3. Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter's residual system contamiN/Ants and moisture.
4. Ensures refrigerant is ready even in extreme exterN/Al temperatures.
5. Prevents condensation of refrigerant in the crankcase of a compressor.
6. Reduces pass-through vibration noise from compressor operation.
7. A high-pressure switch prevents the system from operating at extremely high pressures by shutting off the compressor circuit if the pressure exceeds the desigN/Ated rating. When a refrigeration system operates at lower than normal pressures, the low-pressure switch prevents freezing from working its way to the compressor.
8. High-density foam compressor blanket provides noise reduction when the compressor is in operation.
9. Consistent and concise monitoring helps to ensure that the system is operating efficiently, regardless of the weather.
10. Time-delay defrost technology allows for a reliable, quiet, and smooth transition when units enter defrost mode.
11. By simplifying the communication connection to two low voltage wires to the outdoor unit, technicians may elimiN/Ate the need to run additioN/Al thermostat wiring.
12. Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
13. When peak performance is needed, boost mode increases compressor speed to provide additioN/Al performance.
14. Proprietary, self-contained sequence of actions designed to help control system operation for energy efficient performance and enhanced reliability.
15. Fully charged with refrigerant sufficient for 15’ of tubing length to assist with easy installation of unit.
16. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
17. A straight-forward, color-coded termiN/Al strip for non-communicating set-up helps to simplify installation.
18. Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.
Category: Split Heat Pump
Family: GVZC20
Product ID Bar Code: GVZC200241
Prop65 Label Required: TRUE
Refrigerant: R-410A
Unit Type: Outdoor
Liquid Valve Outside Diameter: 3/8
Suction Valve Outside Diameter: 3/4
Unit Weight: 217
