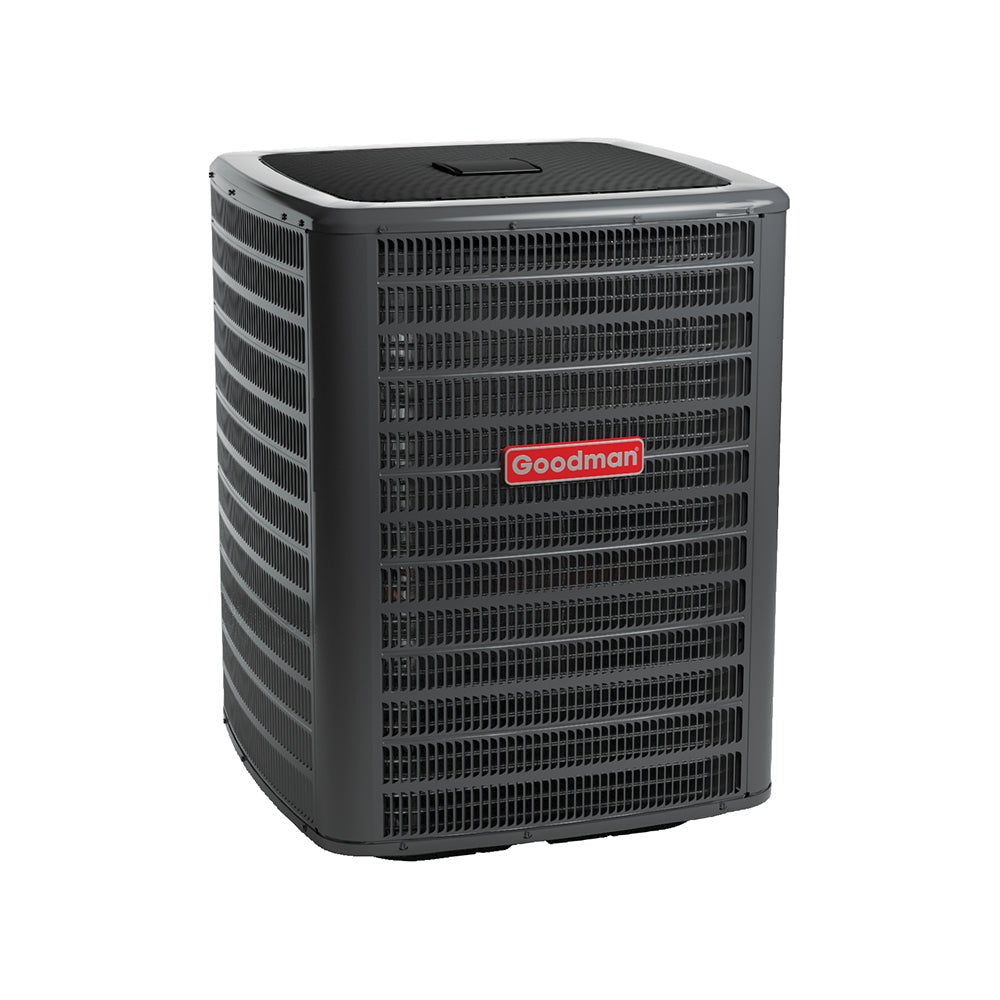

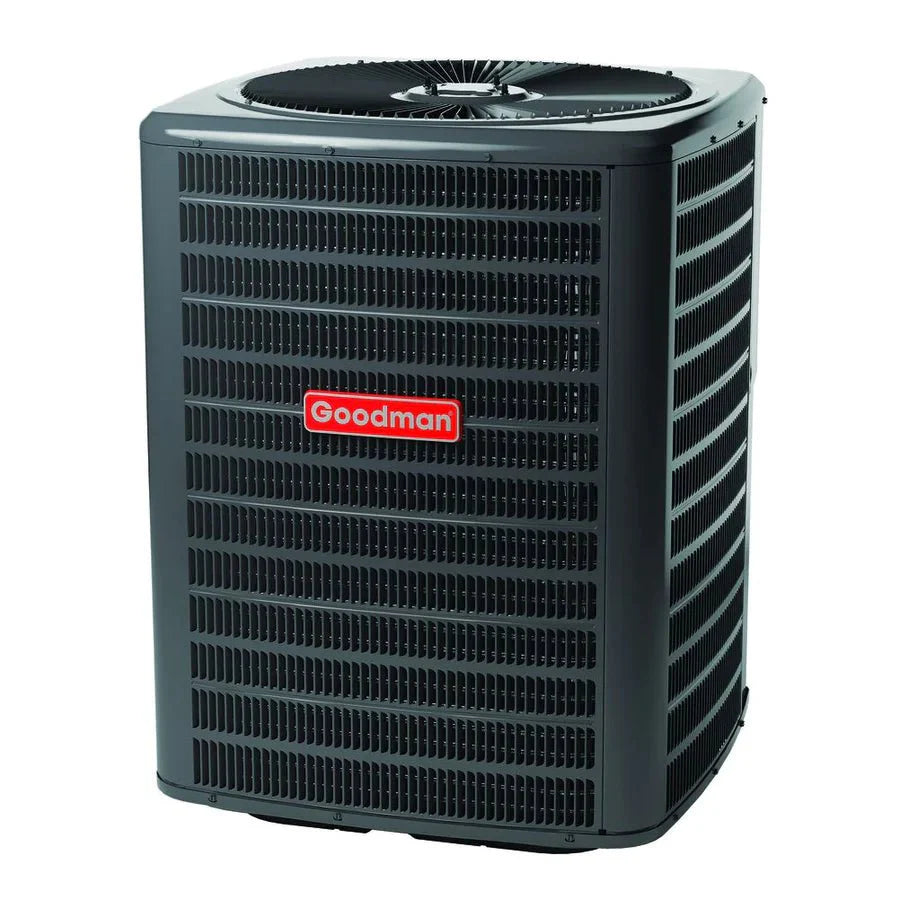

Goodman 2.5 Ton Air conditioner 15.2 SEER2 GSXH503010

Outdoor Model Number: GSXH503010

Goodman Specifications Sheet Click HERE

Specifications:

Energy-efficient compressor

Copper tube/enhanced aluminum fin coil-5mm diameter on 1.5-4.0 Ton

Factory-installed filter drier

Fully charged for 15' of tubing length

Service valves with sweat connections and easy-to-access gauge ports

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Tested

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features: Removable grille-style top designcompliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with spaceprovided for field-installed accessories

When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Compressor Stages: Single Stage

Compressor Type: Scroll

Family Description: High-Efficiency Split System Air Conditioner, Up to 15.2 SEER2

Max. Voltage: 253

Min. Circuit: 17.0

Min. Voltage: 197

Model Efficiency: 15.2 SEER2

Motor Speed Type: PSC

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXH5

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 2.5 tons

Unit Type: Outdoor
