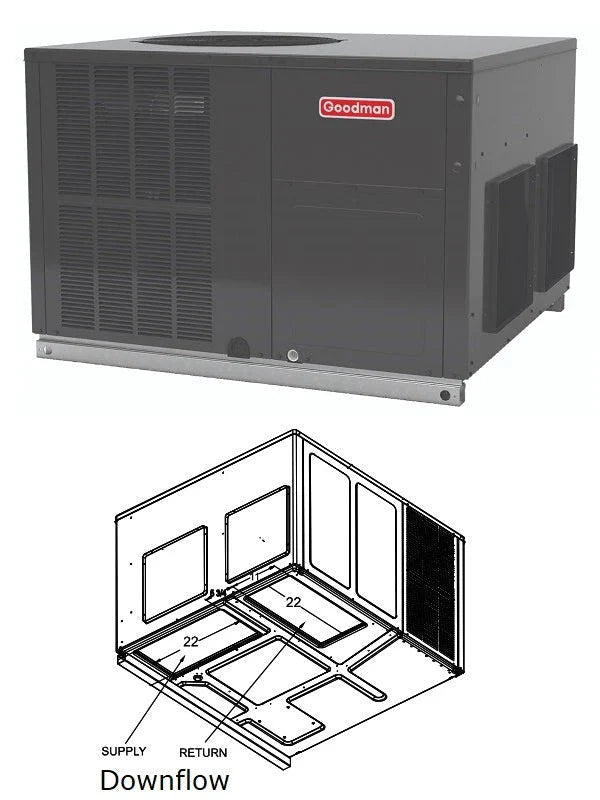

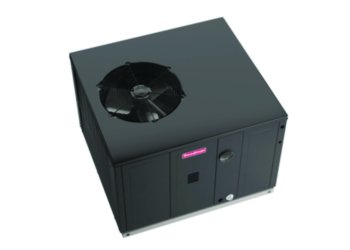

Goodman 2.5 Ton Gas Package Unit 40,000 Btu Furnace 13.4 Seer2 Downflow Horizontal GPGM33004041
Goodman 2.5 Ton Gas Package Unit 40,000 Btu Furnace 13.4 Seer2 Downflow Horizontal GPGM33004041
Couldn't load pickup availability
Model: GPGM33004041
Goodman Specifications Sheet Click HERE
Package Unit/ Roof top unit: GPGM33004041
Specifications:
Energy-efficient compressor
Copper tube/enhanced aluminum fin coil-5mm diameter on 1.5-4.0 Ton
Factory-installed filter drier
Fully charged for 15' of tubing length
Service valves with sweat connections and easy-to-access guage ports
Contactor with lug connection
Ground lug connection
AHRI Certified
ETL Tested
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes:
AFUE: 81
Airflow Rate High Cooling: 1000
Brand: Goodman
Cabinet Features:
Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish
Horizontal or down flow application
Compressor sound blanket
Convenient access panels
One roof curb fits all units
Fully insulated cabinet
Bottom, 2” high base rails for easier handling
When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds
Class: Packaged Gas/Electric/Dual
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 28600
Unit Depth: 51
Unit Height: 32
Unit Width: 47
Family Description: Packaged Gas / Electric Units, 13.4 SEER2 / 81% AFUE, 2 to 5 Tons
Heating Capacity Rated: 40000
High-Fire Input Capacity: 40000
High-Fire Output Capacity: 32400
Min. Circuit: 22.8
Model Efficiency: 13.4 SEER2
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Packaged Gas/Electric/Dual
Family: GPGM3
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2.5 tons
Unit Type: Outdoor
Unit Weight: 417
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
