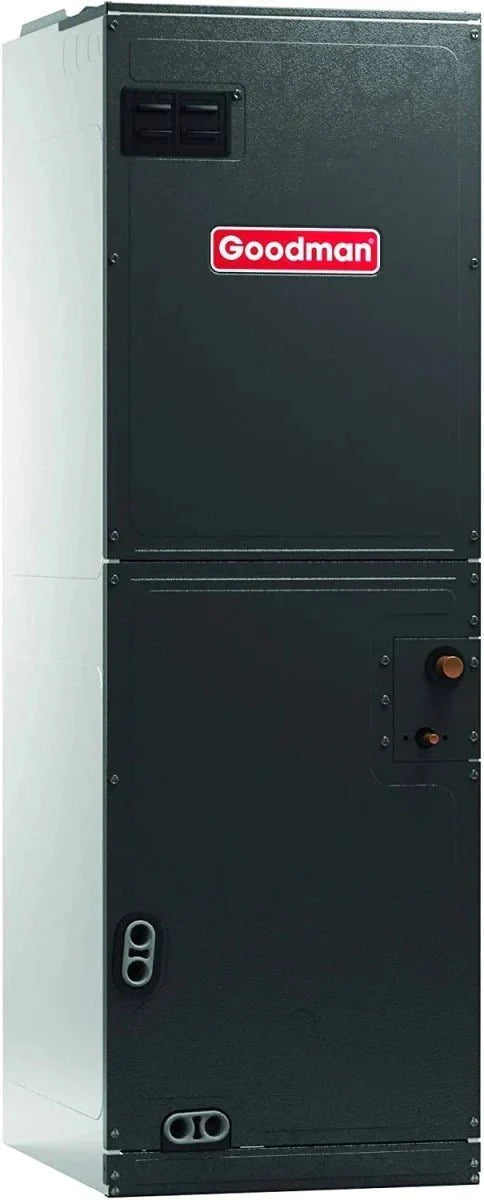

Goodman 3.5 Ton Air Handler Variable Speed ECM Motor AVPEC37B14

Model: AVPEC37C14

Goodman Specifications Sheet Click HERE

Furnace: AVPEC37C14

Specifications:

1. Electronic Expansion Valve (EEV) for cooling and heat pump applications.
2. Variable-speed ECM blower motor
3. Suitable for operation with inverter-driven products
4. ComfortNet Communicating System compatible
5. Provides constant CFM over a wide range of static pressure conditions independent of duct system
6. CFM indicator
7. Provides adjustable low CFM for efficient fan-only operation
8. All-aluminum evaporator coil
9. Fault recall of six most recent faults
10. Improved humidity and comfort control
11. 5 kW – 10 kW electric heater kits

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Brand: Corporate

Cabinet Features:

1. Rigid SmartFrame™ cabinet
2. Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
3. Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
4. Horizontal or vertical configuration capabilities
5. 21" depth for easier attic access
6. DecaBDE-free thermoplastic drain pan with secondary drain connections
7. Screw-less sides and back helps to reduce condensation when installed in humid locations
8. Foil-faced insulation covers the internal casing to reduce cabinet condensation
9. Galvanized, leather grain-embossed finish

10 .Glue-less cabinet insulation retention

Class: Air Handler

Unit Depth: 21

Unit Height: 53-1/2

Unit Width: 21

Family Description: Multi-Position, Variable-Speed ECM-Based Air Handler with Internal EEV, ComfortBridge™ and Inverter Compatible 2 to 5 Tons

Max. Voltage: 253

Min. Circuit: 6.5/6.5

Min. Voltage: 197

Motor Speed Type: Variable Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits:

1. Electronic Expansion Valve (EEV) for cooling and heat pump applications.
2. Variable-speed ECM blower motor
3. Suitable for operation with inverter-driven products
4. ComfortNet Communicating System compatible
5. Provides constant CFM over a wide range of static pressure conditions independent of duct system
6. CFM indicator
7. Provides adjustable low CFM for efficient fan-only operation
8. Improved humidity and comfort control
9. All-aluminum evaporator coil
10. Fault recall of six most recent faults
11. AHRI certified

ETL listed

12. Rigid SmartFrame™ cabinet
13. Horizontal or vertical configuration capabilities
14. DecaBDE-free thermoplastic drain pan with secondary drain connections
15. Foil-faced insulation covers the internal casing to reduce cabinet condensation
16. Field Installed 5 kW – 10 kW electric heater kits available

Category: Air Handler

Family: AVPEC

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 3.5 tons

Unit Type: Indoor

Unit Weight: 150
