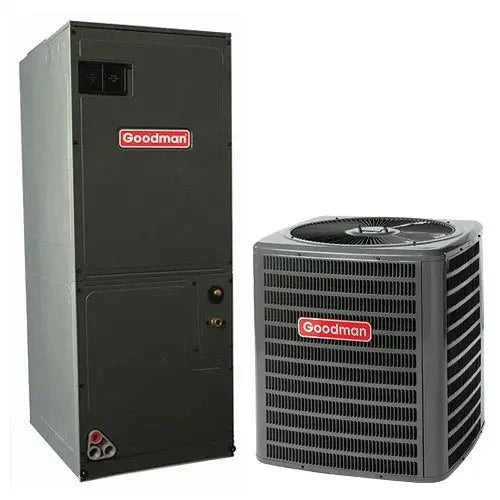

Goodman 3.5 Ton SEER Straight Cool System Heat Pump ECM AH AMST48CU1400 HKSX10XC
Goodman 3.5 Ton SEER Straight Cool System Heat Pump ECM AH AMST48CU1400 HKSX10XC
Couldn't load pickup availability
Model: AMST48CU1400
Goodman Specifications Sheet Click HERE
Model: HKSX10XC
Goodman Specifications Sheet Click HERE

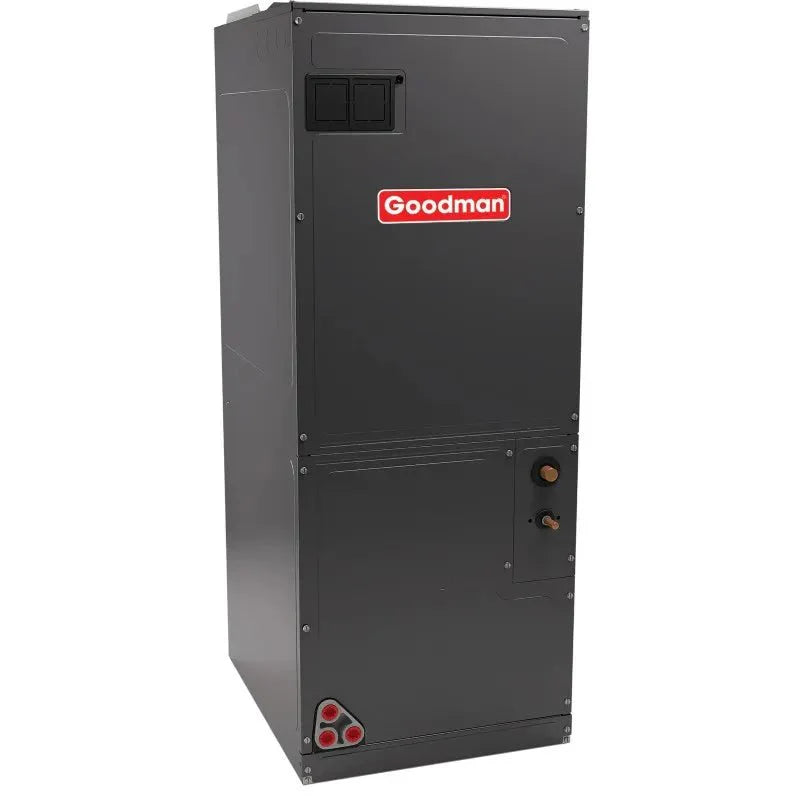

Air Handler: AMST24BU1400
Specifications:
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Direct drive, 9-speed ECM blower motor
Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
All-aluminum evaporator coil with high-performance coated fin stock
Coil mounting track for quick repositioning
Optimized for use with R-410A refrigerant
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
3 kW – 25 kW electric heater kits
AHRI certified
ETL listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes:
Brand: Corporate
Cabinet Features: Rigid SmartFrame cabinet
Horizontal or vertical configuration capabilities
21” depth for easier attic access
DecaBDE-free thermoplastic drain pan with secondary drain connections
Screw-less sides and back helps to reduce condensation when installed in humid locations
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Glue-less cabinet insulation retention
Tool-less filter access
Class: Air Handler
Unit Depth: 21
Unit Height: 45
Unit Width: 17
Family Description: Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
Max. Voltage: 240
Min. Circuit: 5.8
Min. Voltage: 208
Motor Speed Type: Single Speed
Power Frequency: 50/60
Power Phase: 1
Power Voltage: 208-240
Product Benefits: All-Aluminum tube/aluminum fin coil
Direct-drive, resilient-mount, 9-speed ECM motor
Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
High-efficiency evaporator coil
Quiet operation
Primary/secondary drain connection in a high-temperature plastic drain pan
Suitable for free-return installation (non-ducted return air)
Galvanized-steel construction
Factory-installed pull-type disconnect
Easy service access
AHRI Certified
ETL Listed
Category: Air Handler
Family: AMST
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2 tons
Unit Type: Indoor
Unit Weight: 112
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)

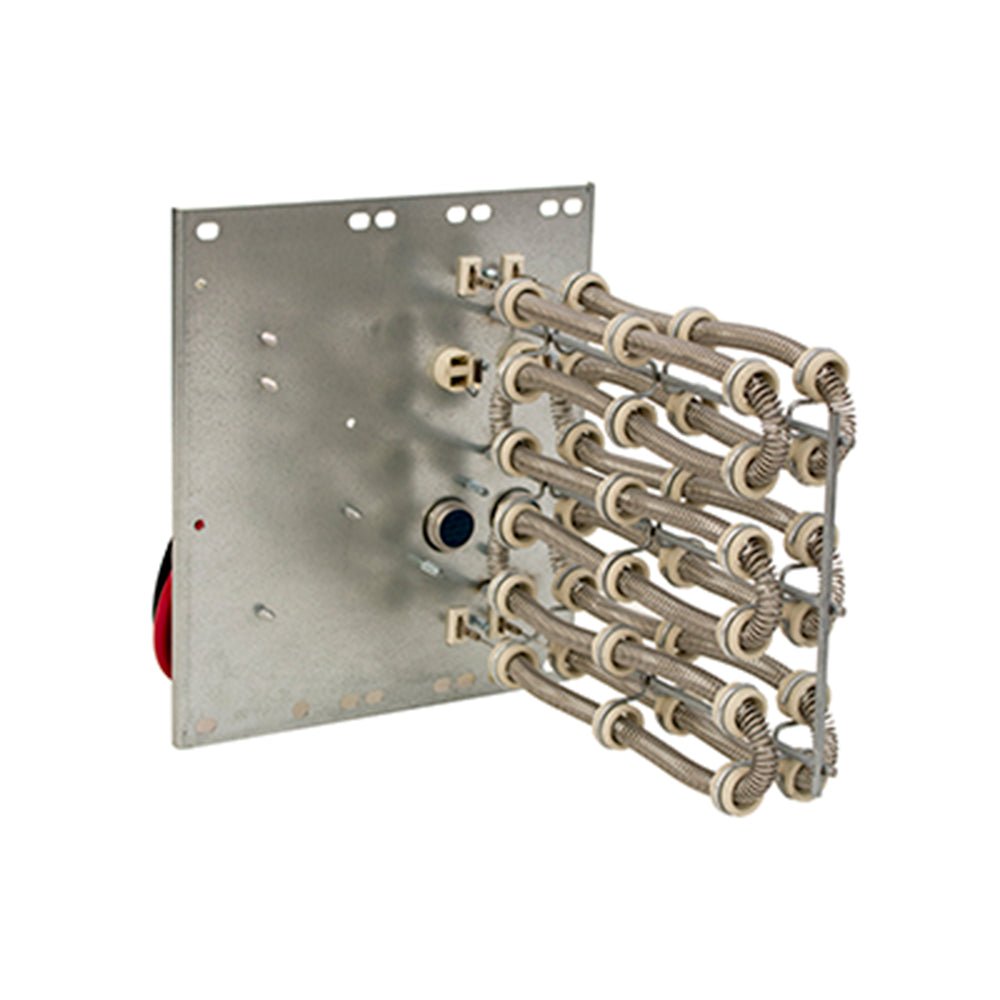

Blower: HKSX10XC
Product Attributes
Brand: PartsAndAccessories
Class: Heat Kits
Category: Parts, Supplies & Accesories
Prop65 Label Required: No
Vendor: Zoppas Industries De Mexico SA DE
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
