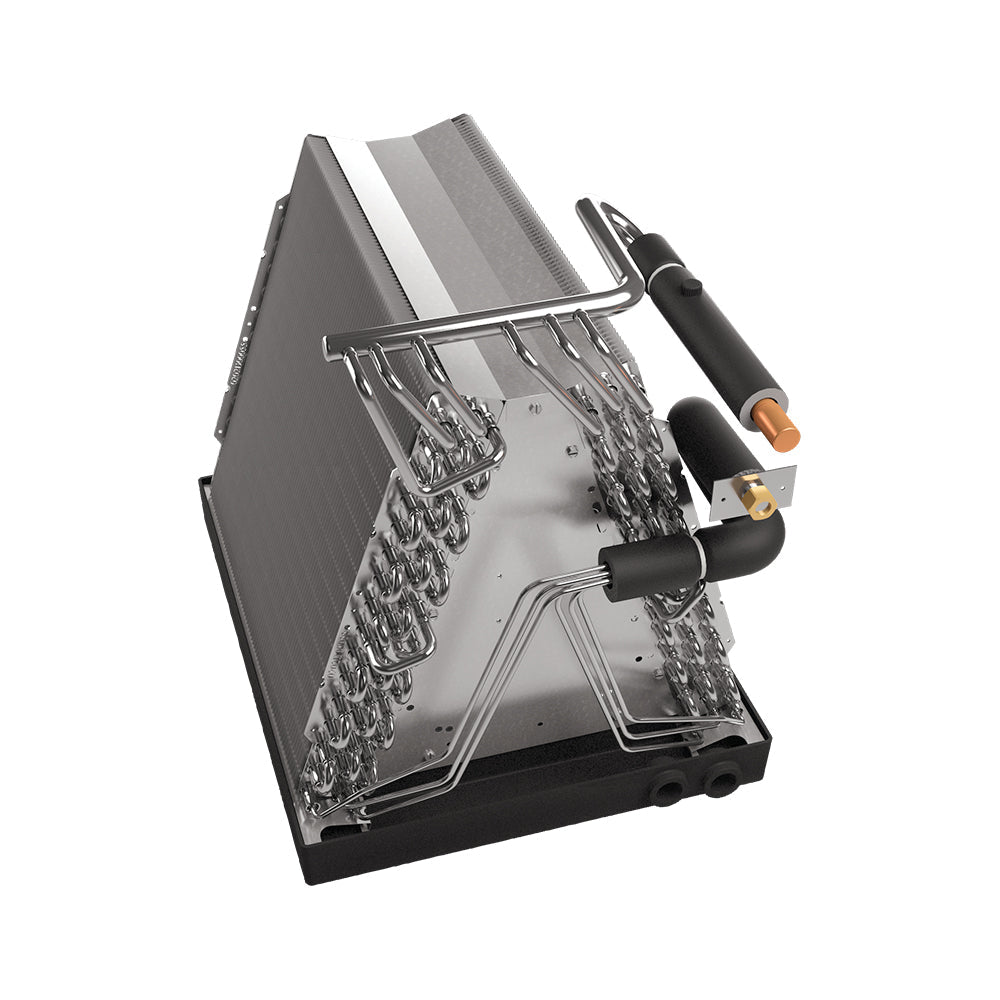

Goodman 4.0 Ton Chpf evaporator coil horizontal CHPF4860D6

Model: CHPF4860D6

Goodman Specifications Sheet Click HERE

COIL: CHPF4860D6

Specifications

All-Aluminum evaporator coil

Optimized for use with R-410A refrigerant

Factory-installed thermal expansion valves for cooling and heat pump applications

Horizontal application

Galvanized, leather grain-embossed finish

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

21" depth for easier attic access

AHRI certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Corporate

Class: Coil

Unit Depth: 21-1/4

Unit Height: 24-1/2

Unit Width: 26

Family Description: Cased Horizontal A-Coil

Category: Coil

Family: CHPF

Prop65 Label Required: TRUE

Refrigerant: Dual

Tonnage: 4 tons

Unit Type: Indoor

Unit Weight: 77
