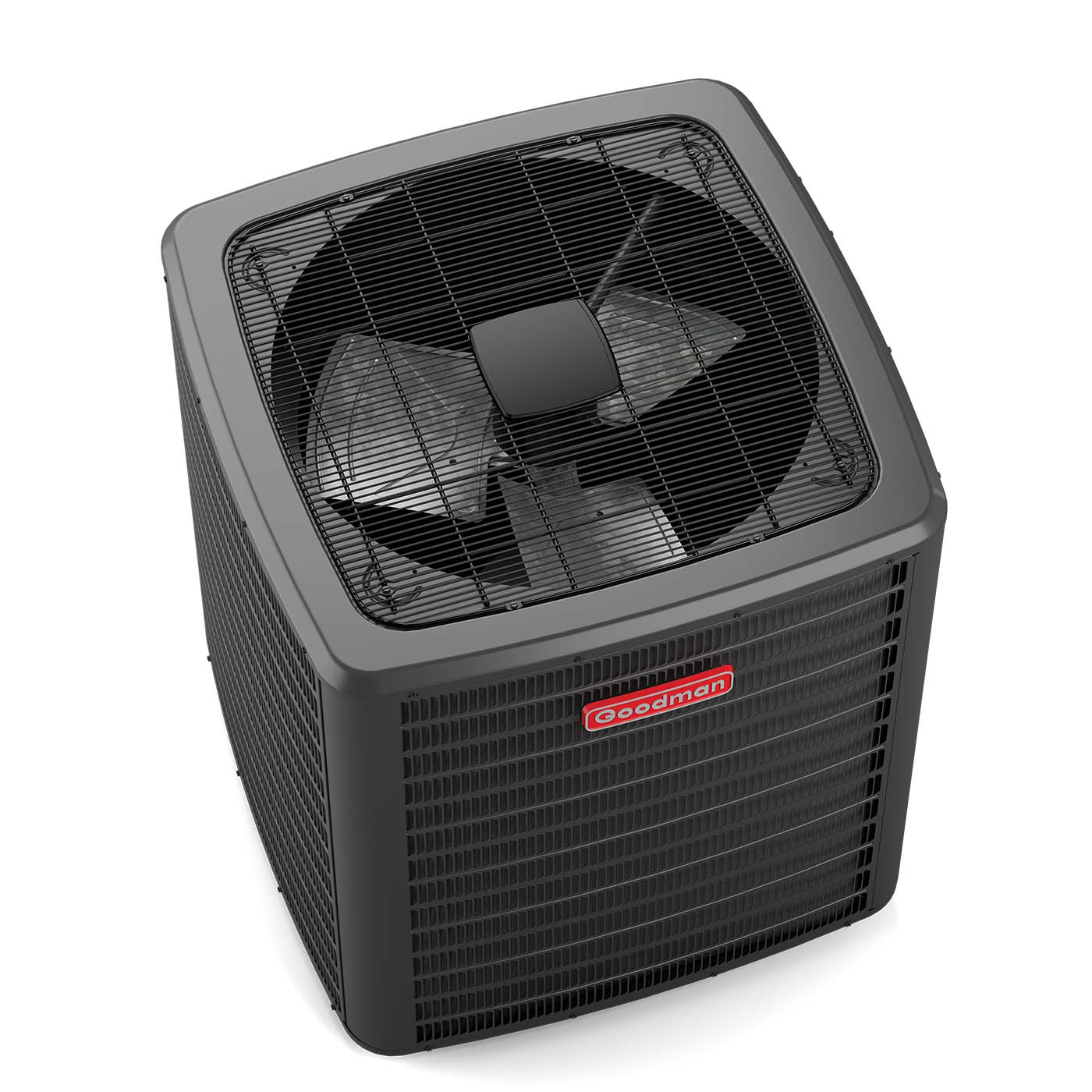

Goodman 4.0 Ton split air conditioner 17.2 seer GSXC704810

Model: GSXC704810

Goodman Specifications Sheet Click HERE

Outdoor: GSXC704810

Specifications:

Two-Stage Copeland Ultra Tech scroll compressor

Quiet two-speed ECM outdoor fan motor

Integrated communicating ComfortBridge™ Technology

Commissioning and diagnostics via Bluetoothindoor board via CoolCloud™ App

Copeland® ComfortAlert™ built in diagnostics

Copper tube/ enhanced aluminum fin coil 5mm on 2.0-3.0T

Color-coded terminal strip for non-communicating set-up

Only two low-voltage wires required incommunication mode

Factory-installed filter drier

Factory-installed transformer

Factory-installed high and low-pressure switches

High-density foam compressor sound blanket

Fully charged for 15’ of tubing length

Coil and ambient temperature sensors

Ground lug connection

AHRI Certified - ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Brand: Goodman

Cabinet Features: Removable grille-style top designcompliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with spaceprovided for field-installed accessories

When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Family Description: High-Efficiency Split-System, 2-Stage Air Conditioner 17.2 SEER2

Max. Voltage: 253

Min. Circuit: 28.3

Min. Voltage: 197

Model Efficiency: 17.2 SEER2

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXC7

Prop65 Label Required: TRUE

Tonnage: 4 tons

Unit Type: Outdoor
