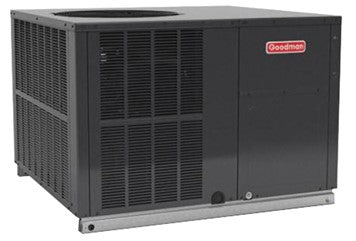

Goodman 5.0 Ton Packaged Heat Pump 13.4 SEER2 Two Stage Downflow Horizontal GPHM36041

Model: GPHM36041

Goodman Specifications Sheet Click HERE

OUTDOOR: GPHM36041

Specifications

• Energy-efficient compressor with internal relief valve
• Two-stage cooling on 5-ton units
• All-aluminum evaporator coil
• Multi-Speed ECM blower motor
• Liquid-line filter drier
• Convertible airflow: horizontal or downflow
• Copper tube/aluminum fin condenser coils
• Totally enclosed, permanently lubricated condenser fan motor
• Electric heat kit available as a field-installed option

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Airflow Rate High Cooling: 1850
Airflow Rate High Heating: 1850
Brand: Goodman
Cabinet Features:
Heavy-gauge galvanized-steel cabinet with attractive two-tone Nickel Gray powder-paint finish
Fully insulated air-handling compartment with convenient access panels
Compressor sound blanket
Louvered condenser coil protection
One footprint
two heights
Class: Packaged Heat Pump
Compressor Stages: Two Stage
Compressor Type: Scroll
Cooling Capacity Rated: 56500
Unit Depth: 51
Unit Height: 42.75
Unit Width: 47
Family Description: Packaged Heat Pump Up to 13.4 SEER2 / 6.7 HSPF2 2 to 5 Tons
Heating Capacity Rated: 55500
Max. Voltage: 253
Min. Circuit: 37.5
Min. Voltage: 197
Model Efficiency: 13.4 SEER2
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Packaged Heat Pump
Family: GPHM3
Product ID Bar Code: GPHM36041
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 5 tons
Unit Type: Outdoor
