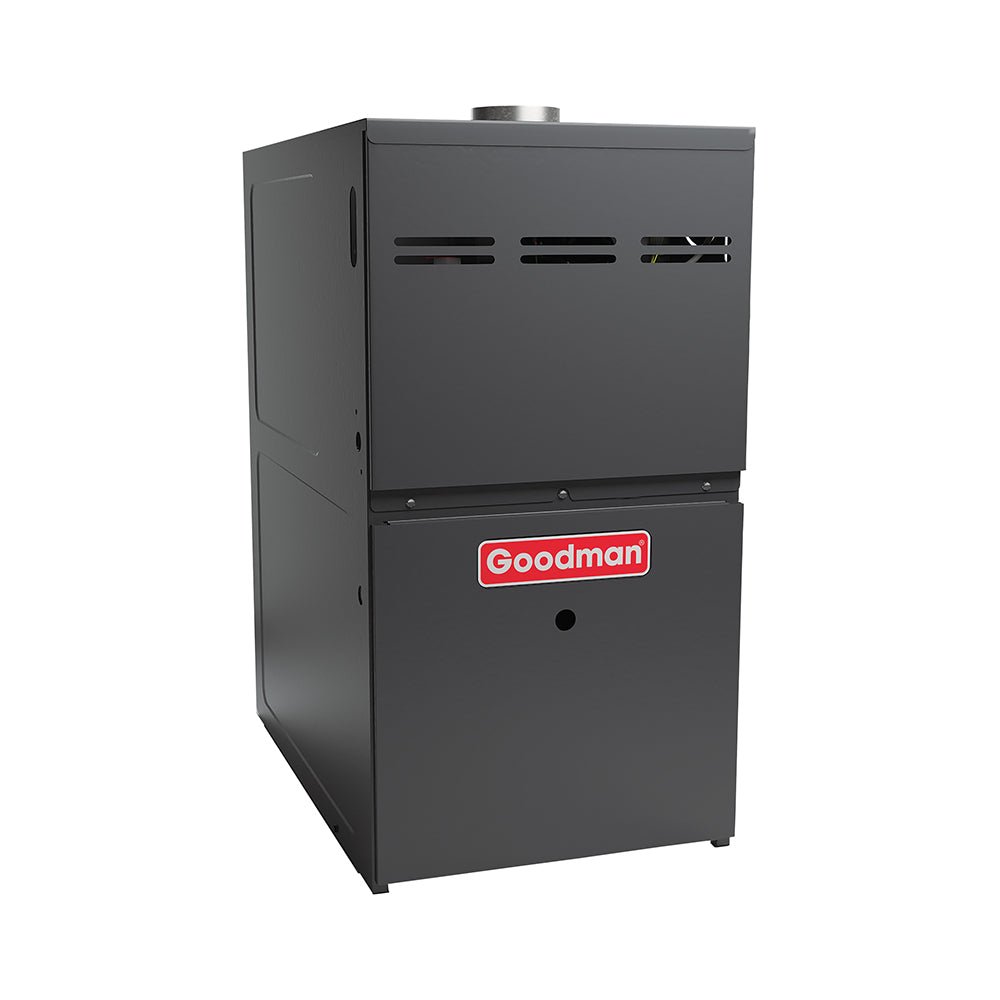

Goodman 80% AFUE Gas Furnace Multi Speed ECM Single Stage Convertible, GCES800805CX

PRODUCT: GCES800805CX

Specifications:

Heavy-duty stainless-steel tubular heat exchanger
"Silicon Nitride igniter"
Color-coded low-voltage terminals
Multi-speed ECM blower motor with continuous fan speed
Fault code LED Output
Single-Stage gas Valve
Single-speed inducer draft blower

Warranty:

Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Product Attributes:
AFUE: 80
Airflow Rate High Heating: 1315
Brand: Goodman
Cabinet Features:
1. Multi-position installation: downflow, horizontal left or right
2. Convenient left or right connection for gas and electrical service
3. Cabinet air leakage (Qleak) less than or equal to 2%
4. Foil faced insulated heat exchanger section
5. Bottom or side return air applications
6. Heavy-gage steel cabinet with durable finish
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33.5
Unit Width: 21
Family Description: Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE
High-Fire Input Capacity: 80000
High-Fire Output Capacity: 64,000
Min. Circuit: 15.3
Model Efficiency: 0.8
Motor Speed Type: Multi Speed ECM
NOX Burner Type: Low NOx
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits: Higher reliability and quality
Durable and long igniter life
Provisions for electronic air cleaner and humidifier
Energy Efficient and quiet circulation
Self-diagnostic control board with constant memory
Simple installation and setup
Quiet and simple operation
Category: Gas Furnace
Family: GCES80
Product ID Bar Code: GCES800805CX
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 120

Documents:

Nomenclature

Nomenclature

Installation Manual

Product Brochure

Nomenclature

Logo

Warranty Certificate

Specification Sheet

Wire Diagram

Warranty Certificate

Accessories

Dimensional Drawing

Installation Manual

Parts Manual

Logo

Primary Product Image

Product Brochure

Service Manual

Specification Sheet

Warranty Certificate

Wire Diagram
