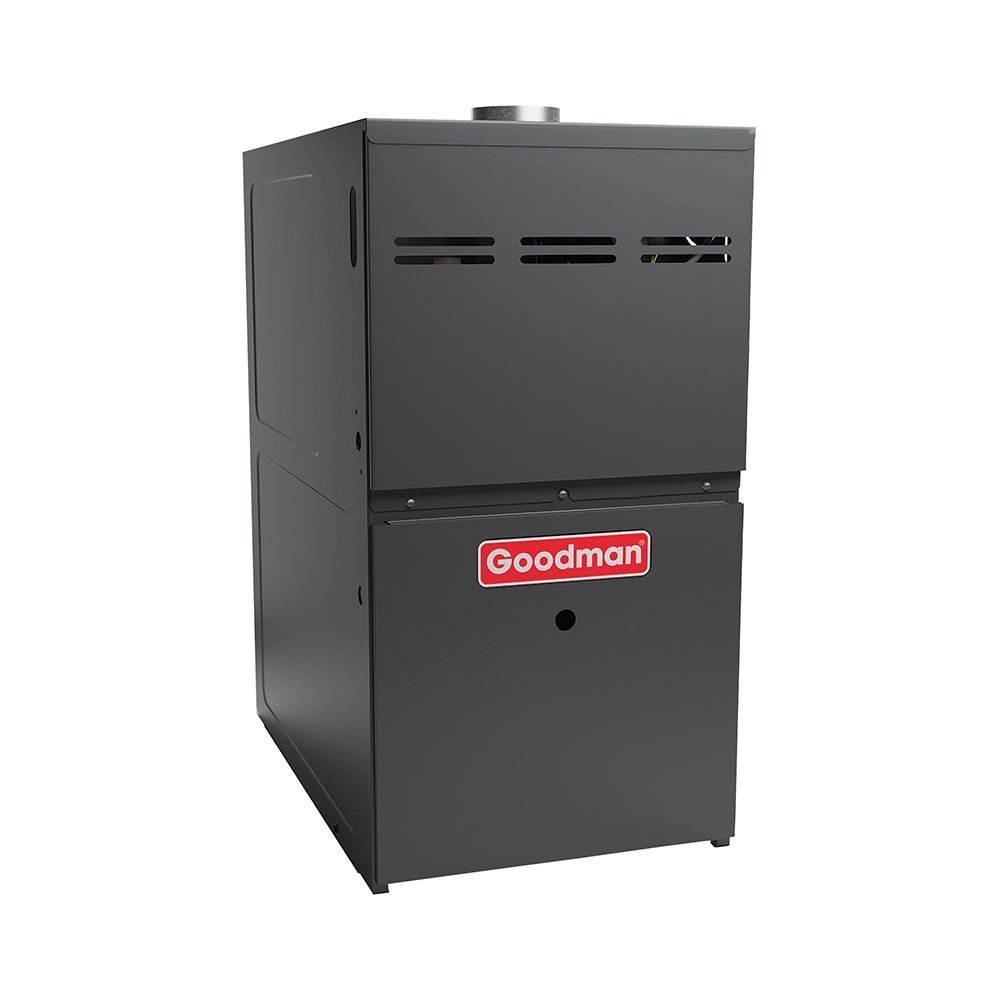

Goodman 80% AFUE Gas Furnace Multi Speed ECM, Two Stage Convertible, GCEC800603BX

PRODUCT: GCEC800603BX

Specifications:

• 1. Heavy-duty aluminized-steel tubular heat exchanger
• 2. Efficient and quiet variable-speed Blower
• 3. ComfortBridge™ Communicating System compatible
• 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
• 5. Silicon Nitride igniter
• 6. Two-Stage gas valve

Warranty:

Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Product Attributes:

AFUE: 80
Airflow Rate High Heating: 1110
Airflow Rate High Heating: 780
Brand: Goodman
Cabinet Features:
1. Multi-position installation: Downflow, horizontal left or right
2. Convenient left or right connection for gas and electrical service
3. Cabinet air leakage (Qleak) less than or equal to 2%
4. Fully insulated heat exchanger and blower section
5. Bottom or side return air applications
6. Heavy-gage steel cabinet with durable finish
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33.5
Unit Width: 17-1/2
Family Description:
Two-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
High-Fire Input Capacity:
60000
High-Fire Output Capacity:
48,000
keywords:
GCEC800603BX
Min. Circuit:
8.7
Model Efficiency:
0.8
Motor Speed Type:
Multi Speed ECM
NOX Burner Type:
Low NOx
Power Frequency:
60
Power Phase:
1
Power Voltage:
115
Product Benefits:
High reliability and quality
Durable and long igniter life
Provisions for electronic air cleaner and humidifier
Quiet and Economical heating
Energy Efficient and quiet circulation
Self-diagnostic control board with constant memory
Operates on two-stage or single-stage thermostats
Easy Connection for EAC and Humidifier
Category:
Gas Furnace
Family:
GCEC80
Product ID Bar Code:
GCEC800603BX
Prop65 Label Required:
TRUE
Unit Type:
Indoor
Unit Weight:
107
