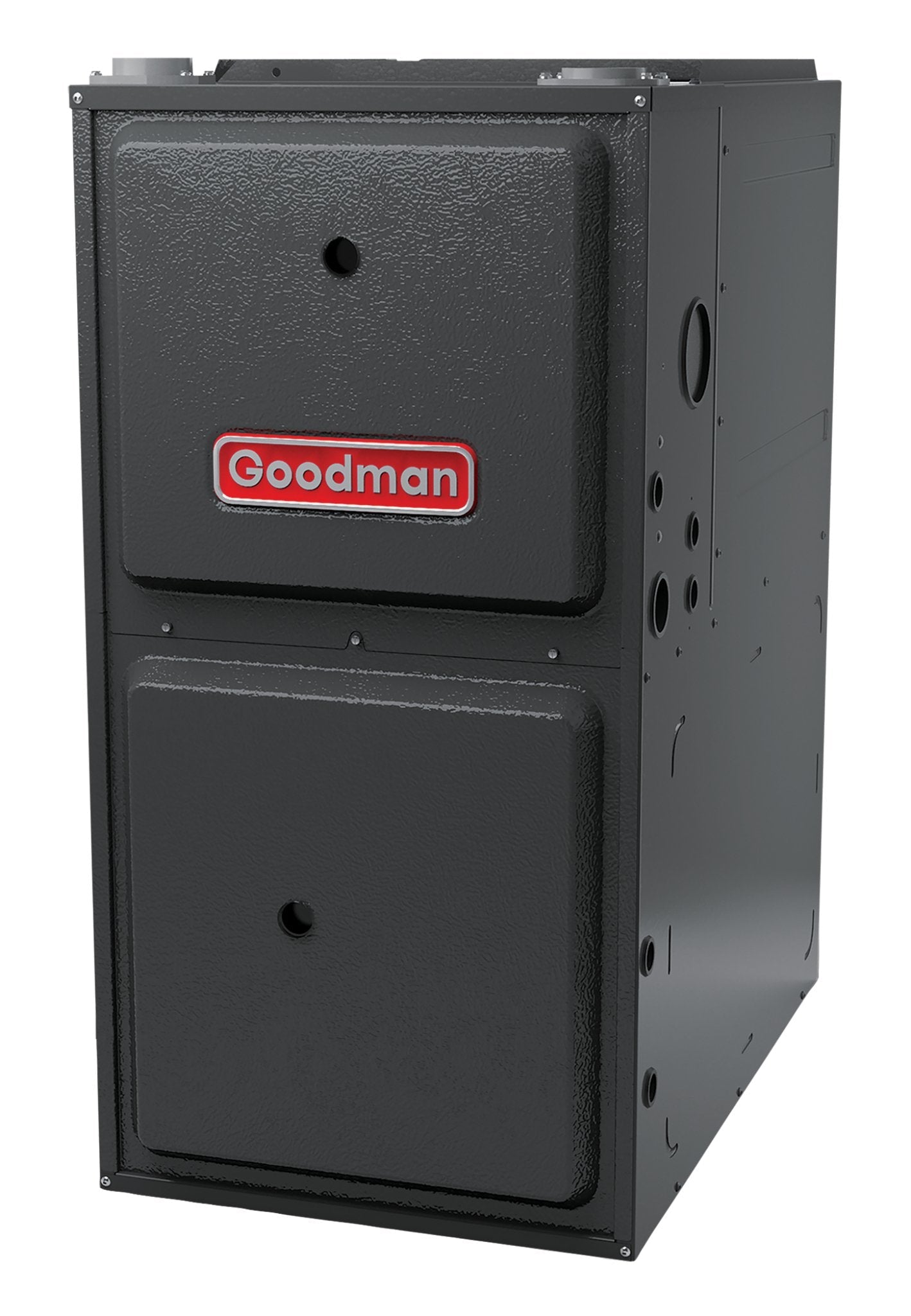

Goodman 40,000 Btu Furnace 80% Upflow Horizontal Single Stage GM9S800403AN

Add this product to cart for ADDITIONAL SAVINGS!

Goodman Furnace Model Number: GM9S800403AN

Goodman Specifications Sheet Click HERE

FURNACE: GM9S800403AN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. "Silicon Nitride igniter"
3. Color-coded low-voltage terminals
4. Multi-speed ECM blower motor with continuous fan speed
5. Fault code LED Output
6. Single-Stage gas Valve
7. Single-speed inducer draft blower

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
• ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Registered parts, residential: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - LIFETIME PARTS
• Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS

PRODUCT ATTRIBUTES:

• AFUE: 80
• Airflow Rate High Heating: 697

o             Brand: Goodman

• Cabinet Features: Installation:– GM9S80 -upflow, horizontal left or right– GC9S80- downflow, horizontal left or right.

Convenient left or right connection for gas and electrical service.

Heavy-gauge steel cabinet with durable baked-enamel finish.

Foil faced insulated heat exchanger

Class:  Gas Furnace

Unit Depth: 28

Unit Height: 33-3/8

Unit Width: 14

Family Description:  Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE

High-Fire Input Capacity: 40000

High-Fire Output Capacity: 32,000

Min. Circuit: 8.7

Model Efficiency:  0.8

Motor Speed Type: Nine Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits:  High reliability and quality

                              Durable and long-igniter life

                              Provisions for electronic air cleaner and humidifier

                              Energy Efficient and quiet circulation

                              Self-diagnostic control board with constant memory

                              Simple installation and setup

                              Quiet and simple operation

Category: Gas Furnace

Family: GM9S80

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 86

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)
