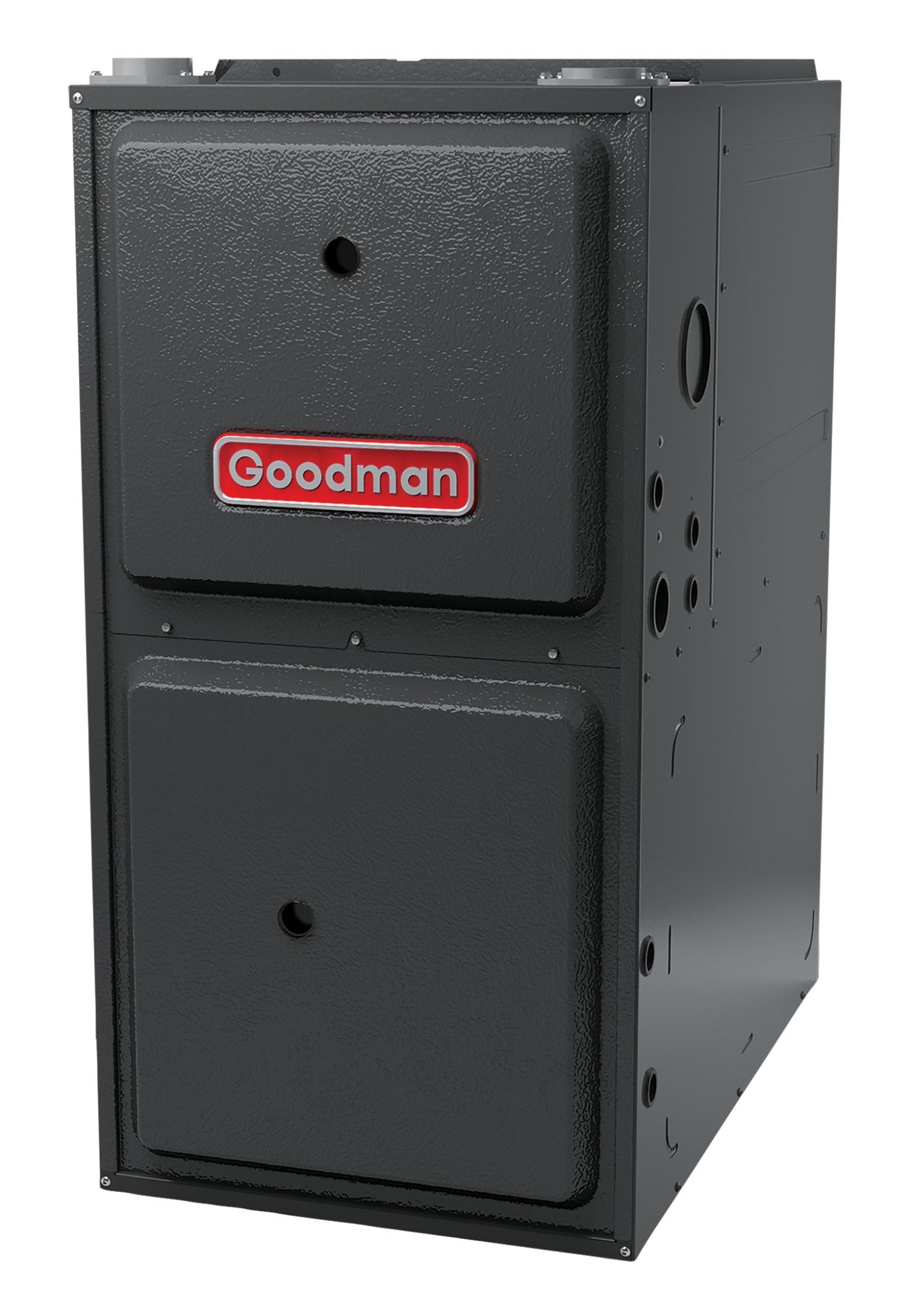

Goodman 96% gas furnace nine speed ecm single stage GM9S960603BN

Add this product to cart for ADDITIONAL SAVINGS!

Goodman Furnace Model Number: GM9S960603BN

Goodman Specifications Sheet Click HERE

FURNACE: GM9S960603BN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. "Silicon Nitride igniter"
3. Color-coded low-voltage terminals
4. Multi-speed ECM blower motor with continuous fan speed
5. Fault code LED Output
6. Single-Stage gas Valve
7. Single-speed inducer draft blower

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
• ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Registered parts, residential: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - LIFETIME PARTS
• Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
• HEAT EXCHANGER - 20 YEARS PARTS

PRODUCT ATTRIBUTES:

AFUE 96

Airflow Rate High Heating: 1200

Brand: Goodman

Class: Gas Furnace

Unit Depth: 28

Unit Height: 33-3/8

Unit Width: 17-1/2

Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE

High-Fire Input Capacity: 60000

High-Fire Output Capacity: 57660

Min. Circuit: 10.3

Model Efficiency: 0.96

Motor Speed Type: Nine Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits:

1. High reliability and quality
2. Faster condensate water drainage and no unit water leakage
3. Durable and long igniter life
4. Provisions for electronic air cleaner and humidifier
5. Energy Efficient and quiet circulation
6. Self-diagnostic control board with constant memory
7. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
8. Tax Credit
9. Simple installation and setup
10. Easy Connection for EAC and Humidifier
11. Extra option for Air flow
12. High static airflow capability
13. Lower NOx emission

Category: Gas Furnace

Family: GM9S96

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 111
