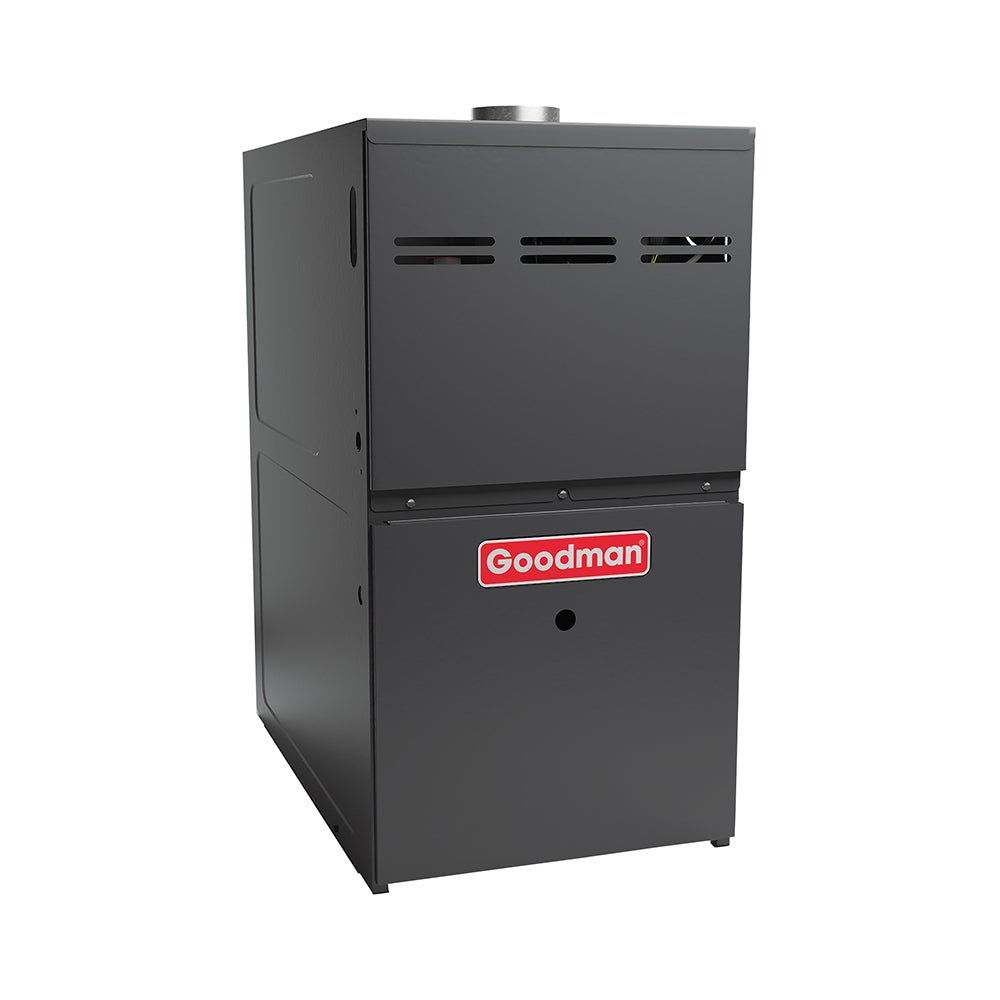

Goodman 80% AFUE Gas Furnace Variable Speed ECM, Two Stage Convertible, GCVC800603BX

PRODUCT: GCVC800603BX

Specifications:

• 1. Heavy-duty aluminized-steel tubular heat exchanger
• 2. Efficient and quiet variable-speed Blower
• 3. ComfortBridge™ Communicating System compatible
• 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
• 5. Silicon Nitride igniter
• 6. Two-Stage gas valve

Warranty:

Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Product Attributes:

AFUE: 80
Airflow Rate High Heating: 1110
Airflow Rate High Heating: 940
Brand: Goodman
Cabinet Features:
1. Multi-position installation: downflow, horizontal left or right
2. Convenient left or right connection for gas and electrical service
3. Cabinet air leakage (Qleak) less than or equal to 2%
4. Fully insulated heat exchanger and blower section
5. Bottom or side return air applications
6."Heavy-gage steel cabinet with durable finish"
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33.3
Unit Width: 17-1/2
Family Description:
ComfortBridge™-Compatible Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
High-Fire Input Capacity: 60000
High-Fire Output Capacity: 48,000
Min. Circuit: 7.75
Model Efficiency: 0.8
Motor Speed Type: Variable Speed ECM
NOX Burner Type: Low NOx
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits:
1. High reliability and quality
2. Airflow system gently ramps up or down according to heating or cooling demand and provides better comfort
3. Capable of using non communicating single-stage thermostats
4. Durable and long igniter life
5. Operates on single-stage thermostats
Category: Gas Furnace
Family: GCVC80
Product ID Bar Code: GCVC800603BX
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 105
