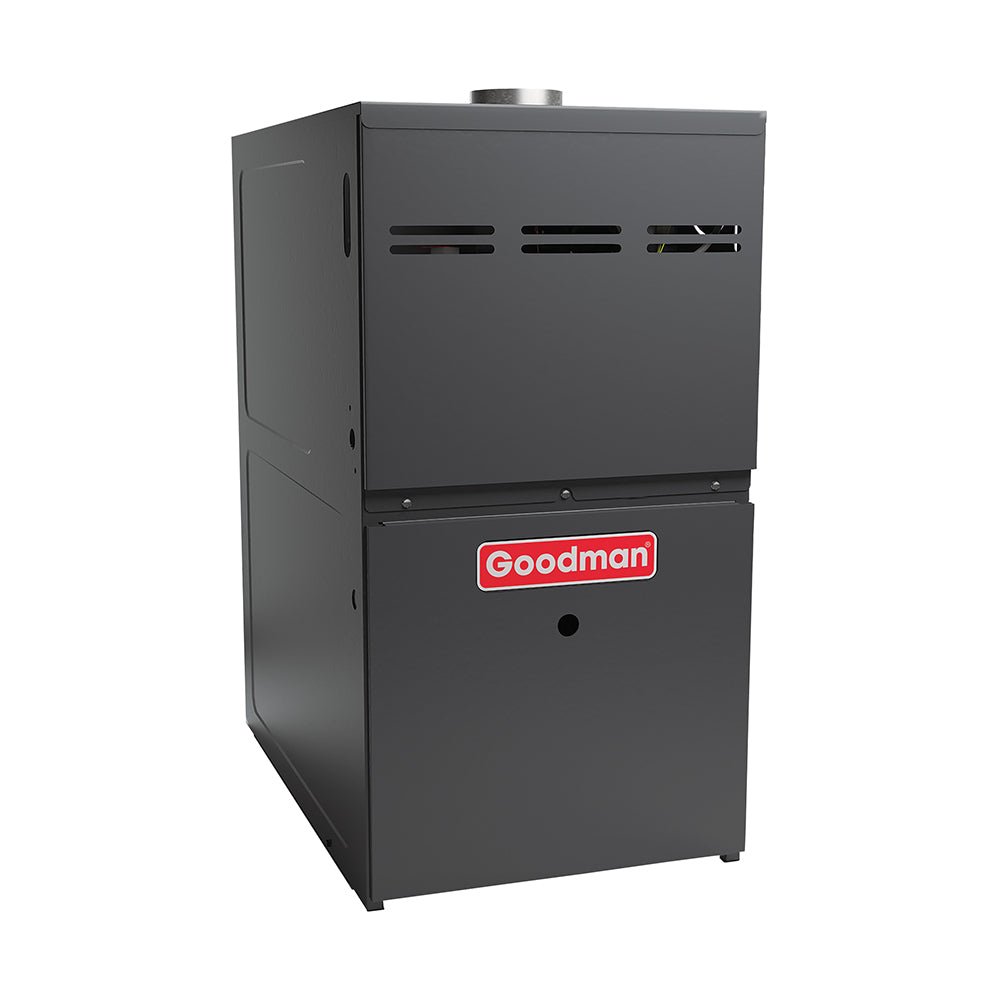

Goodman 96% AFUE Gas Furnace Multi Speed ECM, Single Stage, GC9S960603BN

PRODUCT: GC9S960603BN

Specifications:

Heavy-duty aluminized-steel tubular heat exchanger
Stainless-steel secondary heat exchanger
Single-stage gas valve
Durable Silicon Nitride igniter
Quiet single-speed induced draft blower
Self-diagnostic control board with constant memory fault code history output to a LED
All models comply with California 40 ng/J Low NOx emissions standard
Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019
AHRI Certified
ETL Listed

Warranty:

Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - 79 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Product Attributes:

AFUE: 96
Brand: Goodman
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 17-1/2
Family Description: Single Stage Multi-Speed ECM Downflow Gas Furnace Up to 96% AFUE
High-Fire Input Capacity: 60000
High-Fire Output Capacity: 57660
Min. Circuit: 10.1
Model Efficiency: 0.96
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits:
1. High reliability and quality
2. Faster condensate water drainage and no unit water leakage
3. Durable and long igniter life
4. Provisions for electronic air cleaner and humidifier
5. Energy Efficient and quiet circulation
6. Lower NOx emission
7. Self-diagnostic control board with constant memory
8. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards
9. Operates on two-stage or single-stage thermostats
10. Easy Connection for EAC and Humidifier
Category: Gas Furnace
Family: GC9S96
Product ID Bar Code: GC9S960603BN
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 116
