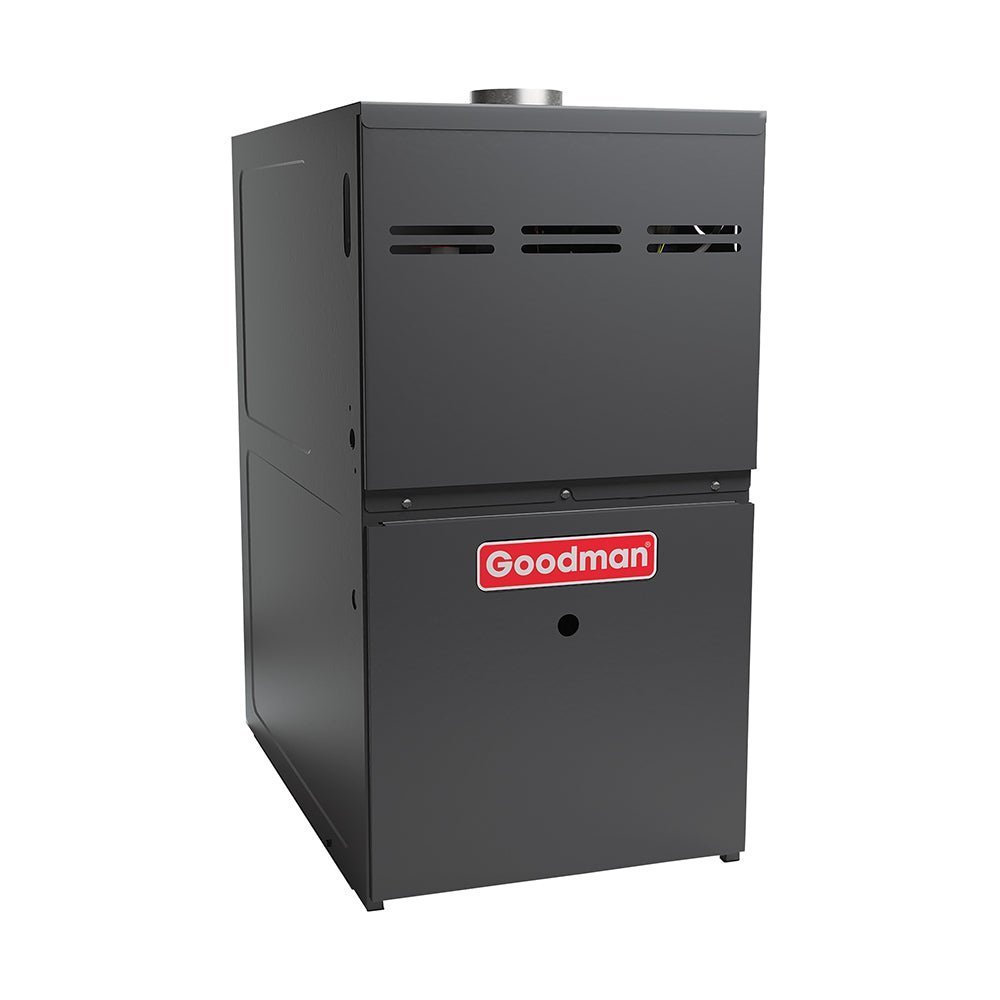

Goodman 96% AFUE Gas Furnace Multi Speed ECM, Single Stage, GC9S960804CN

PRODUCT: GC9S960804CN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. Efficient and quiet variable-speed Blower
3. Integrated communicating ComfortBridge™ technology
4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
5. Stainless-steel sloped secondary heat exchanger
6. Silicon Nitride igniter
7. Dual 7-segment display
8. Color-coded low-voltage terminal
9. Two-Stage gas valve
10. All models comply with California 40 ng/J
11. AHRI Certified, ETL Listed
12. Energy Star
13. Two-stage gas valve
14. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers

Warranty:

Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - 79 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Product Attributes:

AFUE: 96
Brand: Goodman
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 21
Family Description: Single Stage Multi-Speed ECM Downflow Gas Furnace Up to 96% AFUE
High-Fire Input Capacity: 80000
High-Fire Output Capacity: 76880
keywords: GC9S960804CN
Min. Circuit: 13.7
Model Efficiency: 0.96
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits:
1. High reliability and quality
2. Faster condensate water drainage and no unit water leakage
3. Durable and long igniter life
4. Provisions for electronic air cleaner and humidifier
5. Energy Efficient and quiet circulation
6. Lower NOx emission
7. Self-diagnostic control board with constant memory
8. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards
9. Operates on two-stage or single-stage thermostats
10. Easy Connection for EAC and Humidifier
Category: Gas Furnace
Family: GC9S96
Product ID Bar Code: GC9S960804CN
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 141
