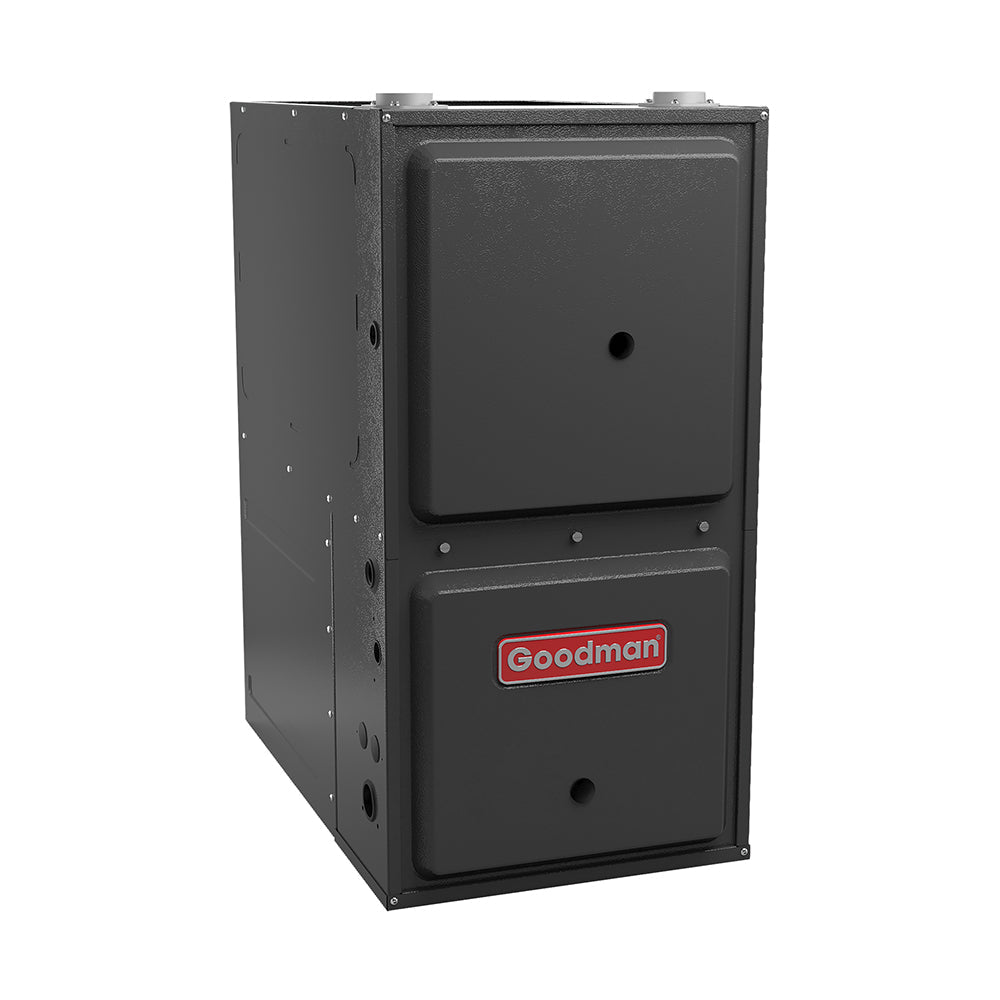

Goodman 97% AFUE Gas Furnace Variable Speed ECM Modulating, GCVM971005CN

PRODUCT: GCVM971005CN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. Efficient and quiet variable-speed Blower
3. Stainless-steel sloped secondary heat exchanger
4. Self-calibrating modulating gas valve
5. ComfortNet™ Communicating System compatible
6. Silicon Nitride igniter
7. Dual 7-segment display
8. Color-coded low-voltage terminals
9. Modulating gas valve
10. All models comply with California 40 ng/J
11. AHRI Certified - ETL Listed
12. Energy Star
13. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers

Warranty:

Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
HEAT EXCHANGER - 79 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Product Attributes:

AFUE: 97
Brand: Goodman
Cabinet Features:
1. Multi-position installation: downflow, horizontal left or right
2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
3. Easy to install top venting with optional side vent
4. Convenient left or right connection for gas and electrical service
5. Cabinet air leakage (Qleak) less than or equal to 2%
6. Fully insulated heat exchanger and blower section
7. Bottom or side return air applications
8. Heavy-gage steel cabinet with durable
Class:
Gas Furnace
Unit Depth:
29
Unit Height:
34-1/2
Unit Width:
21
Family Description:
ComfortBridge™-Compatible Modulating Variable-Speed ECM Gas Furnace up to 98% AFUE
High-Fire Input Capacity:
100000
High-Fire Output Capacity:
97000
Min. Circuit:
14.4
Model Efficiency:
0.97
Motor Speed Type:
Variable Speed ECM
NOX Burner Type:
Low NOx
Power Frequency:
60
Power Phase:
1
Power Voltage:
115
Product Benefits:
1. High reliability and quality
2. Airflow system gently ramps up or down according to heating or cooling demand and provides better comfort
3. Faster condensate water drainage and no unit water leakage
4. Auto-configure for each installation
5. Capable of using communicating and non communicating two-stage or single-stage thermostats
6. Durable and long igniter life
7. Self-diagnostic control board with constant memory fault code history output
8. Provisions for electronic air cleaner and humidifier
9. Energy efficient and precise comfort
10. Lower NOx emission
11. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
12. Tax Credit
13. Easy Connection for EAC and Humidifier
Category:
Gas Furnace
Family:
GCVM97
Product ID Bar Code:
GCVM971005CN
Prop65 Label Required:
TRUE
Unit Type: Indoor
