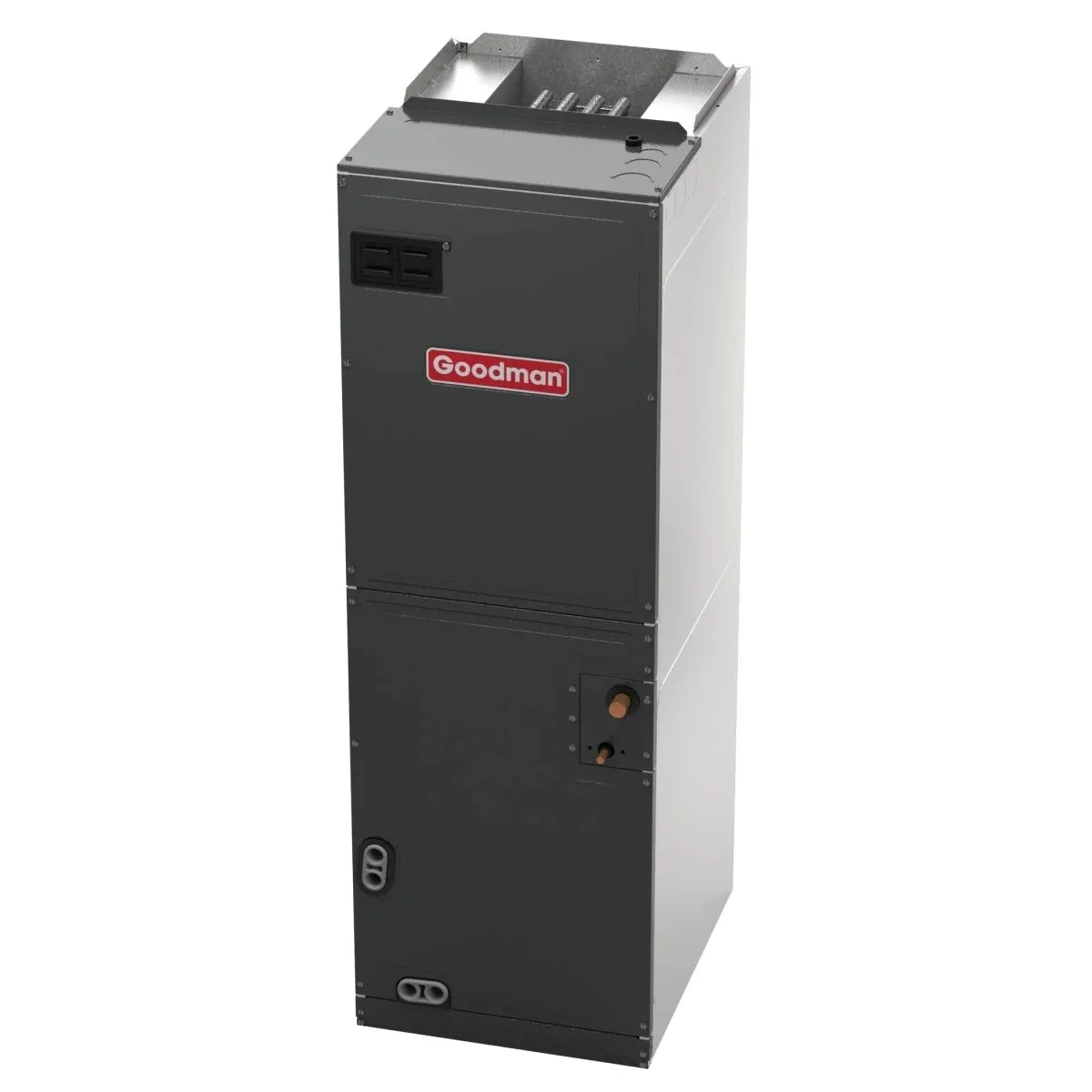

Goodman Amst 4.0 Ton Air Handler Single Speed Motor AMST48CU1400

Model: AMST48CU1400

Goodman Specifications Sheet Click HERE

Air Handler : AMST48CU1400

Specifications

Internal factory-installed thermal expansion valves for cooling and heat pump applications

Direct drive, 9-speed ECM blower motor

Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models

All-aluminum evaporator coil with high-performance coated fin stock

Coil mounting track for quick repositioning

Optimized for use with R-410A refrigerant

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

3 kW – 25 kW electric heater kits

AHRI certified

ETL listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: Not Available

Registered parts, multi-family: Not Available

Registered parts, commercial: Not Available



Product Attributes

Brand: Corporate

Cabinet Features:

Rigid SmartFrame cabinet

Horizontal or vertical configuration capabilities

21” depth for easier attic access

DecaBDE-free thermoplastic drain pan with secondary drain connections

Screw-less sides and back helps to reduce condensation when installed in humid locations

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Galvanized, leather grain-embossed finish

Glue-less cabinet insulation retention

Tool-less filter access

Class: Air Handler

Unit Depth: 21

Unit Height: 58

Unit Width: 21

Family Description: Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons

Max. Voltage: 240

Min. Circuit: 7.1

Min. Voltage: 208

Motor Speed Type: Single Speed

Power Frequency: 50/60

Power Phase: 1

Power Voltage: 208/240

Product Benefits:

All-Aluminum tube/aluminum fin coil

Direct-drive, resilient-mount, 9-speed ECM motor

Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW

High-efficiency evaporator coil

Quiet operation

Primary/secondary drain connection in a high-temperature plastic drain pan

Suitable for free-return installation (non-ducted return air)

Galvanized-steel construction

Factory-installed pull-type disconnect

Easy service access

AHRI Certified

ETL Listed

Category: Air Handler

Family: AMST

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 4 tons

Unit Type: Indoor

Unit Weight: 153
