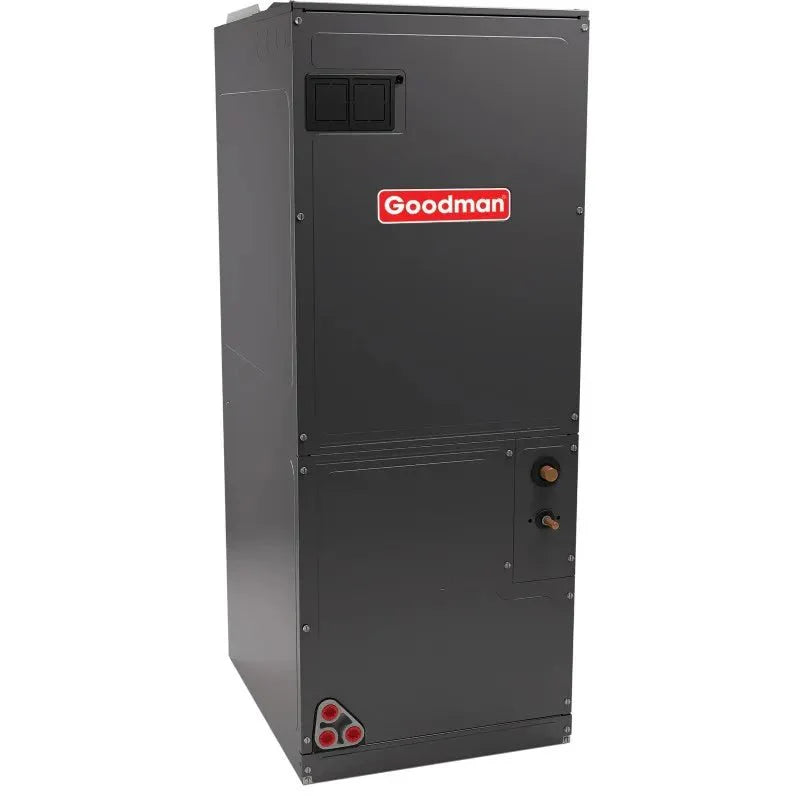

Goodman Mbvc air handler variable speed ecm motor MBVC2001AA-1

Model: MBVC2001AA-1

Goodman Specifications Sheet Click HERE

Blower: MBVC2001AA-1

Specifications:

1. Variable-speed ECM blower motor
2. Integrated communicating ComfortBridge™ technology
3. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
4. Advanced configuration of the airflow and tonnage in communicating mode
5. Provides constant CFM over a wide range of static pressure conditions independent of duct system
6. CFM indicator
7. Provides adjustable low CFM for efficient fan-only operation
8. Improved humidity and comfort control
9. Built-in compatibility with multi-stage heat pump and cooling applications
10. 3 kW – 21 kW electric heat kits
11. Blower section usable as electric heater
12. AHRI certified
13. ETL listedory-installed thermal expansion valves for cooling and heat pump applications

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Brand: Corporate

Cabinet Features:

1. Horizontal or vertical configuration capabilities
2. 21" depth for easier attic access
3. Foil-faced insulation covers the internal casing to reduce cabinet condensation
4. Galvanized, leather grain-embossed finish
5. Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
6. Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Class: Air Handler

Family Description: Multi-Position, Variable-Speed ECM-Based, Modular Blower ComfortBridge™ Compatible

Max. Voltage: 253

Min. Circuit: 6.5

Min. Voltage: 197

Motor Speed Type: Variable Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208-230

Category: Air Handler

Family: MBVC_1

Prop65 Label Required: TRUE

Unit Type: Indoor
