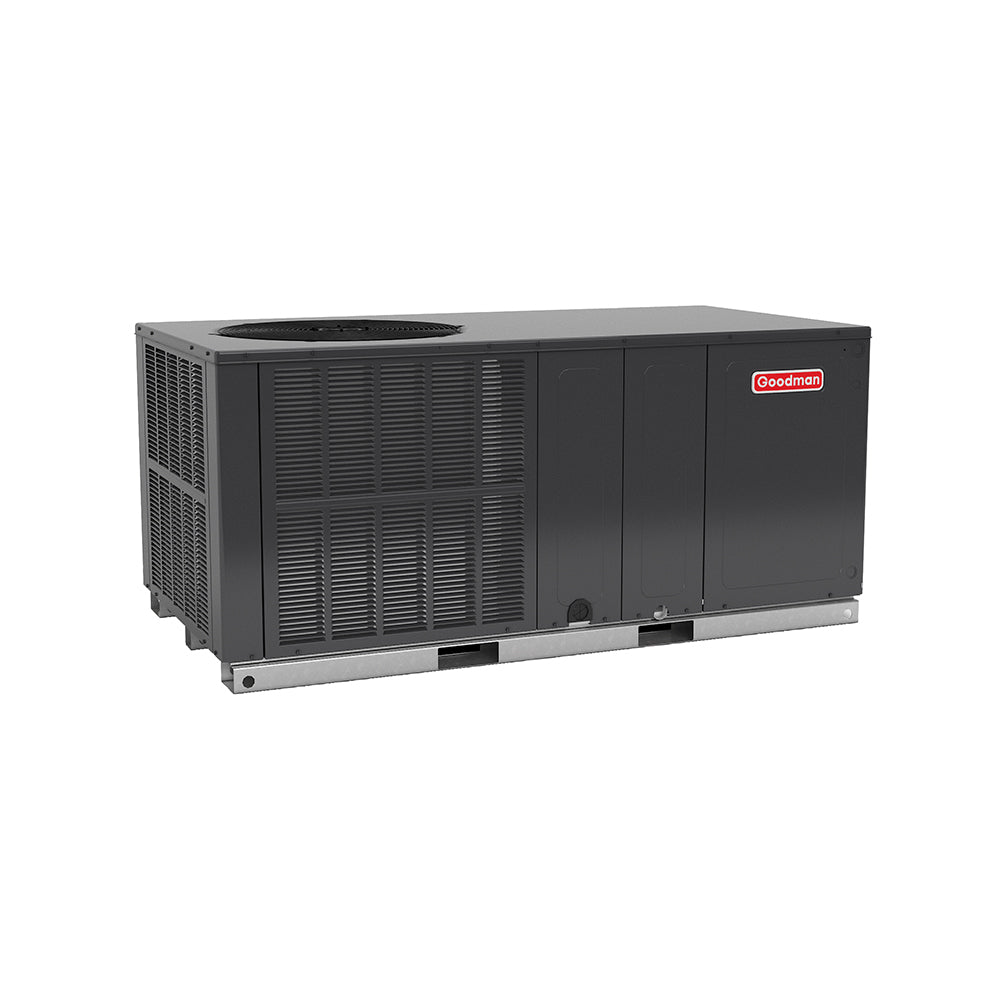

Goodman 3.5 Ton packaged air conditioner 13.4 seer single stage horizontal GPCH34241

Model: GPCH34241

Goodman Specifications Sheet Click HERE

Outdoor: GPCH34241

Specifications:

Energy-efficient compressor

Multi-speed ECM indoor blower motor

Quiet horizontal discharge

Copper tube/aluminium fin condenser coil

All-aluminium evaporator coil

Totally enclosed, permanently lubricated condenser fan motor

Fully charged system

5 kW to 20 kW electric heat kit available as a field-installed option

AHRI Certified

ETL Listed

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

Airflow Rate High Cooling: 1300

Airflow Rate High Heating: 1300

Brand: Goodman

Cabinet Features:

Heavy-gauge galvanized-steel cabinet with attractive Nickel Gray powder-paint finish

Compressor sound blanket

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

Fully insulated blower compartment has convenient access panels

Louvered condenser coil protection

Class: Packaged Air Conditioner

Compressor Stages: Single Stage

Compressor Type: Scroll

Cooling Capacity Rated: 40000

Unit Depth: 34

Unit Height: 32.5

Unit Width: 66

Family Description: Packaged Air Conditioner, 13.4 SEER2, 2 to 5 Tons

Max. Voltage: 253

Min. Circuit: 29.2

Min. Voltage: 197

Model Efficiency: 13.4 SEER2

Motor Speed Type: Multi Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Packaged Air Conditioner

Family: GPCH3

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 3.5 tons

Unit Type: Outdoor

Unit Weight: 375
