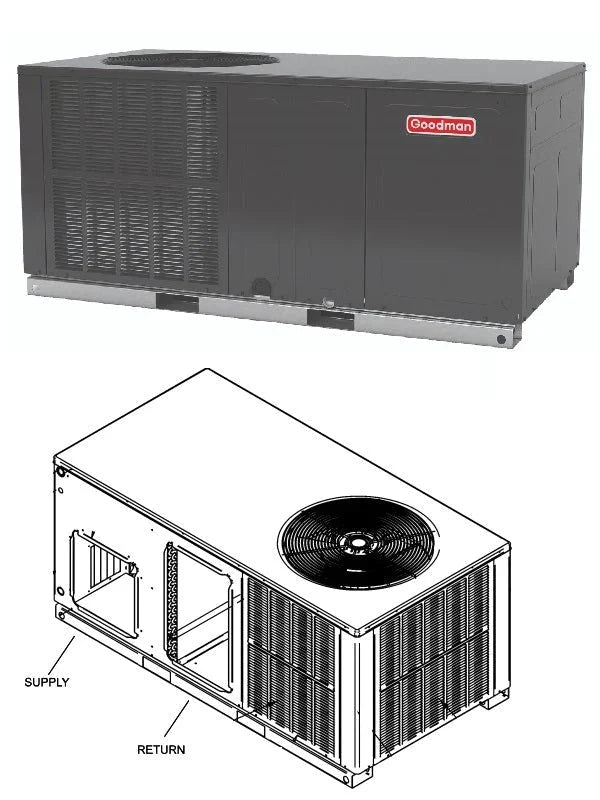

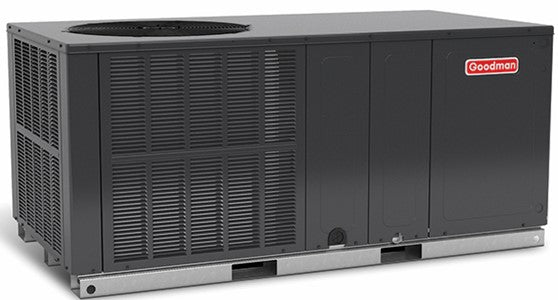

Goodman 3.0 Ton Heat Pump Package Unit 15.2 Seer2 16 Seer GPHH53641

CONDENSER: GPHH53641

Goodman Specifications Sheet Click HERE

Specifications

High-efficiency scroll compressor

Multi-speed ECM indoor blower motor

Copper tube/aluminum fin condenser coil

All-aluminum evaporator coil

Totally enclosed, permanently lubricated condenser fan motor

Fully charged system

Quiet horizontal discharge

Electric heat kit available as a field-installed option

AHRI Certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Airflow Rate High Cooling: 1200

Airflow Rate High Heating: 1200

Brand: Goodman

Cabinet Features:

Heavy-gauge galvanized-steel cabinet

Compressor sound blanket

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

Attractive Nickel Gray powder-paint finish

Fully insulated blower compartment has convenient access panels

Louvered condenser coil protection

One footprint, three heights

Class: Packaged Heat Pump

Compressor Stages: Single Stage

Compressor Type: Scroll

Cooling Capacity Rated: 34800

Unit Depth: 34

Unit Height: 32.5

Unit Width: 66

Family Description: High-Efficiency Packaged Heat Pump Up to 15.2 SEER2/ 6.7 HSPF2

Heating Capacity Rated: 32200

Max. Voltage: 253

Min. Circuit: 22.7

Min. Voltage: 197

Model Efficiency: 15.2 SEER2

Motor Speed Type: Variable Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Packaged Heat Pump

Family: GPHH5

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 3 tons

Unit Type: Outdoor

Unit Weight: 375
