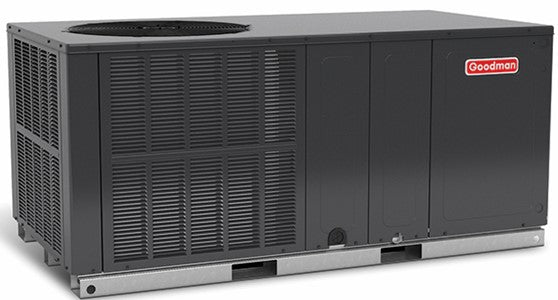

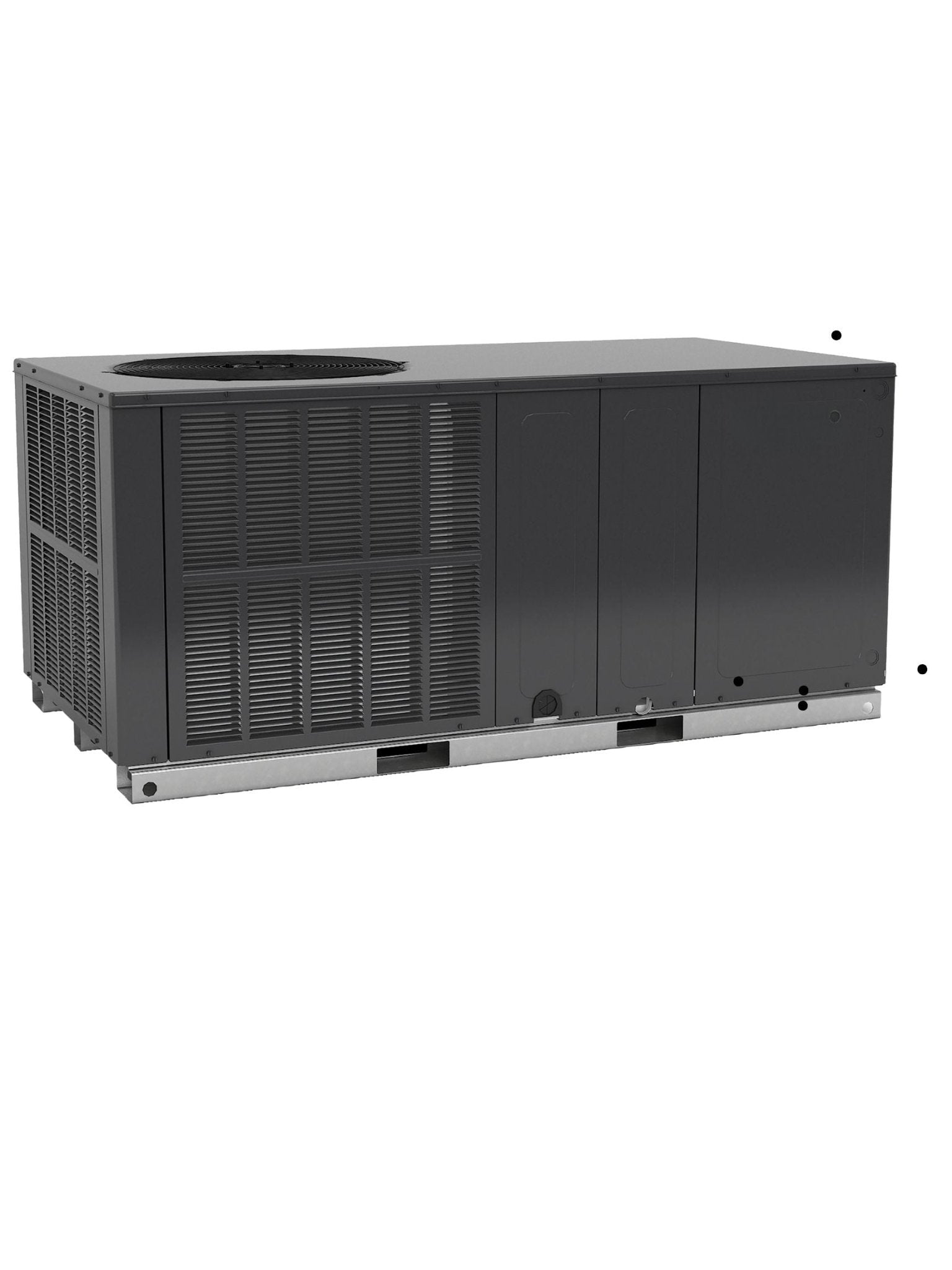

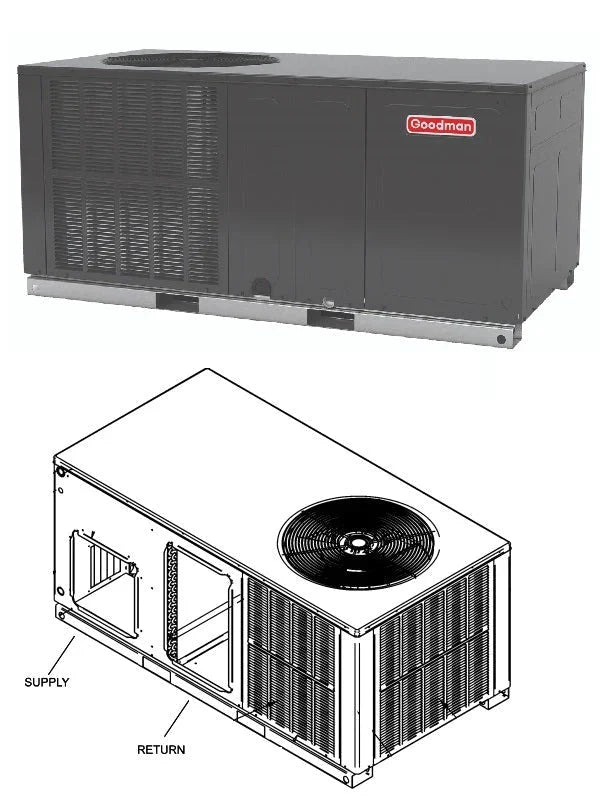

Goodman 5.0 Ton Heat Pump Package Unit 15.2 Seer2 16 Seer GPHH56041

CONDENSER: GPHH56041

Specifications

High-efficiency scroll compressor

Multi-speed ECM indoor blower motor

Copper tube/aluminum fin condenser coil

All-aluminum evaporator coil

Totally enclosed, permanently lubricated condenser fan motor

Fully charged system

Quiet horizontal discharge

Electric heat kit available as a field-installed option

AHRI Certified

ETL Listed

Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Airflow Rate High Cooling: 1700

Airflow Rate High Heating: 1700

Brand: Goodman

Cabinet Features:

Heavy-gauge galvanized-steel cabinet

Compressor sound blanket

Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193

Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193

Attractive Nickel Gray powder-paint finish

Fully insulated blower compartment has convenient access panels

Louvered condenser coil protection

One footprint, three heights

Class: Packaged Heat Pump

Compressor Stages: Two Stage

Compressor Type: Scroll

Cooling Capacity Rated: 57250

Unit Depth: 34

Unit Height: 36

Unit Width: 66

Family Description: High-Efficiency Packaged Heat Pump Up to 15.2 SEER2/ 6.7 HSPF2

Heating Capacity Rated: 54500

Max. Voltage: 253

Min. Circuit: 36.4

Min. Voltage: 197

Model Efficiency: 15.2 SEER2

Motor Speed Type: Variable Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Packaged Heat Pump

Family: GPHH5

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 5 tons

Unit Type: Outdoor

Unit Weight: 405

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)
