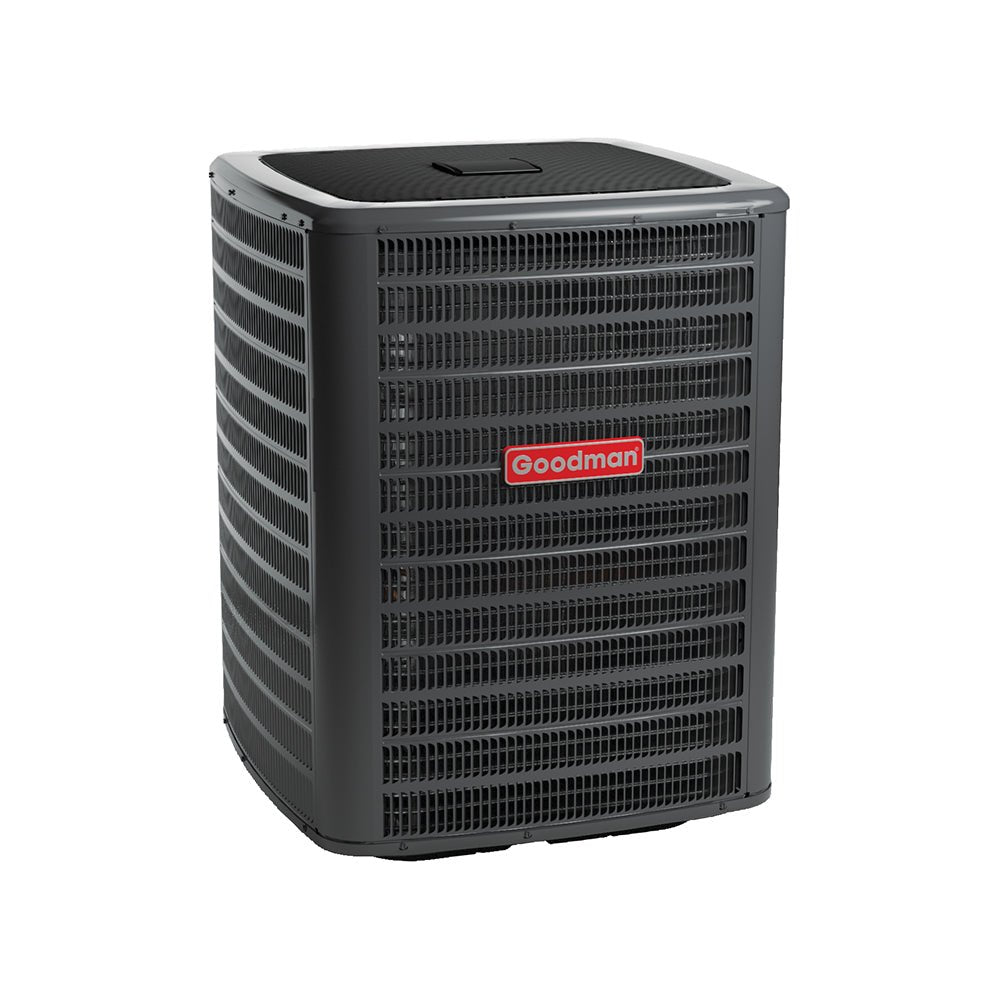

Goodman 2.0 Ton split heat pump 20 seer variable GSZH502410

Name: Goodman 2.0 Ton split heat pump 20 seer variable GSZH502410
Brand: Goodman
SKU: GSZH502410
Price: 7357.00 USD
Availability: InStock

$7,357.00 USD

Sale Sold out

Quantity

Condenser: GSZH502410

Goodman Specifications Sheet Click HERE

Specifications:

Variable-speed swing and scroll compressors
High-efficiency variable speed ECM condenser fan motor
Factory-installed filter drier
Factory-installed suction line accumulator
Factory-installed compressor crankcase heater
Factory-installed high-capacity muffler
Factory-installed high and low-pressure switches
High-density foam compressor sound blanket
Factory-installed sensors monitoring coil and ambient temperature
SmartShift® technology with short-cycle protection to ensure quiet, reliable defrost
In communicating mode, only two low voltage wires to the outdoor unit are required
Contactor with lug connection
Field-selectable boost mode increases compressor speed during unusually high loads
Customized control algorithms
Fully charged for fifteen feet of tubing length
AHRI Certified-ETL Listed
Color-coded terminal strip for non-communicating set-up
Copper tube & enhanced aluminum fin coil.

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes

Airflow Rate High Cooling: 720

Airflow Rate High Heating: 720

Airflow Rate Low Cooling: 490

Airflow Rate High Heating: 490

Brand: Goodman

Cabinet Features:

Heavy-gauge galvanized steel cabinet and louvered coil guards
Service valves with sweat connections and easy-access gauge ports
Engineered sound control top design
Wire fan discharge grille
Baked-on powder-paint finish with 500-hour salt-spray approval
Single-panel access to controls with space for field-installed accessories
Service port and controls are accessible while unit is operating
Compact footprint
Rust-resistant screws
When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Class: Split Heat Pump

Compressor Stages: Variable

Compressor Type: Swing

Cooling Capacity Rated: 23400

Unit Depth: 35-1/2

Unit Height: 38-1/4

Unit Width: 35-1/2

Family Description: High-Efficiency, Communicating, Split System Heat Pump Up to 23.5 SEER & 10 HSPF

Heating Capacity Rated: 23600

Max. Voltage: 253

Min. Circuit: 15.2

Min. Voltage: 197

Model Efficiency: 20 SEER

Motor Speed Type:

Variable Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits:

Variable swing and scroll compressors feature more efficient operation, higher tolerance to liquid refrigerant, less mechanical failures and smoother, quieter operation when compared to reciprocating compressors and single stage compressors.
The top performance of an electronically commutated motor (ECM) provide airflow at variable speeds, matching indoor comfort needs while reducing energy consumption and system noise compared to a single-speed motor.
Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter's residual system contamiN/Ants and moisture.
Ensures refrigerant is ready even in extreme exterN/Al temperatures.
Prevents condensation of refrigerant in the crankcase of a compressor.
Reduces pass-through vibration noise from compressor operation.
A high-pressure switch prevents the system from operating at extremely high pressures by shutting off the compressor circuit if the pressure exceeds the desigN/Ated rating. When a refrigeration system operates at lower than normal pressures, the low-pressure switch prevents freezing from working its way to the compressor.
High-density foam compressor blanket provides noise reduction when the compressor is in operation.
Consistent and concise monitoring helps to ensure that the system is operating efficiently, regardless of the weather.
Time-delay defrost technology allows for a reliable, quiet, and smooth transition when units enter defrost mode.
By simplifying the communication connection to two low voltage wires to the outdoor unit, technicians may elimiN/Ate the need to run additioN/Al thermostat wiring.
Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
When peak performance is needed, boost mode increases compressor speed to provide additioN/Al performance.
Proprietary, self-contained sequence of actions designed to help control system operation for energy efficient performance and enhanced reliability.
Fully charged with refrigerant sufficient for 15’ of tubing length to assist with easy installation of unit.
Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
A straight-forward, color-coded termiN/Al strip for non-communicating set-up helps to simplify installation.
Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.
