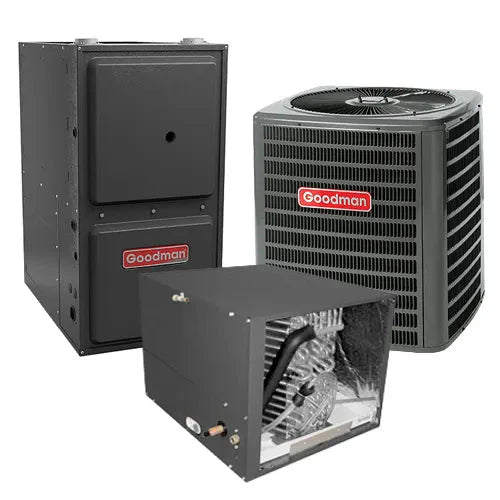

Goodman 1.5 Ton 15.2 SEER High Efficiency Gas Furnace and AC System Upflow GM9S800603BN CHPTA1822B4 GSXH501810

Model: GM9S800603BN

Goodman Specifications Sheet Click HERE

Model: CHPTA1822B4

Goodman Specifications Sheet Click HERE

Model: GSXH501810

Goodman Specifications Sheet Click HERE

FURNACE: GM9S800603BN



Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. "Silicon Nitride igniter"
3. Color-coded low-voltage terminals
4. Multi-speed ECM blower motor with continuous fan speed
5. Fault code LED Output
6. Single-Stage gas Valve
7. Single-speed inducer draft blower



Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - LIFETIME PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS



Product Attributes:

AFUE: 80

Airflow Rate High Heating: 697

Brand: Goodman

Cabinet Features:

Installation:– GM9S80 -upflow, horizontal left or right– GC9S80- downflow,horizontal left or right

Convenient left or right connection for gas and electrical service

Heavy-gauge steel cabinet with durable baked-enamel finish

Foil faced insulated heat exchanger

Class: Gas Furnace

Unit Depth: 28

Unit Height: 33-3/8

Unit Width: 14

Family Description: Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE

High-Fire Input Capacity: 60000

High-Fire Output Capacity: 32,000

Min. Circuit: 8.7

Model Efficiency: 0.8

Motor Speed Type: Nine Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits: High reliability and quality

Durable and long-igniter life

Provisions for electronic air cleaner and humidifier

Energy Efficient and quiet circulation

Self-diagnostic control board with constant memory

Simple installation and setup

Quiet and simple operation

Category: Gas Furnace

Family: GM9S80

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 86



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



COIL: CHPTA1822B4



Specifications

Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology

Optimized for use with R-401A refrigerant

Factory-installed thermal expansion valves for cooling applications

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Single-piece access panel with tight seal helps to keep conditioned air from escaping

Seal tight customized suction and liquid grommets for easy installation and removal

21" depth for easier attic access

Horizontal application

AHRI certified

ETL Listed



Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: Not Available

Registered parts, multi-family: Not Available

Registered parts, commercial: Not Available



Product Attributes:

Brand: Corporate

Class: Coil

Unit Depth: 26

Unit Height: 16.50

Unit Width: 24.75

Family Description: CHPTA AlumaFin7™ Evaporator Coil

Product Benefits: All-aluminum metallurgy provides superior corrosion resistance

Compatible with R-410A or R-22 refrigerant

Multi-louvered aluminum fin design helps support efficient heat transfer

Hydrophilic fins provide superior condensate management

7mm sized grooved aluminum tubing for enhanced turbulence of refrigerant

DecaBDE-free thermoplastic drain pan with secondary drain connections

Galvanized steel texture and parts used to help reduce corrosion on steel components

Category: Coil

Family: CHPTA

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 1.5 tons

Unit Type: Indoor

Unit Weight: 48
