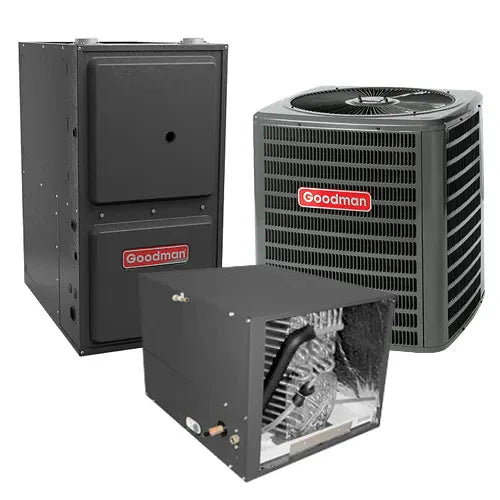

Goodman 14.5 SEER 3.0 Ton HVAC System Horizontal GM9C801004CN CHPTA3630C4 GSXN403610

Model: GM9C801004CN

Goodman Specifications Sheet Click HERE

Model: CHPTA3630C4

Goodman Specifications Sheet Click HERE

Model: GSXN403610

Goodman Specifications Sheet Click HERE

FURNACE: GM9C801004CN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. "Silicon Nitride igniter"
3. Color-coded low-voltage terminals
4. Multi-speed ECM blower motor with continuous fan speed
5. Fault code LED Output
6. Single-Stage gas Valve
7. Single-speed inducer draft blower



Warranty:

Standard warranties apply.

Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - LIFETIME PARTS

HEAT EXCHANGER - 20 YEARS PARTS

HEAT EXCHANGER - 79 YEARS PARTS

Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS



Product Attributes:

AFUE: 80

Brand: Goodman

Cabinet Features: Fully insulated, heavy-gauge steel cabinetwith durable baked-enamel finish

Class: Gas Furnace

Unit Depth: 28

Unit Height: 33-3/8

Unit Width: 17-1/2

Family Description: Two-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE

High-Fire Input Capacity: 100000

High-Fire Output Capacity: 48,000

Min. Circuit: 8.7

Model Efficiency: 0.8

Motor Speed Type: Multi Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits: High reliability and quality

Durable and long igniter life

Provisions for electronic air cleaner and humidifier

Quiet and Economical heating

Energy Efficient and quiet circulation

Self-diagnostic control board with constant memory

Operates on two-stage or single-stage thermostats

Easy Connection for EAC and Humidifier

Category: Gas Furnace

Family: GM9C80

Prop65 Label Required: TRUE

Unit Type: Indoor

Unit Weight: 107

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)



COIL: CHPTA3630C4

Specifications:

Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology

Optimized for use with R-401A refrigerant

Factory-installed thermal expansion valves for cooling applications

Rust resistant, thermoplastic drain pans featuring a low water-retention design

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Single-piece access panel with tight seal helps to keep conditioned air from escaping

Seal tight customized suction and liquid grommets for easy installation and removal

21" depth for easier attic access

Horizontal application

AHRI certified

ETL Listed



Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS



Product Attributes:

Brand: Corporate

Class: Coil

Unit Depth: 26

Unit Height: 20

Unit Width: 32.50

Family Description: CHPTA AlumaFin7™ Evaporator Coil

Product Benefits: All-aluminum metallurgy provides superior corrosion resistance

Compatible with R-410A or R-22 refrigerant

Multi-louvered aluminum fin design helps support efficient heat transfer

Hydrophilic fins provide superior condensate management

7mm sized grooved aluminum tubing for enhanced turbulence of refrigerant

DecaBDE-free thermoplastic drain pan with secondary drain connections

Galvanized steel texture and parts used to help reduce corrosion on steel components

Category: Coil

Family: CHPTA

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 3 tons

Unit Type: Indoor

Unit Weight: 66

DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)

OUTDOOR: GSXN403610



Specifications

Energy-efficient compressor

Copper tube/enahnaced aluminum fin coil-5mm diameter on 1.5-4.0 Ton

Factory-installed filter drier

Fully charged for 15' of tubing length

Service valvess with sweat connections and easy-to-access guage ports

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Tested



Warranty

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS



Product Attributes

Brand:

Goodman

Cabinet Features:

Removable grille-style top designcompliant with UL 60335-2-40

Venturi for increased velocity of airflow

Heavy-gauge galvanized-steel cabinet

Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval

Steel louver coil guard

Rust-resistant coated screws

Single-panel access to controls with spaceprovided for field-installed accessories

When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Class: Split Air Conditioner

Compressor Stages: Single Stage

Compressor Type: Rotary

Unit Depth: 29

Unit Height: 39.5

Unit Width: 29

Family Description:

Energy-Efficient Split System Air Conditioner, 13.3 SEER2, 1.5 to 5 Ton

Max. Voltage: 253

Min. Circuit: 17.0

Min. Voltage: 197

Model Efficiency: 14.3 SEER2

Motor Speed Type: PSC

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Split Air Conditioner

Family: GSXN4

Prop65 Label Required: TRUE

Tonnage: 2.5 tons

Unit Type: Outdoor

Unit Weight: 180



DOCUMENTS:

NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)

266941661.pdf (daikincloud.io)

NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)

PWGFURNSUNTA.pdf (daikincloud.io)

IM-IOG-2031.pdf (daikincloud.io)


PB-CB-GM9S80.pdf (daikincloud.io)

SS-GM9S80_GC9S80.pdf (daikincloud.io)

SM-RS6621008.pdf (daikincloud.io)
