Goodman 2.5 Ton Gas Package Unit 60,000 Btu Furnace 13.4 Seer2 Downflow Horizontal Unit GPGM33006041

Model: GPGM33006041

Goodman Specifications Sheet Click HERE

Package Unit: GPGM33006041

Specifications:

Energy-efficient compressor

Copper tube/enhanced aluminum fin coil-5mm diameter on 1.5-4.0 Ton

Factory-installed filter drier

Fully charged for 15' of tubing length

Service valvess with sweat connections and easy-to-access guage ports

Contactor with lug connection

Ground lug connection

AHRI Certified

ETL Tested

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: ALL PARTS - 10 YEARS PARTS

Product Attributes:

AFUE: 81

Airflow Rate High Cooling: 1000

Brand: Goodman

Cabinet Features:

Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish

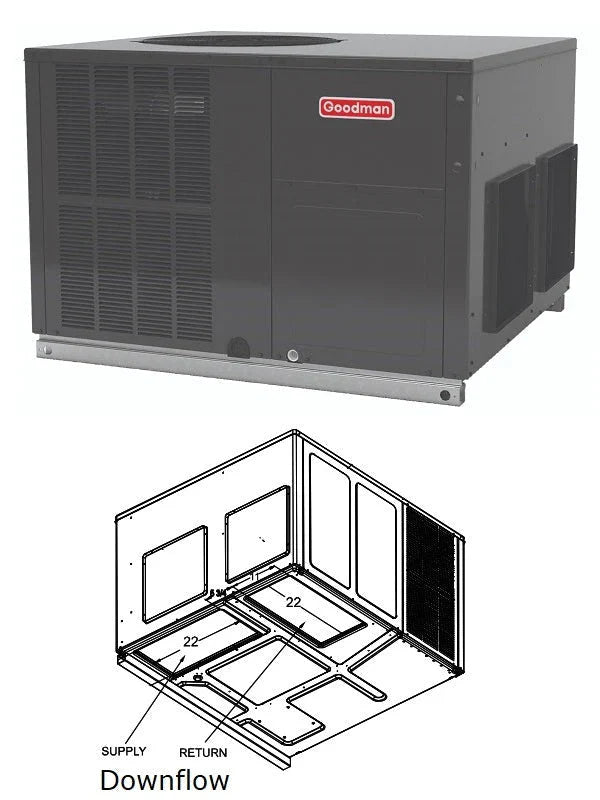

Horizontal or downflow application

Compressor sound blanket

Convenient access panels

One roof curb fits all units

Fully insulated cabinet

Bottom, 2” high base rails for easier handling

When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds

Class: Packaged Gas/Electric/Dual

Compressor Stages: Single Stage

Compressor Type: Scroll

Cooling Capacity Rated: 28600

Unit Depth: 51

Unit Height: 32

Unit Width: 47

Family Description: Packaged Gas / Electric Units, 13.4 SEER2 / 81% AFUE, 2 to 5 Tons

Heating Capacity Rated: 60000

High-Fire Input Capacity: 60000

High-Fire Output Capacity: 48600

Min. Circuit: 22.8

Model Efficiency: 13.4 SEER2

Motor Speed Type: Multi Speed ECM

Power Frequency: 60

Power Phase: 1

Power Voltage: 208/230

Product Benefits: Meets the 2023 M1 Test Standards

Category: Packaged Gas/Electric/Dual

Family: GPGM3

Prop65 Label Required: TRUE

Refrigerant: R-410A

Tonnage: 2.5 tons

Unit Type: Outdoor

Unit Weight: 417
